Solar Turbines, Titan 250, 2017, Natural Gas Turbine, 22.37 MW, 30000 HP

Name: Solar Turbines, Titan 250, 2017, Natural Gas Turbine, 22.37 MW, 30000 HP
Brand: Solar Turbines
SKU: TT-3851
Availability: SoldOut

‹ Go Back Next Product ›

Sold

Description

Overview

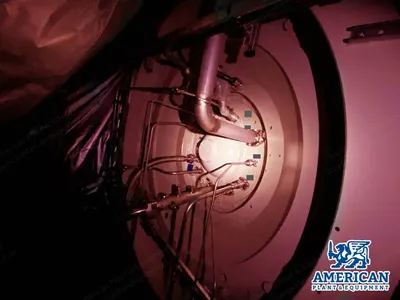

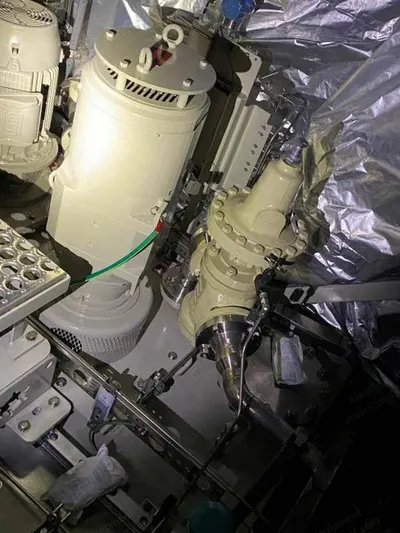

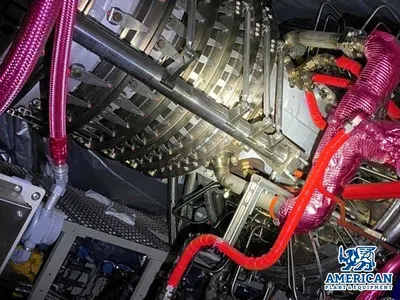

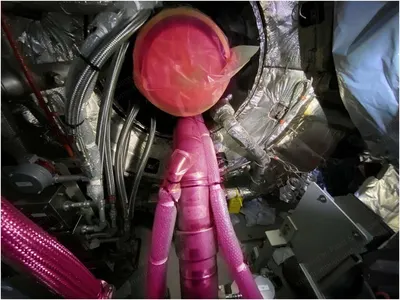

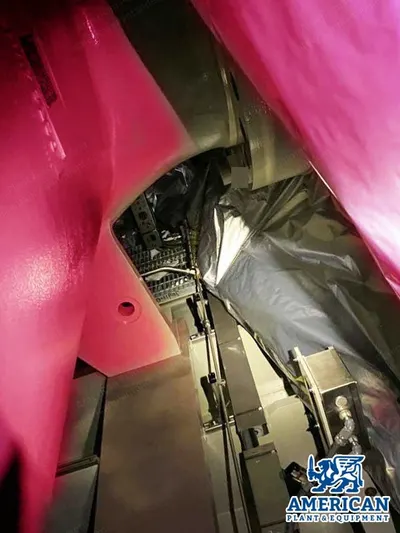

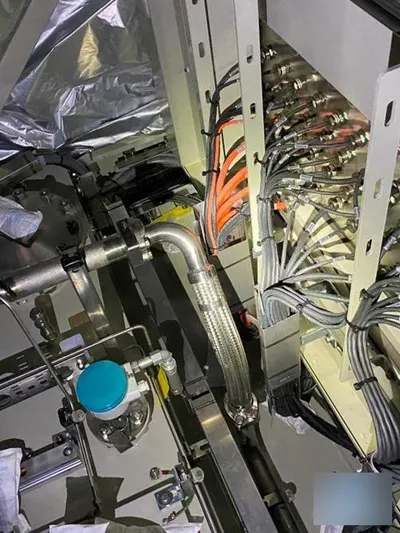

1. Turbine only: 22.37 MW, 30,000 hp Solar Turbines Titan 250 package.
2. New and never-used surplus opportunity.

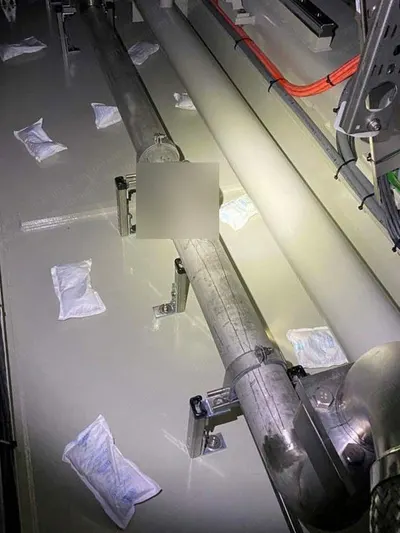

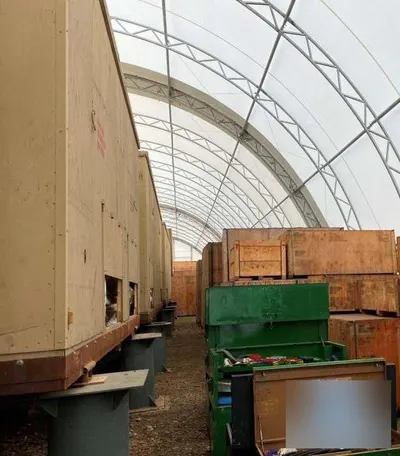

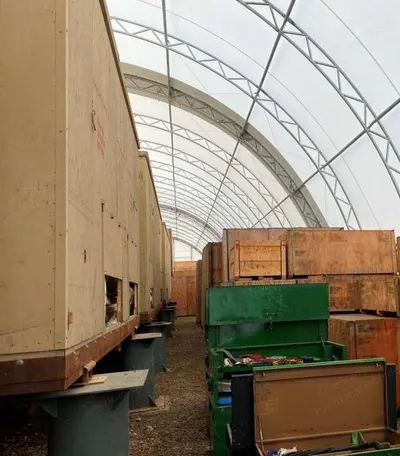

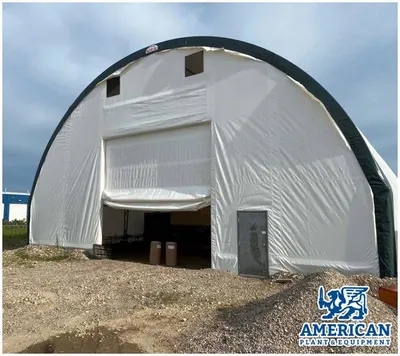

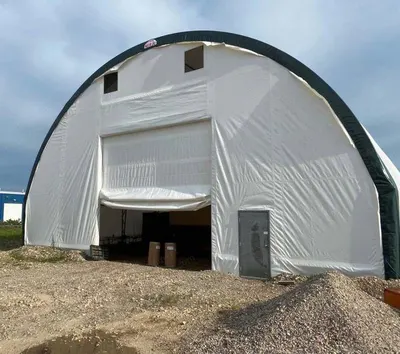

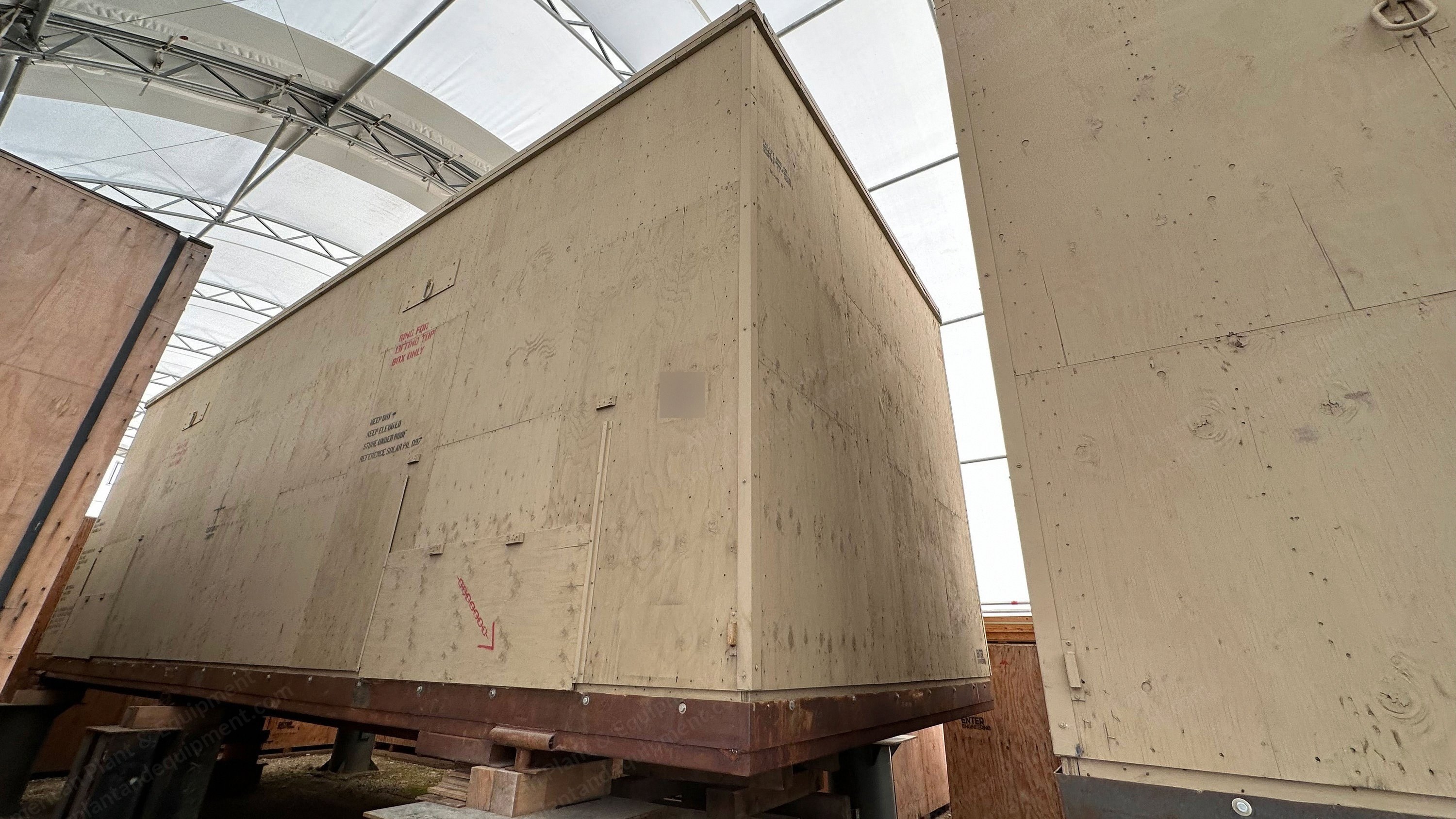

3. Inspected in fall 2020 by Solar Turbines and again in 2022 by the OEM service company; both verified good condition and proper preservation in sealed containers within a building.
4. Based on proven technologies from other Solar Turbines models.
5. Produces 50 percent more power in the same footprint as the Titan 130, with 40 percent shaft efficiency and emissions reduced by up to 30 percent.
Specifications
1. Year manufactured: Solar Turbines 2017.
2. Driver: Solar Turbines Titan 250 natural gas turbine, version 30002S CS/MD.
3. Maximum horsepower: 30,000 hp.
4. Rated rpm: 10,500 rpm.
5. Control panel: Solar Turbotronic CTLM02.
Condition
1. New and never used.
2. Status: disconnected; preservation inspection performed in fall 2020 and another in 2022.
Included Components

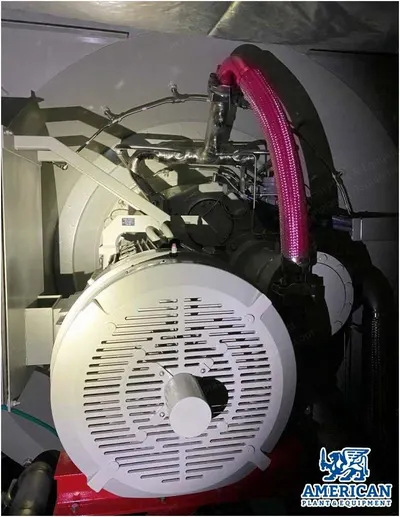

1. 1 Titan-250 compressor set (turbine).
2. 8 cart, roll-out.
3. 9 tool, lift, single point, engine.
4. 10 inlet guide vane gage.
5. 11 flowmeter, 0-20000 pph; alignment tool; Makloc arrestor; flame bracket, hood, sun; dial indicator kit power supply, 50/60 Hz, 76.8 W, 1; O-ring, SAE 387, 18.0 ID, Viton; O-ring, SAE 465, 18.0 ID, Viton; O-ring, SAE 390, 21.0 ID, Viton; O-ring, SAE 461, 16.0 ID, Viton; instl/removal plate; shipping box; kit, instl, engine, T250; interface HW kit; kit, LS, GF, fltr, FF7025; exhaust system, T250; kit, LS, inlet, flex, unencl; kit, instl, disp, aux, TT4000; kit, instl, disp, remote, TT5000; item 39 Makloc kit, LS, cmpsr, transmitter; kit, LS, flame arrestor; kit, LS, flame arrestor; kit, LS, consumables, consumables; kit, LS, hardware, separator; kit, LS, hardware, OL, OC; kit, LS, hdwr, filter, coalescer; kit, LS, printer, 120 VAC, 60 Hz; kit, maint, fuse, 2 amp-20 amp; kit, shim, engine, loose ship.
6. 12 kit, LS, in-situ, repair.SLNX.
7. 13 tool, pres jack screw, align; tool, eng removal screw assy.
8. 14 kit, anchor, package, w/stud assy.
9. 2W cooler, air to oil.
10. 3W demister, oil.
11. 8W exhaust system, Titan 250 transition.
12. 9W exhaust system, Titan 250 silencer.
13. 10W exhaust system, Titan 250 silencer.
14. 13W exhaust system, Titan 250 duct.
15. 14W exhaust system, Titan 250 duct w/ports.
16. 15W exhaust system, Titan 250 duct w/ports.
17. 12W exhaust system, Titan 250 base section.
18. 24W inlet system, Titan 250 elbow.
19. 30W inlet system, Titan 250 air filter unit.
20. 31W inlet system, Titan 250 air filter unit.
21. 11W exhaust system, Titan 250 expansion joint.
22. 27W inlet system, Titan 250 transition.
23. 5W duct, exh, transition.
24. 25W inlet system, Titan 250 duct.
25. 32W inlet system, Titan 250 duct.
26. 22W inlet system, Titan 250 silencer.
27. 1W cart, cleaning.
28. 7W filter, gas fuel, simplex.
29. 4W bellows; set, blanket exh bellows.
30. 6W duct, inlet, flex, 23.47.
31. 16W exhaust system, Titan 250 support structure; exhaust system, Titan 250 hardware kit; exhaust system, Titan 250 bolt kit.
32. 28W inlet system, Titan 250 control box.
33. 29W inlet system, Titan 250 control box.
34. 17W exhaust system, Titan 250 F.G. insulation blanket.
35. 19W inlet system, Titan 250 structure.
36. 18W exhaust system, Titan 250 F.G. insulation blanket.
37. 20W inlet system, Titan 250 structure; inlet system, Titan 250 hardware kit; inlet system, Titan 250 hardware kit.
38. 21W inlet system, Titan 250 pneumatic kit.
39. 26W inlet system, Titan 250 transition.

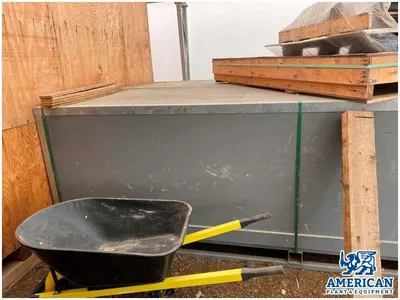

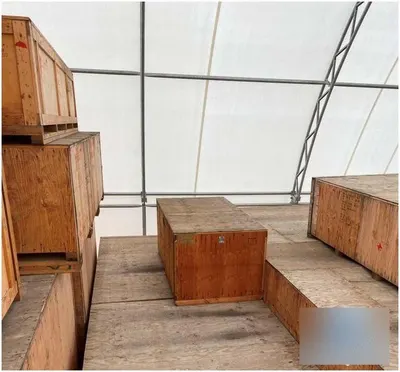

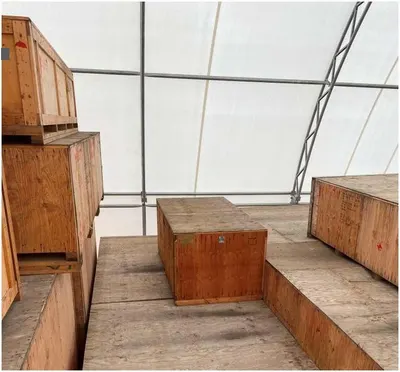

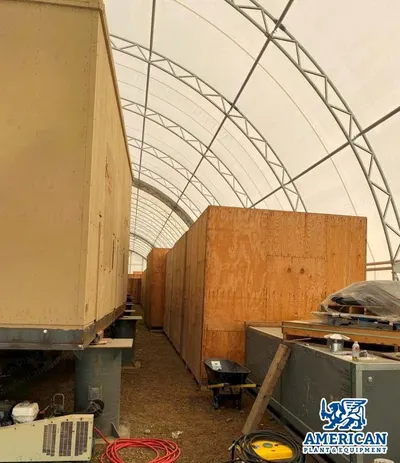

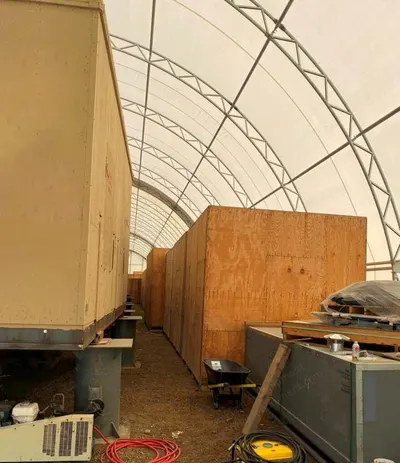

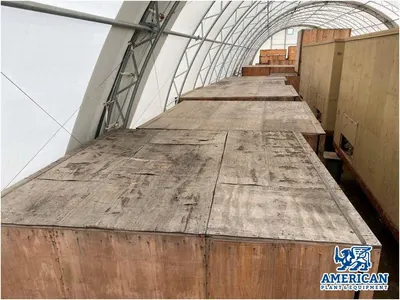

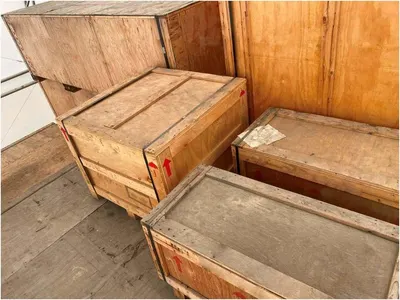

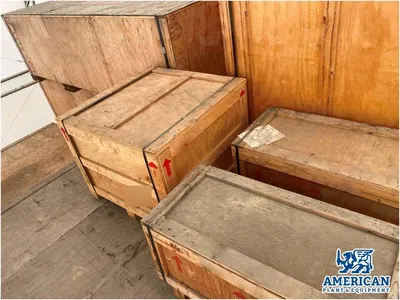

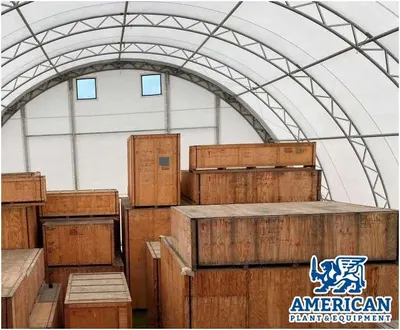

40. Scope of supply: turbine only with about 41 crates of support gear including inlet and outlet ducting.
