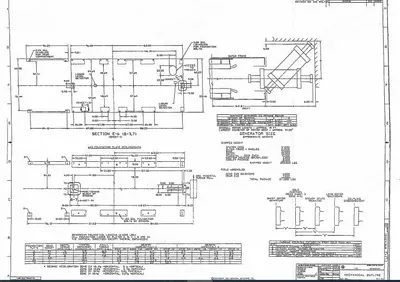

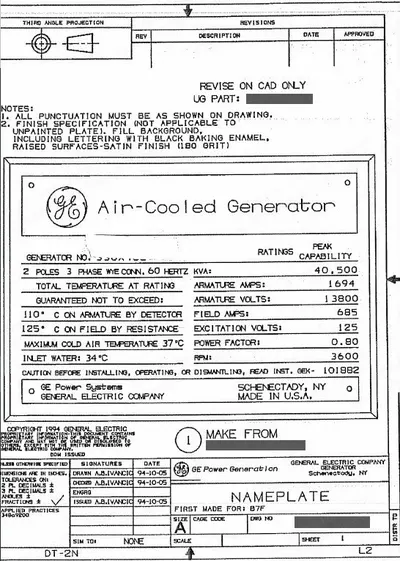

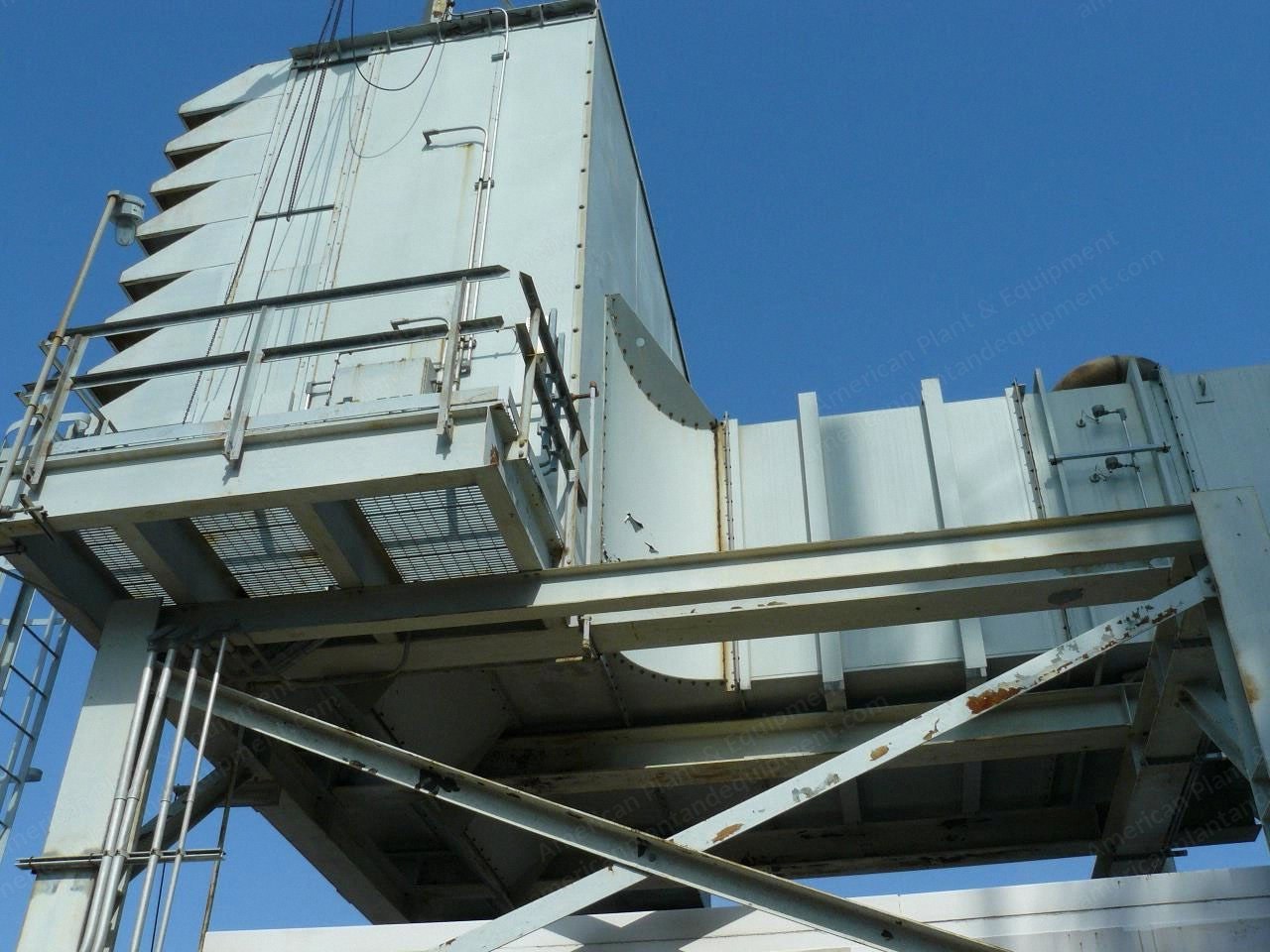

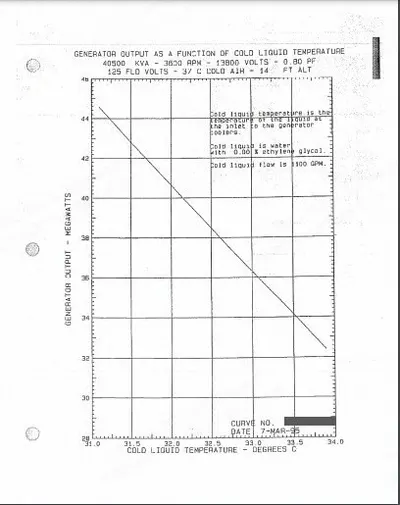

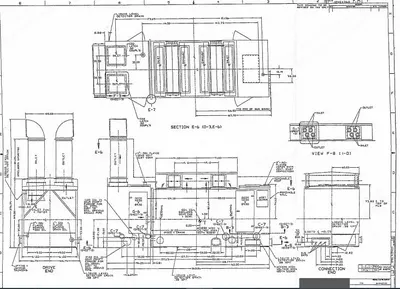

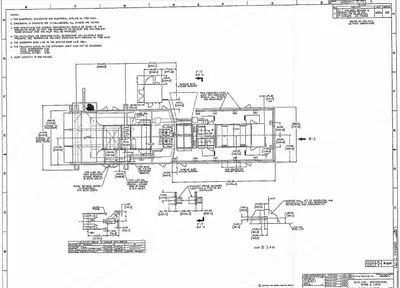

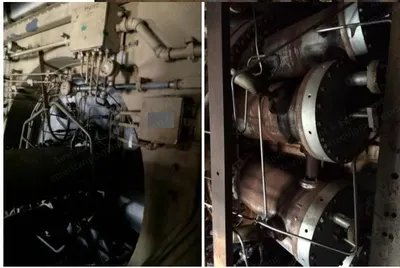

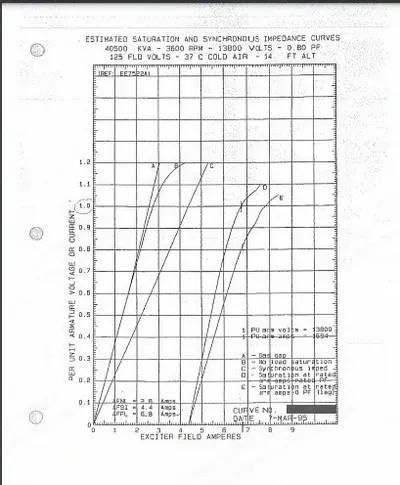

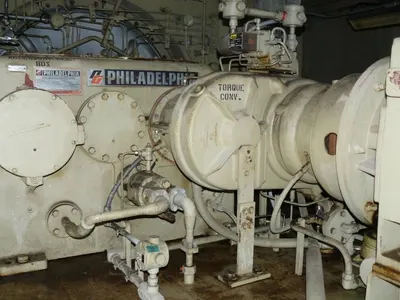

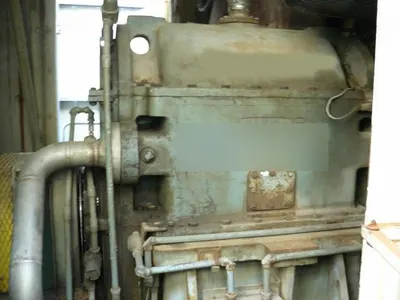

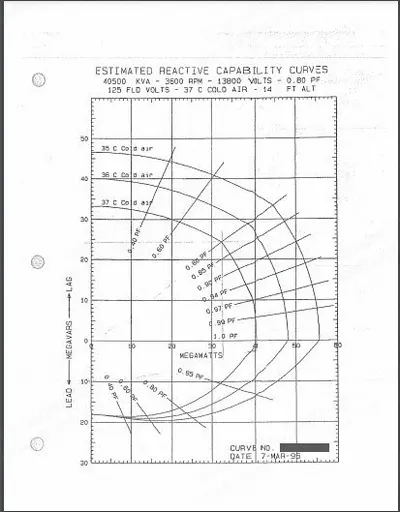

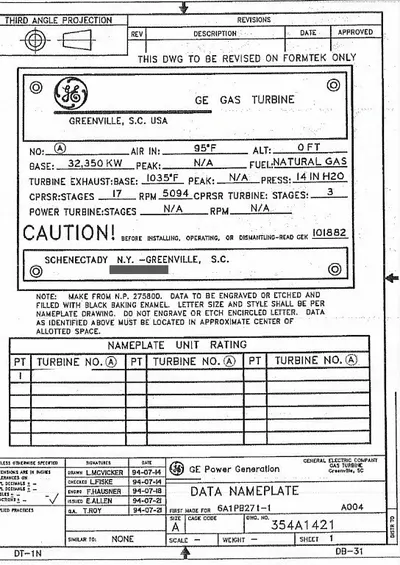

Description Overview General Electric frame 6b gas turbine generator set Ge model 6541b gas turbine, natural gas, dln1 Base rated 32,350 kw Heat rate at iso 10,860 btu/kwh, 5100 rpm Side exhaust to hrsg Enclosure outdoor housed Specifications Motor start ge 600 hp, 3570 rpm, 460 v frame 509dz, model 5k509jn1056 Philadelphia accessory gear box with atomizing air compressor Philadelphia load gear hp rating 68391 model s664a model 224h0l-a, input 5094 rpm Output 3600 rpm Ge tewac generator rated 40,500 kva, 13800 v, 3 phase, 60 hz, pf: 0.9, 1694 amps, 125 v exciter volts, field amps 778, 3600 rpm History Year built: 1995, year shutdown 6/1/2011 Life time starts/hours: 378/83082 Last overhaul: 2009, hours since last overhaul: 17,000 Scope Of Supply One ge frame 6b gas turbine 32350 kw, natural gas fired, dln1 Complete skid with starting motor, accessory gear reducer with enclosure One generator ge, 40,500 kva, 13800 v, 60 hz, tewac, with brushless exciter and enclosure One natural gas control skid and piping between skid and gas turbine One neutral ground resistor One generator terminal box Co2 system Air inlet system with air inlet duct supports Turbine exhaust terminated at expansion joint All manuals, history records, drawings belongs to this unit Terminal Points Cooling water pipes terminated at isolation valves close to skid All cables cut flat at cabinet bottom or top or at ground level Not Included Generator breaker and control and protection panel Mark v control panel Mcc Still installed
