Drillmec, SK801, 2012, 3000 HP Land Rig, 1000 Tons Static Hook Load, 5000m-7000m Drilling Depth

Drillmec, SK801, 2012, 3000 HP Land Rig, 1000 Tons Static Hook Load, 5000m-7000m Drilling Depth

Description

  1. Overview
    1. This specification covers the characteristics of the main components required for a drilling rig suitable to drill wells up to 5,000m-7,000m with 5” dp.
    2. The main components required for a drilling rig are in conformity with api standards.
    3. The hazardous areas classification is in accordance with api recommended practice 500 (rp-500).
    4. It will be certified for 2024.
    5. It will be delivered ready to work.
    6. It has a lot of equipment and tools.
  2. Rig Data And Equipment List
    1. Rig name: sk801.
    2. Rig type: 3000hp pcr-vfd drillmec land rig.
    3. Year built: 2012.
    4. Rig nominal drilling capability: 5,000m-7,000m with 5” dp.
    5. Total truck trips required to move the rig between locations: about 80 trucks.
    6. Average fuel consumption in normal drilling operation: 9,000-10,000 liters/day.

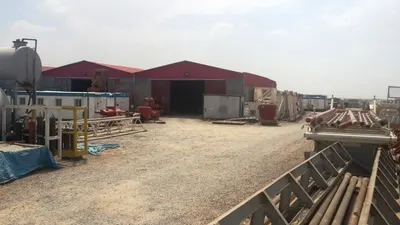

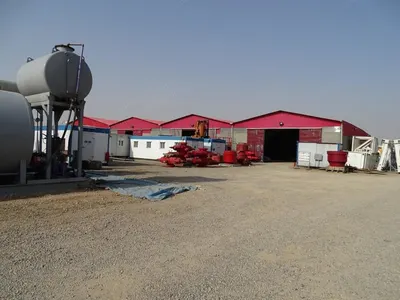

  3. Rig Storage Capacities

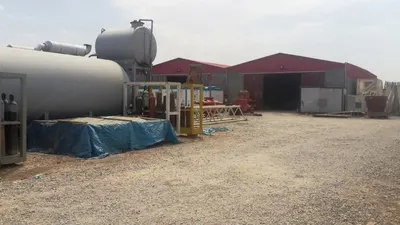

    1. Diesel fuel total storage tank capacity: 120m3 capacity.
    2. Diesel fuel storage tanks quantity: 2 each.
    3. Diesel fuel storage tank capacity of each: 60m3 + 60 m3.
    4. Diesel fuel transfer pumps: 2 each.
    5. Diesel fuel transfer pumps: centrifugal pump - explosion proof.

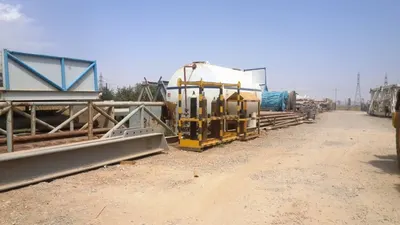

    6. Drilling water total capacity: 160m3.
    7. Drill water tanks quantity: 2 each (80m3 + 80m3).
    8. Drill water transfer pump: 2 each.
    9. Drill water transfer pump: centrifugal pump - explosion proof.
    10. Liquid mud total capacity: 520m3 (3270bbls) total capacity.
    11. Liquid mud tank quantity: 7 each.
  4. Power Supply System

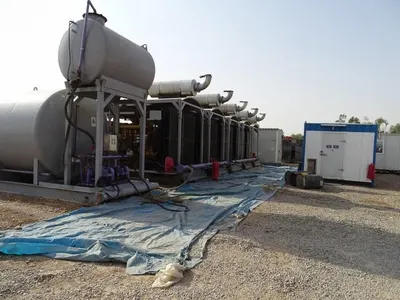

    1. Diesel engine/generator sets: 5 sets.
    2. Brand: caterpillar 3512b dita-scac.
    3. Continuous power of each set: 1600 hp (1200kw) maximum power.
    4. Total continuous power: 5 x 1600hp each maximum power.
    5. Diesel engine quantity: 5.
    6. Make and type: caterpiller, cat3512b dita-scac.
    7. Diesel engine mufflers with spark arrestor: yes.
    8. A.c. electric generators quantity: 5 sets.
    9. Make and type: usa, sr4b.
    10. A.c. generator maximum power: 1900 kva.
    11. A.c. generator output voltage: 600vac.
    12. A.c. generator frequency: 50hz.
    13. Brand: drillmec.
    14. System description: the system will be designed to control five (5) diesel-electric generator sets in parallel, and ten (10) ac drilling motors.
    15. Electric transformers quantity: 2 each (1 each for mcc 600/400v + 1 each for lighting 600/120 (208) v).
    16. Electric transformers brand: drillmec.
    17. E. transformer output voltage: 600/400v.
    18. Electric transformer frequency: 50 hz.
  5. Power Plant For Third Party
    1. Power available: 100-200kva as required.
    2. Output voltage: 400.
    3. Output ampere: 100.
  6. Electrical Lighting System
    1. Lighting around well location: 4 each lamps.
    2. Lighting around well location: explosion proof.
    3. Lighting around shale shaker: 3 each lamps.
    4. Lighting around shale shaker: explosion proof.
    5. Lighting on mud tanks: 12 each fluorescent lamps.
    6. Lighting on mud tanks: explosion proof.
    7. Lighting around mud pumps: 3 each fluorescent lamps.
    8. Lighting around mud pumps: explosion proof.
    9. Lighting around pipe rack: 2 each fluorescent lamps.
    10. Lighting around pipe rack: explosion proof.
    11. Lighting on rig floor: 6 each fluorescent lamps.
    12. Lighting on rig floor: explosion proof.
    13. Lighting along the mast: 20 each fluorescent lamps.
    14. Lighting along the mast: explosion proof.
    15. Lighting on monkey board: 2 each fluorescent lamps.
    16. Lighting on monkey board: explosion proof.
  7. Electrical Safety Device
    1. Emergency shutdown button for ac motors and generators: yes.
    2. Emergency shutdown button location: driller's cabin, vfd house and engines.
  8. A.c. Emergency Power Generator
    1. Diesel engine brand: cat3406 or equivalent.
    2. Diesel engine continuous power: 365kva (390hp).
    3. Diesel engine mufflers with spark arrestor: yes.
    4. A.c. generator output voltage: 400v.
    5. A.c. generator frequency: 50hz.
  9. Rig Air Service
    1. Quantity: 2 sets.
    2. Make-type: ingersoll rand and electric rotary screw air compressor.
    3. Driven by motor power: 45 hp.
    4. Max. flow rate capacity: 95 l/s.
    5. Max. service pressure: 9.8-10bar.
    6. Quantity: 2 each.
    7. Air vessel capacity of each: total capacity is 2000l.
    8. Air vessel location: one at power house and one in substructure.
    9. Make drillmec.
    10. Air driers flow rate capacity: 95 l/s.
    11. Max. service pressure: 9.8-10bar.

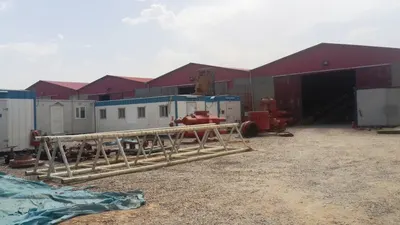

  10. Hoisting And Rotating Equipment

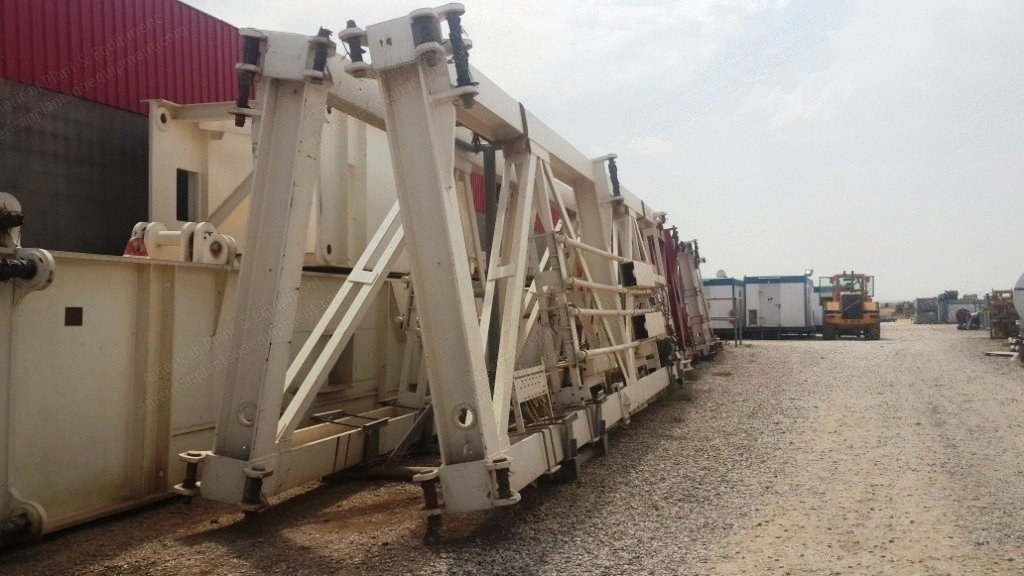

    1. Make and type: drillmec and high raised floor beam leg cantilever mast, open face.
    2. Built as per api standard: api 4f.
    3. Clear height of mast: 160ft.
    4. Max. lines on traveling block: 16 lines.
    5. Dimensions of top of mast: 2500mm / 2200mm.
    6. Dimensions of base of mast: underside span is 30ft.
    7. Ladders with safety cages: yes.
    8. Red lights on top of mast: yes.
    9. Racking platform brand: drillmec.
    10. Racking platform capacity of 5 1/2” dps: 286 stands.
    11. Racking platform capacity x d.c range: 12 stands of 8 1/4” dc.
    12. Height from rig floor: from 85ft to 87ft.
    13. Racking platform suitable for dp range: 3 1/2”-5” dp-5 1/2” dp.
    14. Racking platform suitable for dc range: 11”dc to 3-1/8”dc.
    15. Casing stabbing board make and type: drillmec and pneumatic driven casing stabbing board.
    16. Stabbing board adjustable range: from 30ft to 52ft.
    17. Substructure make-type: drillmec and substructure is designed into two section, setback and drawwork section.
    18. Substructure built as per api standard: api 4f.
    19. Api rated setback capacity: 500 tons (1,000,000lbs).
    20. Api rated rotary load capacity: 1000 tons (2,000,000lbs).
    21. Api rated simultaneously load capacity of setback and rotary: 1500 tons (3,000,000lbs).
    22. Rotary table static load capacity: 650 tons (1,300,000lbs).
    23. Rig floor dimensions: 48ft (14.6m) x 46ft (14.02m).
    24. Rig floor height from ground level: 40ft (12.19m).
    25. Clear height between rotary beams and ground level: 33ft (10.11m).
    26. Rig floor drains collecting system: drip pan under rotary table.
    27. Drains discharging to: waste pit.
    28. Dimensions l-w-h: 9000mm x 2800mm x 2800mm.
    29. Make and type: drillmec and crown block.
  11. Technical Specifications
    1. Max. load considering max. no. of lines installed: 1 mast, static hook load: 1000 tons (2,000,000lbs).
    2. With max. number of lines: 16 lines.
    3. Crown block rated load capacity: 1000 tons (2,000,000lbs).
    4. Travelling block rated load capacity: 1000 tons (2,000,000lbs).
    5. Hook block rated load capacity: 750 tons (1,500,000lbs).
    6. Swivel rated load capacity: 750 tons (1,500,000lbs).
    7. Top drive rated load capacity: 750 tons (1,500,000lbs).
    8. Raking platform rated load capacity: 286 stands of 5 1/2” dps.
    9. Set back rated load capacity: 500 tons (1,000,000lbs).
    10. Rotary table static load capacity: 650 tons (1,300,000lbs).
    11. Drilling line breaking strength: 220,000lbs.
    12. Dead line anchor line pull capacity: 150,000lbs.
