Jenbacher, JMS 624 GS-NL, 2012, Gas Genset, 4.4 MW, 50 Hz, 6600 V

Jenbacher, JMS 624 GS-NL, 2012, Gas Genset, 4.4 MW, 50 Hz, 6600 V

Description

  1. Overview

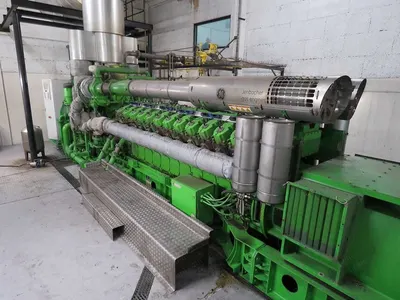

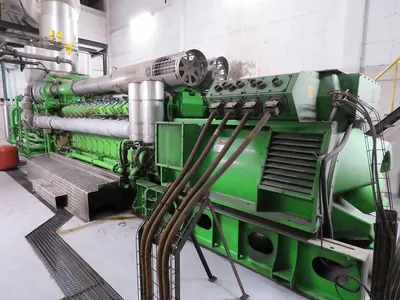

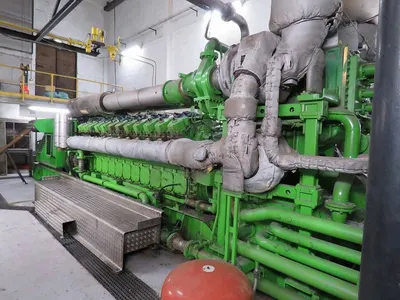

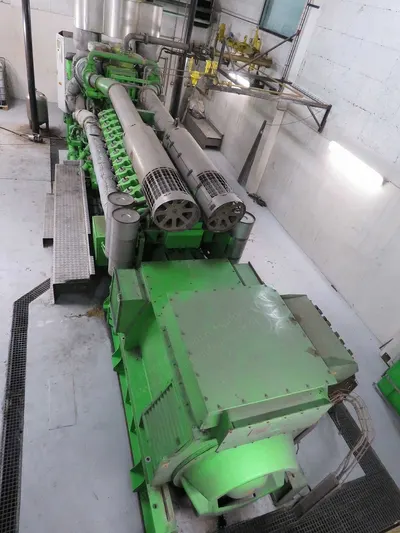

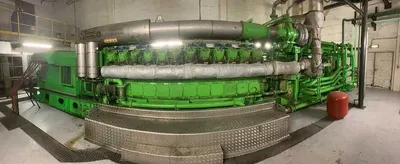

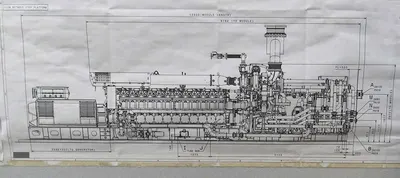

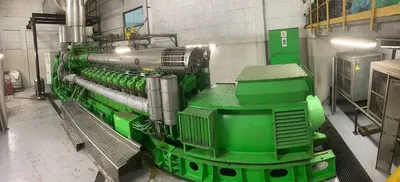

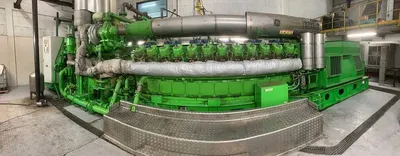

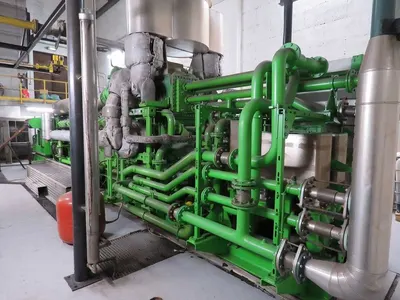

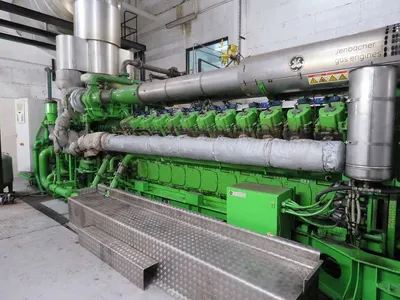

    1. Jenbacher gas motor type JMS 624 GS-NL
    2. Year 2012
    3. Total running hours approximately 45,000 (approximately 5,000 starts)

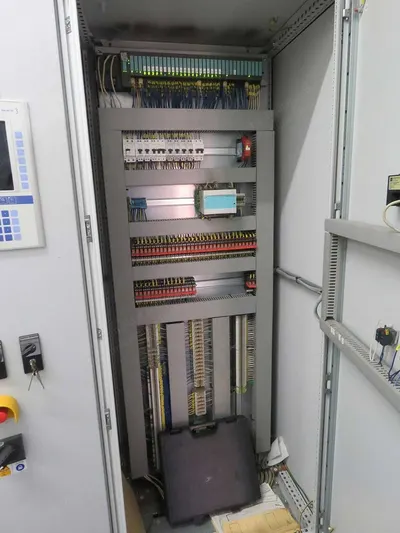

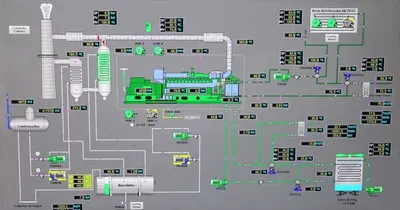

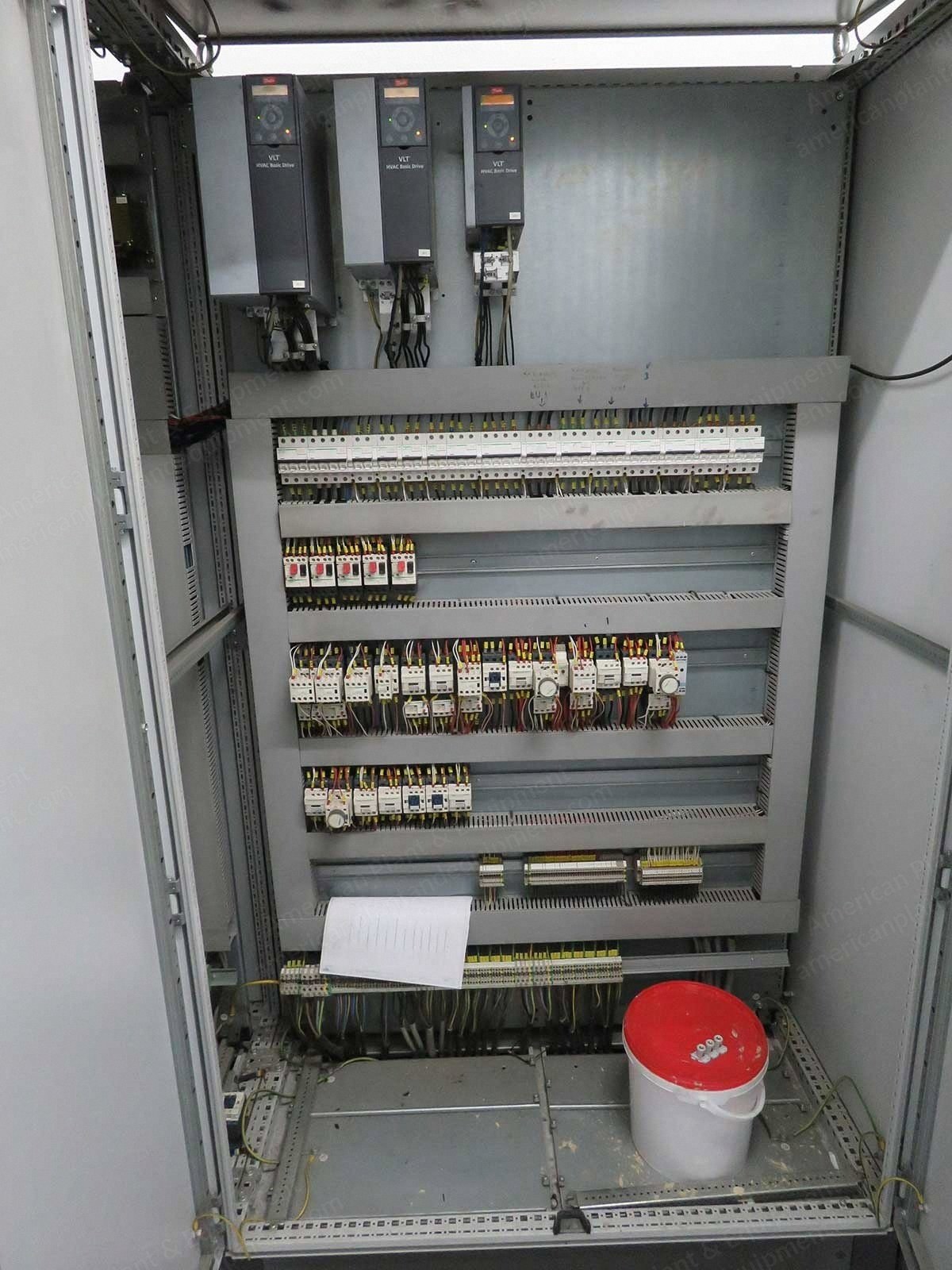

    4. Installation supplied with auxiliaries and electrical panels ready to work
  2. Specifications
    1. Power: 4.4 MW (4,400 kW)
    2. Rated power: 4,401 kW (4.4 MW)
    3. Rated frequency: 50 Hz
    4. Rated voltage: 6,600 V
    5. Rated current: 385 A
    6. Speed: 1,500 rpm
    7. 24 cylinders
    8. Bore: 190 mm x stroke: 220 mm
  3. Generator and transformer

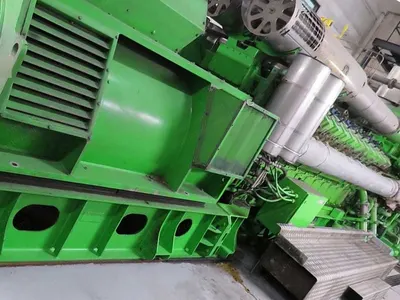

    1. AVK generator/alternator type DIG 142 1/4

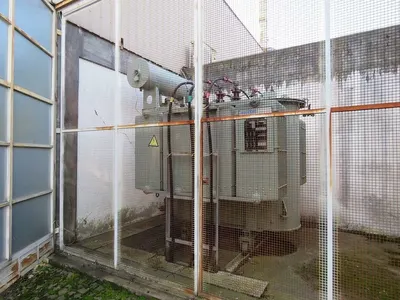

    2. ABB / Diestre transformer type DOC 5.500/17.5 to transform the output tension of the generator to 15,000 V

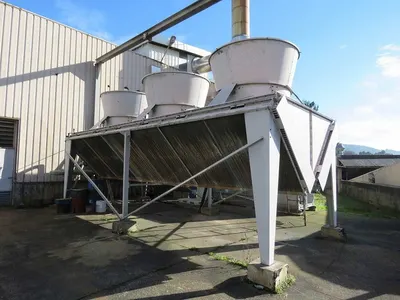

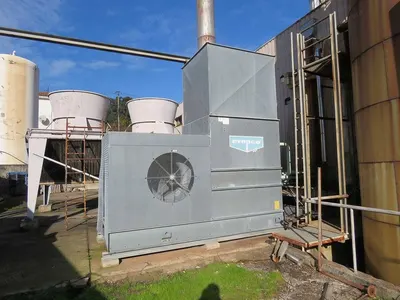

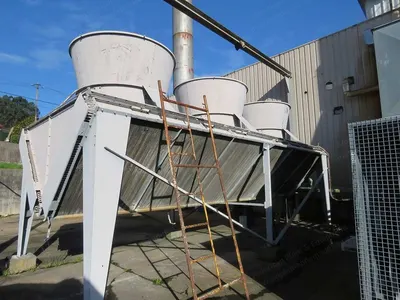

  4. Chillers

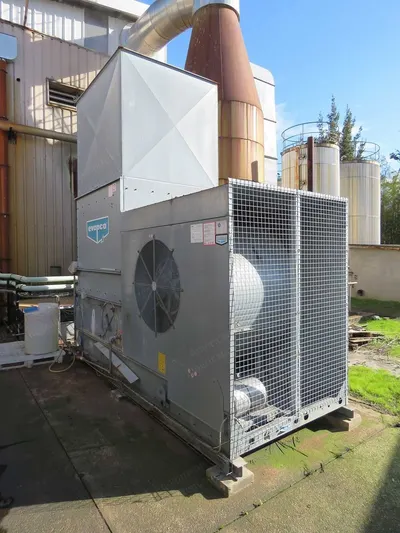

    1. Evapco chiller type LRW 30-5H
    2. Luwa chiller type EKV 7676/1824-4/2-2/2
