Uteco, Onyx 876, 2014, 8 Colors, 1300mm Print Width, Gearless Flexo Press

Uteco, Onyx 876, 2014, 8 Colors, 1300mm Print Width, Gearless Flexo Press Sold

Description

  1. Overview
    1. Uteco Onyx 876 gearless flexo press
    2. Year 2014
    3. 8 colors
    4. Print possibilities: 8+0
    5. Gearless: yes
    6. Fast sleeve change: yes
    7. 4 motor per deck CNC position system: yes
    8. Computer supervision: yes
  2. Specifications
    1. Print width: 1300 mm
    2. Min print repeat: 330 mm
    3. Max print repeat: 800 mm

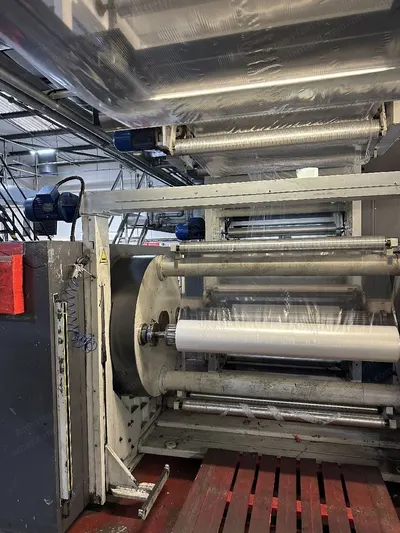

    4. Unwinder type: automatic turret
    5. Max reel diameter unwinder: 1000 mm
    6. Rewinder type: automatic turret
    7. Max reel diameter rewinder: 1000 mm
    8. Web width mm: 1350
  3. Drying System

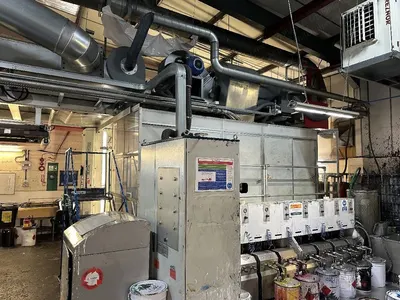

    1. 2 drying zones, 4 fans, 5 mt final tunnel, 2 gas burners, automatic air recirculation with LEL
  4. Inspection and Control

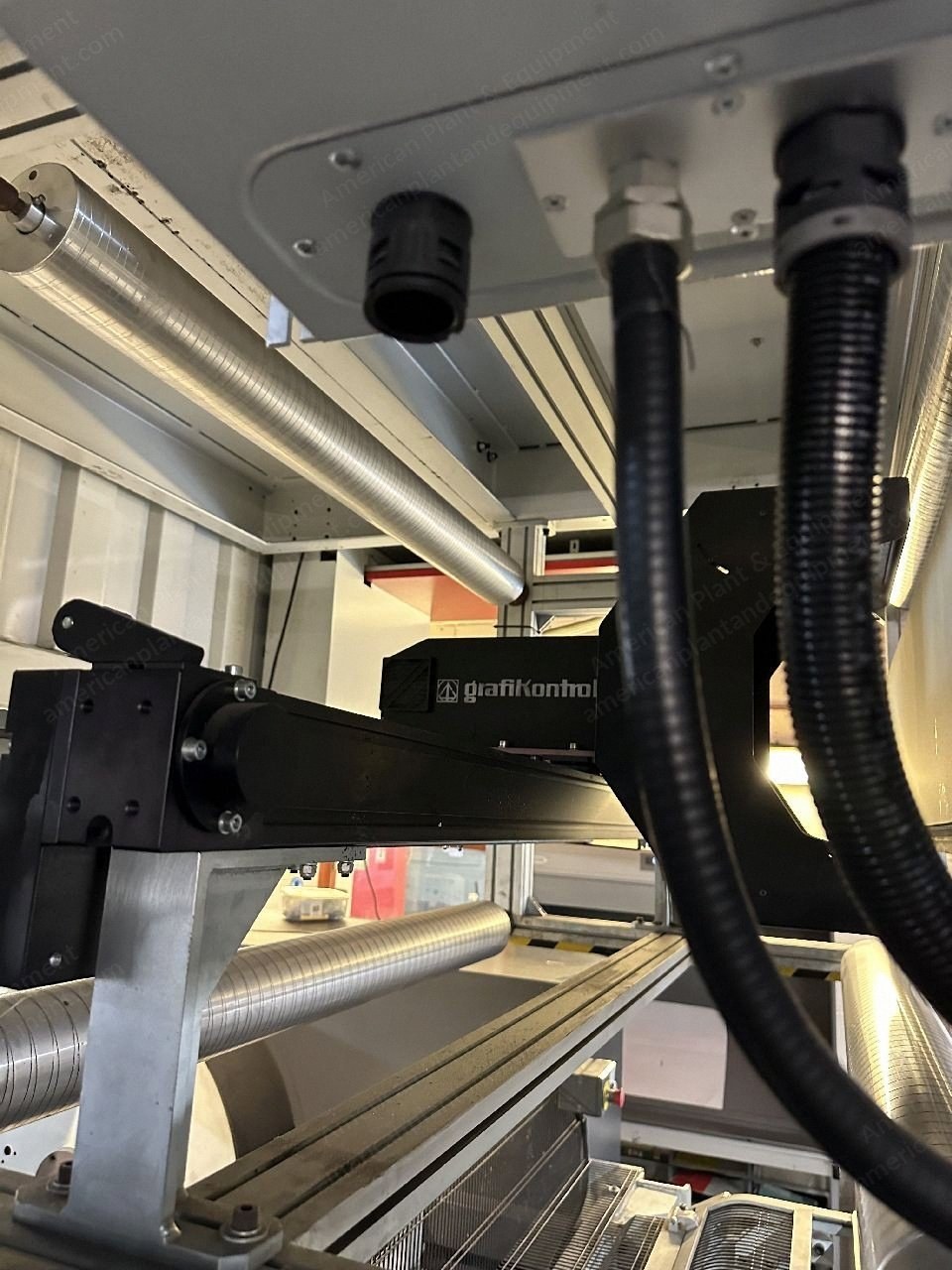

    1. Videocamera: yes, Grafikonrol with defect control, 3 chip camera + 100% inspection
    2. Viscosity control: yes, Gama
  5. Inking and Washing
    1. Washing system: auto clean
    2. Inking system: solvent-water based
  6. Included Components
    1. Anilox: 23
    2. Print sleeves: 111
