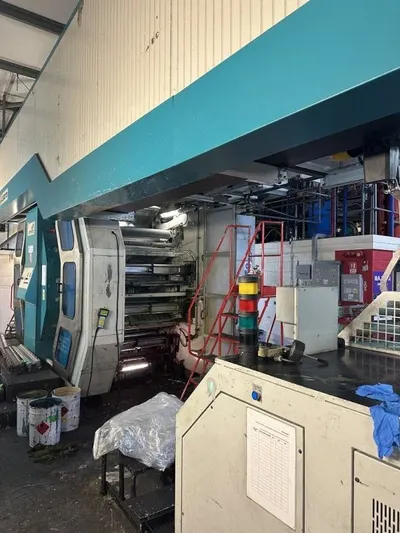

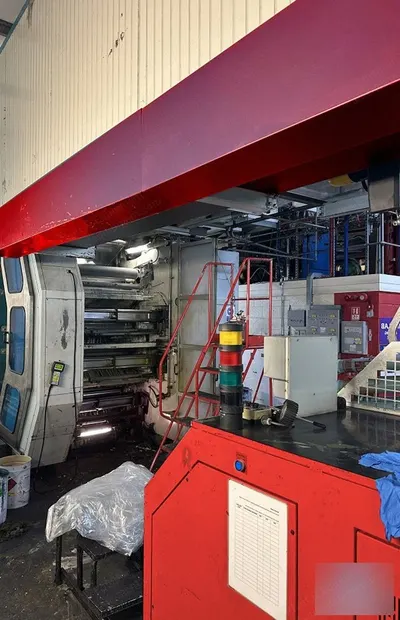

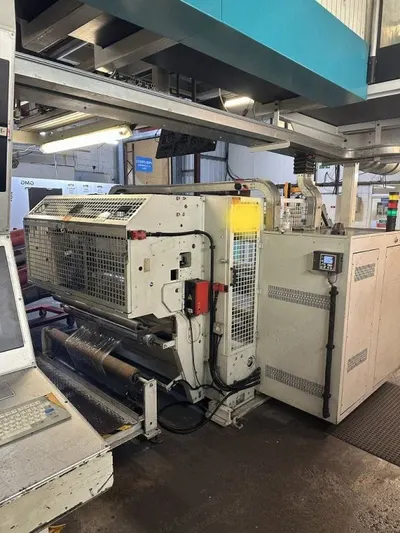

Uteco, Emerald 825, 2007, Gearless Flexo Press, 8 Colors, 1200mm Print Width

Uteco, Emerald 825, 2007, Gearless Flexo Press, 8 Colors, 1200mm Print Width Sold

Description

  1. Overview
    1. Uteco Emerald 825 gearless flexo press
    2. Year 2007
    3. 8 colors
    4. Print width 1200 mm
    5. Gearless: yes
    6. Fast sleeve change: yes
    7. 4 motor per deck CNC position system: yes

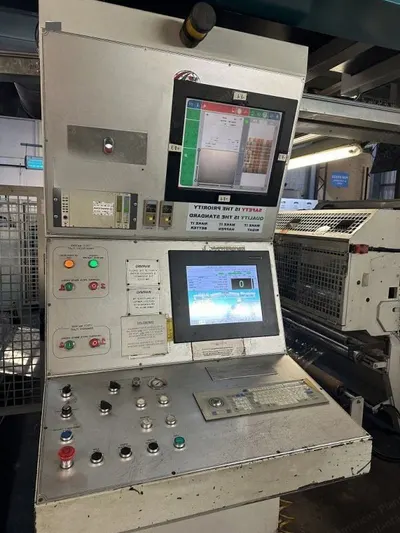

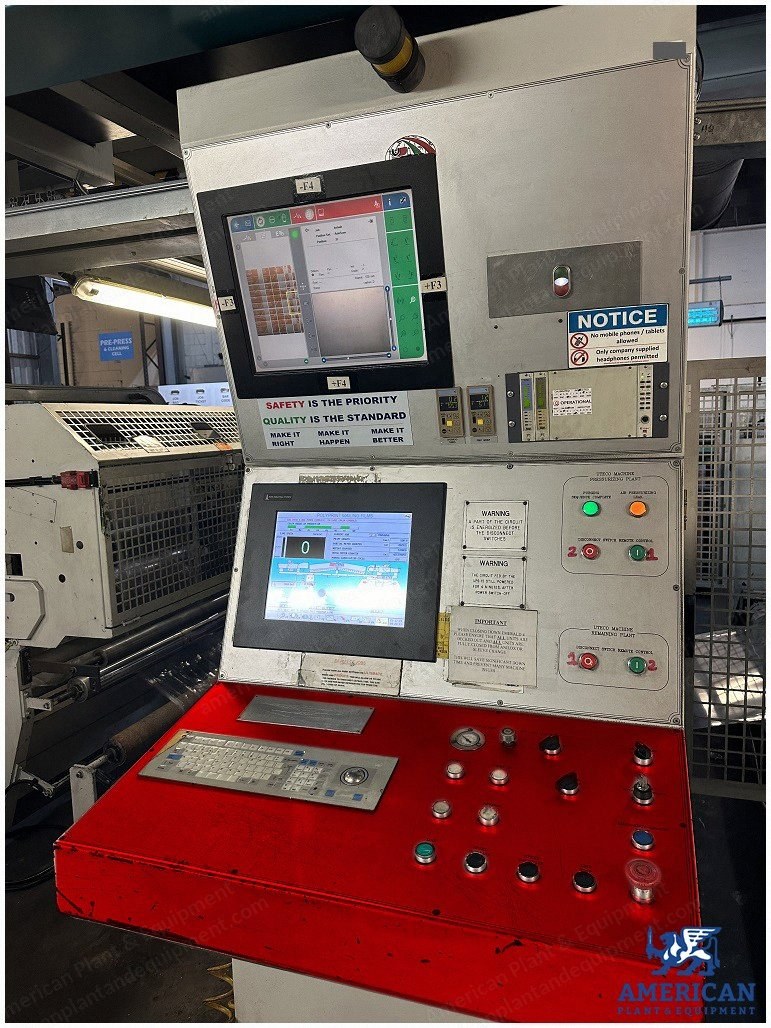

    8. Computer supervision: yes
  2. Specifications
    1. Minimum print repeat: 330 mm
    2. Maximum print repeat: 800 mm

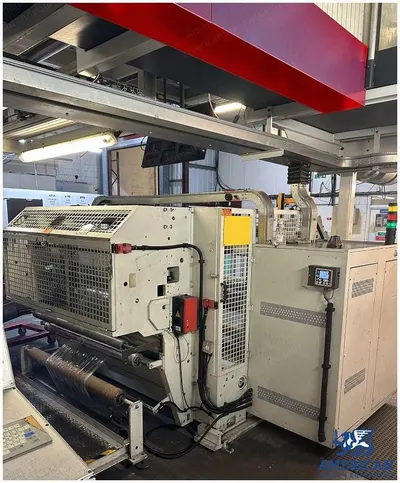

    3. Unwinder type: turret
    4. Maximum reel diameter unwinder: 800 mm
    5. Rewinder type: turret
    6. Maximum reel diameter rewinder: 800 mm
    7. Web width: 1250mm
    8. Mechanical speed: 365 m/min
  3. Drying System
    1. 2 zones, 4 fans, 2 gas burners
    2. Drying tunnel: total heat 216 kW, air speed 35 m/s, 6 m length, in blow fan 10000 Nm3/h, outflow 1200 Nm3/h
    3. Between color drying: total heat 118 kW, air speed 35 m/s, in blow fan 6900 Nm3/h, outflow 8300 Nm3/h
  4. Inking and Inspection
    1. Videocamera: BST with defect control
    2. Inking system: closed chamber doctor blades
  5. Included Sleeves
    1. 16 ceramic anilox sleeves
    2. 116 print sleeves
