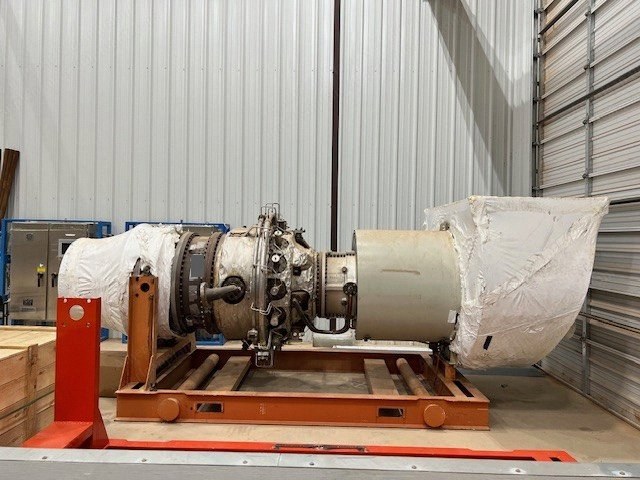

Solar, Mars 90, 2011, 9.690 MW, Gas Turbine Engine

Description

Overview
1. Solar Mars 90
2. Used
3. Engine and power turbine (no generator)
4. Rebuilt year 2011 in a certified Solar facility
5. Engine only – no generator
6. Model: EM132S-S5G00M0P Mars 90S
7. Version: T-13000 tested as T-12000
8. Combustion type: Solonox gas fuel
9. The engine is derated T-13000 to T-12000 for HP emissions compliance; added HP changes permits
10. Engine ID: E = exchange, M = Mars, 13 = built as 13000 version, 2 = split shaft, S = Solonox
11. No pump
12. No borescope available
Specifications
1. Power output: 9.450 MW / 9.690 MW
2. Efficiency: 31.9% / 33.2%
3. Heat rate: 11,300 kJ/kWh / 10,830 kJ/kWh
4. Pressure ratio: 16.3 / 16.3
5. Exhaust mass flow: 39.7 kg/s / 39.7 kg/s
6. Exhaust temperature: 465 °C / 465 °C
7. Turbine speed: 15,200 rpm / 15,200 rpm
Condition
1. Reported hours: 24,700 since last overhaul (a subsequent search reports 13,000 hours since last overhaul)
Included
