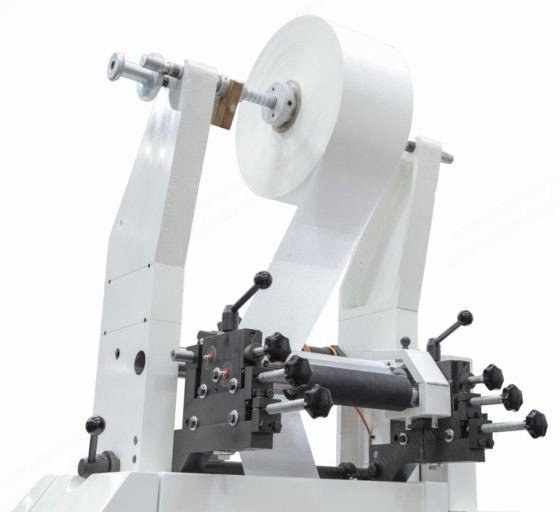

Garant, Triumph 2B, Paper and Plastic Bag Machine, Width 230mm, Roll Diameter 1300mm (New)

Description

Overview
1. The triumph 2b is a block bottom bag machine which is particularly well suited for the production of small format block bottom bags.
2. Garant has continuously developed the triumph 2b and optimally adapted it to the growing requirements of the market.
3. Its current equipment and the still exemplary robust design make the triumph 2b the most popular machine for the production of small-format block bottom bags even today.
Category
1. Paper/plastic bag machines
2. Subcategory: Block bottom bag making machines
Specifications
1. Bag width: 70 to 230 mm | 2.76 to 9.06 inches
2. Bottom width: 40 to 140 mm | 1.57 to 5.51 inches
3. Cut-off length: 200 to 470 mm | 7.87 to 18.50 inches
4. Roll width: max. 770 mm | max. 30.31 inches
5. Roll diameter: max. 1300 mm | max. 51.18 inches
Condition
1. New
Advantages
1. Robust construction
2. Simple operation
3. High productivity

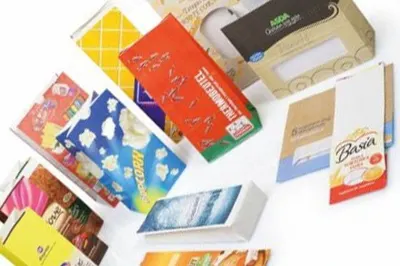

Application Examples
1. Industrial production
2. Flour and sugar production
3. Sweet packaging
Format Ranges
1. Bag width: 70 to 230 mm | 2.76 to 9.06 inches
2. Bottom width: 40 to 140 mm | 1.57 to 5.51 inches
3. Cut-off length: 200 to 470 mm | 7.87 to 18.50 inches
4. Roll width: max. 770 mm | max. 30.31 inches
5. Roll diameter: max. 1300 mm | max. 51.18 inches
Optional Additional Devices
1. Flat handle unit 9626 servo
2. Twisted handle unit sk servo
3. Inline printer
4. Servo window die cut unit
5. Bottom patch unit
6. Thumb hole unit
7. Feeding unit / cross pasting

Capacity	Bag width 70 to 230mm, Bottom width 40 to 140mm, Cut-off length 200 to 470mm
Category	Block Bottom Bag Making Machines

Max Roller Width	770 mm
