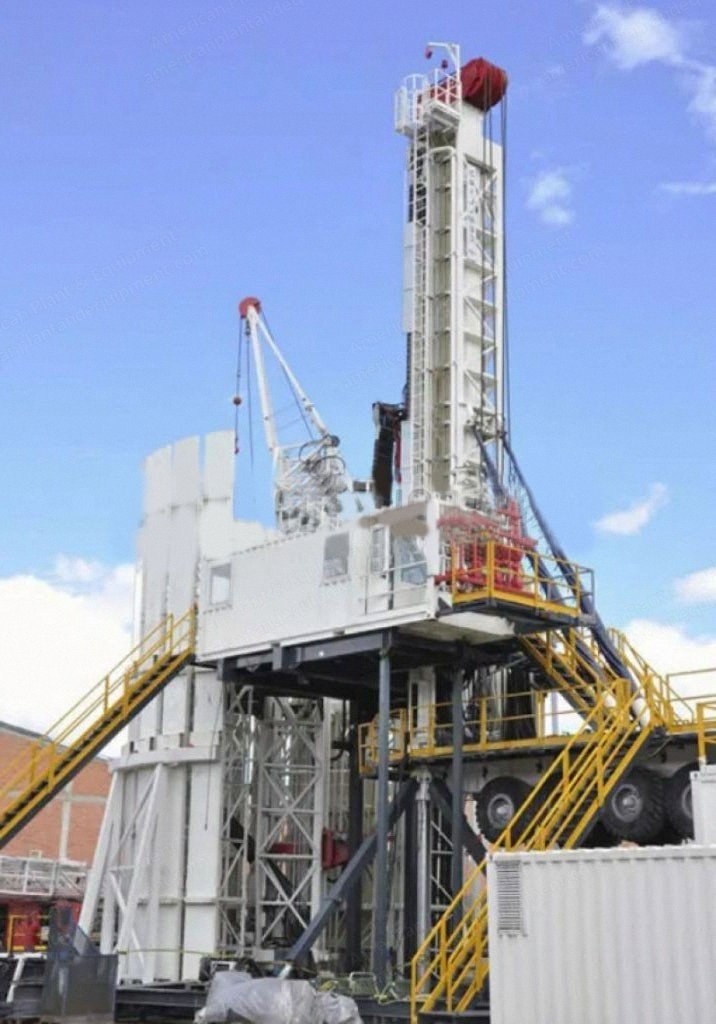

Drillmec, HH 300, 600,000 lbs Hook Capacity, 1500 HP Hydraulic Unit, Onshore Drilling Rig

Drillmec, HH 300, 600,000 lbs Hook Capacity, 1500 HP Hydraulic Unit, Onshore Drilling Rig Sold

Description

  1. Overview
    1. Drillmec HH 300 drilling rig
    2. Type: standard
    3. Brand: Drillmec
    4. Category: rigs
    5. Subcategory: onshore rigs
    6. In stock: yes
    7. Condition: used
  2. Carrier And Mast
    1. Carrier: Drillmec HH300, truck dual traction
    2. Telescopic mast: Drillmec telescopic mast raised and lowered by two chrome-plated double-acting hydraulic cylinders, 92 ft high
    3. Vertical pipe rack
  3. Hoisting And Hydraulic System
    1. Maximum static hook capacity: 600,000 lbs
    2. Hydraulic unit, rated input power 1500 hp
    3. Hydraulic auxiliary brake
    4. Pipe handler: automatic
  4. Power System
    1. Three Cat 3512 diesel engines, 1321 hp at 1200 rpm, each driving one generator SR4B 1000 kva
  5. Mud Pumps
    1. Three Drillmec TF-1000, 1000 hp triplex pumps, driven by dc electric motor
  6. Rotary Table And Substructure
    1. Rotary table: Drillmec hydr (27.5 in opening), independent motor, rated load capacity 400,000 lbs
    2. Substructure: Drillmec 22 ft high, 17 section pipe rack, rotary beams capacity 600,000 lbs
  7. Crown Block
    1. Drillmec with 8 x 42 in sheaves grooved for 1 5/8 in drilling line, rated load capacity 300 tons
  8. Blowout Preventer (Bop)
    1. Hydril GK 13 5/8 in x 5000 psi wp annular preventer
    2. Cameron 13 5/8 in x 5000 psi wp double rams
  9. Top Drive Drilling System
    1. Drillmec hydraulic M14V, 600,000 lbs hoisting capacity, 375 kw power drilling, hydraulic drive, drilling speed range 0 to 200 rpm, 36,140 lb/ft at 70 rpm
    2. Fully hydraulic allows higher safety and improved control of drilling parameters
  10. Power Tong And Electrical System
    1. Hydraulic power tong: Drillmec hydraulic power tong
    2. PCR: 3 x 3 IEC systems, 600 vac input, 0-750 vdc output
  11. Down Hole Tubular Material
    1. DP 5 in G105 R3 19.5 lb/ft
    2. DP 3.5 in S135 13.3 lb/ft
  12. Mud System
    1. Active system tank volume 1600 bbls (intermediate, suction, pill tank)
    2. One water tank 500 bbls
    3. One 500 bbls collecting fluids
    4. Three King Cobra shaker 500 gpm
    5. One mud conditioner
    6. One atmospheric degasser
