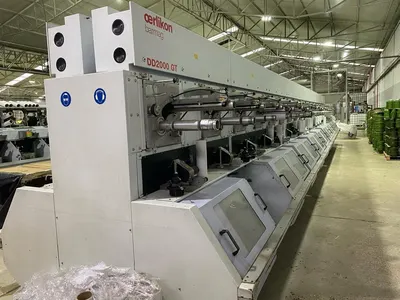

Barmag, DD2000 GI, 2010, Two-For-One Twister, 36 Positions, for Monofilament

Barmag, DD2000 GI, 2010, Two-For-One Twister, 36 Positions, for Monofilament

Description

  1. Overview
    1. For monofilament
    2. Year: 2010
    3. Model: DD2000 GI
    4. For high speed twisting of artificial monofilament grass yarn of 6 times 1800 dtex, for 8 times 1100 dtex
    5. Speed with 33 turns per meter up to 190 m/min depending on denier and yarn quality
    6. Without slippage even for very slippery LLDPE monofilament
    7. Very even twists per meter
  2. Specifications
    1. With precision winding on yarn tension controlled winders with electronic gear
    2. Two motors per winder: one for the bobbin, one for the traversing cam shaft

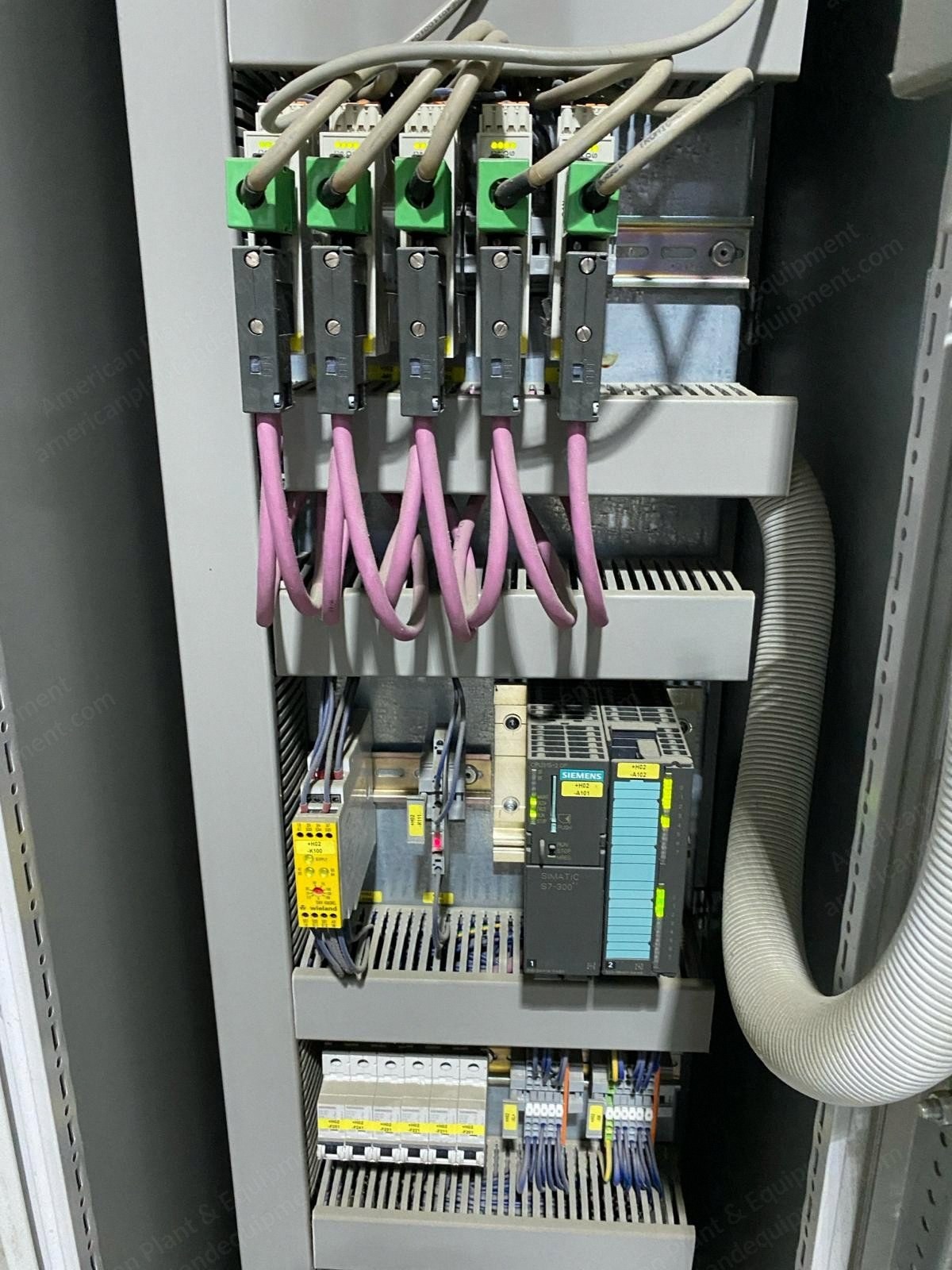

    3. With PLC to control precision winding
    4. With changing of winding ratio several times during winding of one bobbin for optimum bobbin quality
    5. The machine has 36 positions, 18 each side
    6. For starting from flanged bobbins with 8 kg of yarn on each bobbin

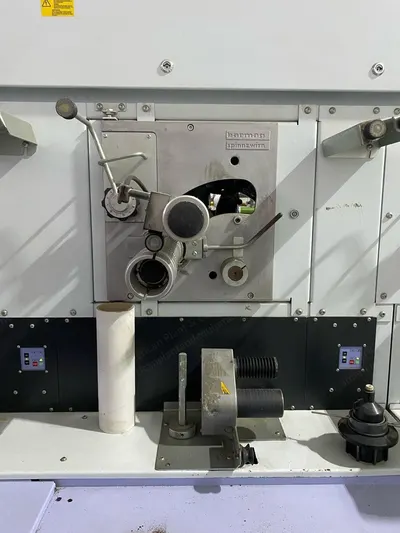

    7. With flyer for twisting 6-end or 8-end monofilament yarns
    8. With spindle for 6600 to 12000 dtex yarns
    9. 18 twisting positions on each side of the machine, mounted in a back-to-back frame
    10. With central setting of spindle speed, winding speed, number of twists per meter, winding ratios, number of meters of twisted yarn on the final bobbin
    11. With precision winding on winders model ATW250 LGTE
    12. Suitable for winding onto cheap paper tubes used in BCF yarn production (73 mm inner diameter, 292 mm length)
  3. Condition
    1. Currently running in perfect condition
