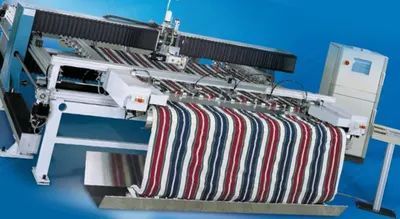

Description Overview Movable bridge with movable sewing head for big reduction in floorspace Hauser SNA 3300 machines Single needle Model: SNA 3300 Frameless quilting of pre-filled bags with or without embellishments Bag is placed manually into one clamp on the left and right side of the fabric in-feed Bag loading is simple and quick which allows an operator to run several machines Loading, alignment, tensioning, and holding of the bag are fully automatic The finished bag is moved to the rear of the system during the next loading cycle If requested, further transportation of the completed comforter can be conducted over simple slides, conveyor belts or a transfer system Specifications Widest width machines can quilt: 2600 mm Brand and model of sewing head: Pfaff 134 Voltage: 480 volts, 3-phase, 60 Hz Weight: 3000 kg Electrical power: 12 kVA Stitches per minute: up to 4500 Transport speed while sewing: up to 23 m/min (75 ft/min) Transport speed without sewing: up to 55 m/min (180 ft/min) Standard sewing area: 2770 x 2670 mm / 109 in x 105.5 in (L x W) Standard cover size: 3000 x 2900 mm / 118 in x 114 in outside dimensions (L x W) In-feed speed: up to 24 m/min (78 ft/min) Non-standard sizes available on request Machine space requirements for standard sizes: approx. 5500 x 5000 mm / 18 ft x 16 ft 4 in (L x W) Condition In running condition Standard Features Thread sensors and thread cutters for upper and lower threads Automatic collision protection Automatic central lubrication of the guides and spindles Options High-speed or heavy-duty lockstitch sewing heads Bobbin changers Double head version Additional tools Video available
