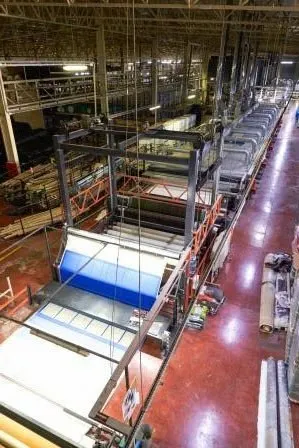

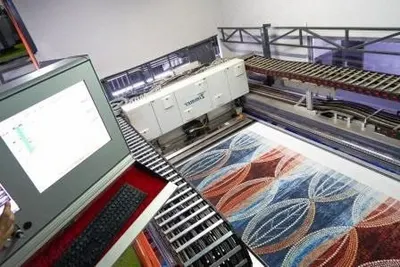

Chromojet printing machine, width 4200 mm, year 2018
Model: CHR800 16X512
Includes sampling equipment

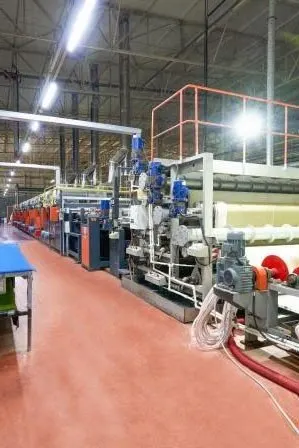

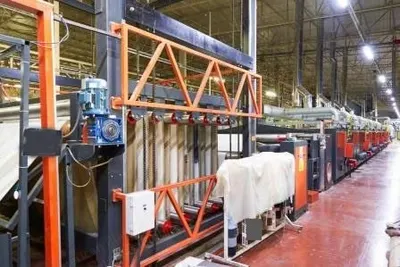

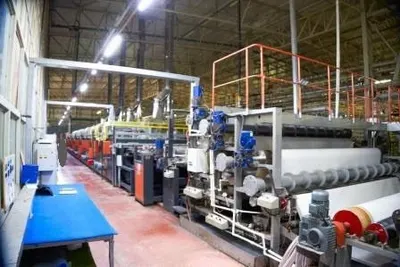

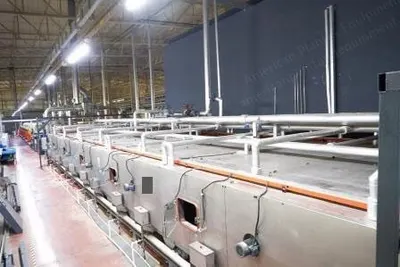

Full line: entry, steamer, washer, dryer, roll up

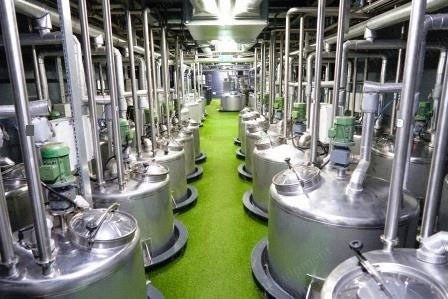

Full automatic dye kitchen
Carpet width: 2000 to 4200 mm
Carpet pile weight: 300 to 2500 g/m²
Carpet height: 3 mm to 20 mm
Voltage: 380 volts / 3 phases / 50 cycles; +/- 5%
Number of colors: 16
Jets per color: 512 type HSV800
Resolution: 38, 50 or 76.2 dpi
Nozzle type: 250 µ
Carpet material: nylon, wool and modified polyester
Printing Speed
Based on a head speed of 70% up to 90% and a print width of 4.2 m
76 dpi: 1.1 to 1.4 m/min
50 dpi: 1.7 to 2 m/min
38 dpi: 2.1 to 2.5 m/min
The machine would have the possibility of running in double speed, which would give about 80% additional speed to the above mentioned single speeds
The color range in process color printing with 8 colors is limited
The machine has the possibility of running in double speed in process color printing with 8 colors
Chromojet Printer HSV800 4000 16C X 512
Machine frame: solid steel frame
Fabric transport: extra strong rollers for precise belt tracking
Automatic belt guiding unit with motor driven guiding roller, analog sensor and limit switches
Conveyor belt with pins
High precision gearbox with servo drive
Stainless steel bar on entry side, driven extraction roller on exit side
Loop control at entry and exit: to synchronize entry and steamer
Entry side: loop control with guiding roller and laser distance sensor
Exit side: loop control with laser distance sensor and limit switch (photo cell)

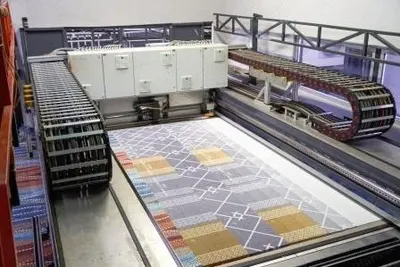

Printing carriage: frame with solid aluminum profile structure

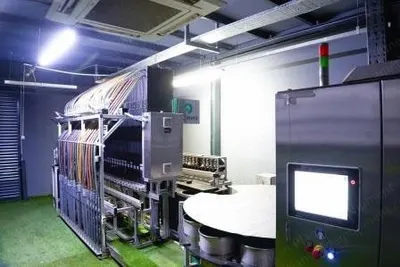

Color supply unit for 16 colors with pressure control

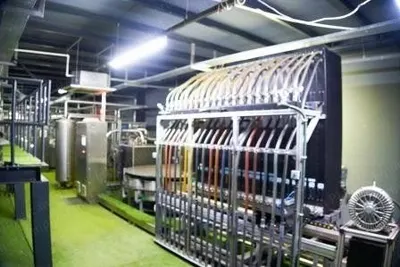

2 energy chains for color supply hoses and cables
High precision guiding rails with special coating
Servo drive with parallel shaft and 2 precision gearwheels
Rack and pinion drive with helical gearing
Height adjustment: 0 to 50 mm of complete bridge
4 lifting gears driven by AC motor; height detection with analog sensor
Automatic washing system: for pumps, filters and color supply system on the print head; air injection for better cleaning result
Color supply: 16 pumps each with one main filter, 16 set pre-filter and 16 set last chance filter
Machine control: PC with "soft PLC"
Software: for PLC and data transfer
Cables: all cables are included from cabinets to the machines
Suprapress Penetrating and Pressing Station
2 press rollers (one with rubber coating and one with chromium coating)
Gap adjustment with 0.1 mm steps
Gap can be opened to max. 50 mm during continuous operation of the line
3-stage roller cleaning and drying
Inverter controlled drive
Synchronization between Chromojet printer and Suprapress as well as steamer inlet
The user will have an option not to use pressing station at all times
The maximum opening of the press station will be 50 mm
Electrical control unit
Drive system for Suprapress
Synchronisation and adaption to the program
All special cables are included
Chromojet Sample Printer CHR800 1200 16 X 32
Printing width: 1200 mm x 1200 mm
Number of jets per color: 32
Number of colors: 16
Pattern resolution: 38, 50 or 76 dpi
Carpet pile weight: 300 to 2500 g/m²
Carpet pile height: 3 to 20 mm
Nozzle: 250 µ
The final resolution used as well as the outcome of the print are depending on the carpet structure, especially the pile weight and pile height and the adjustments on the machine as well as the color paste must be adjusted accordingly
Installation of the sample printer and sample Supra press station will be included
Framework with print-head and transport table
Color supply unit with 16 tanks
Control unit incl. soft- and hardware
Industrial PC
Color groups will be arranged in the same way as the production printer
Print result of sample head will be almost like the production print head; it will not be 100% same as the after treatment process is different as well as the timing etc.
The speed of sampling will be 0.18 to 0.22 m/min in 50 dpi mode
Suprapress Sample Penetrating and Pressing Station
Press station with 1200 mm width (4')
2 press rollers
Manual gap adjustment
Stage roller cleaning and drying
Inverter controlled drive
