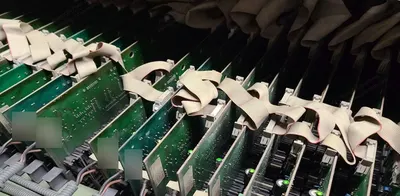

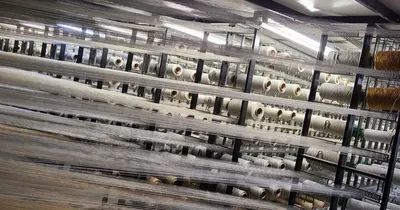

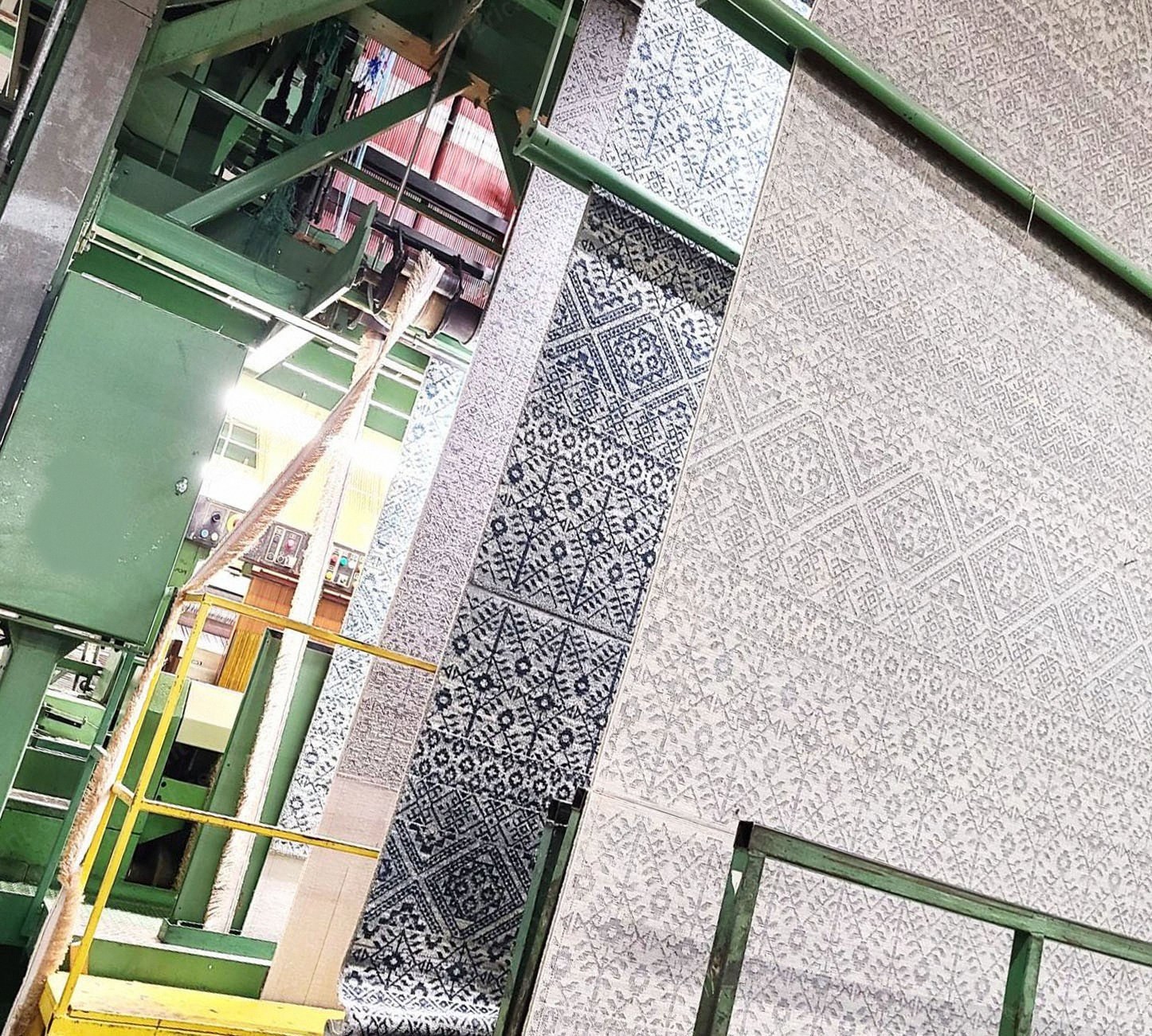

Description Overview Weaving loom 8 frame Weaving machine type: CRM 72-400 Manufacturing year: 1995 Specifications Fabric width: 4000 mm Rapier guiding: roller guiding Receiving rapier opening: positive opening Weave structure: 1/2 1/1 V weave Take up Folding system to take up carpets Knife stones Number of stones: 2 round stones and 2 flat stones Warp Beam Stand Type of beam stand: high beam stand for 6 beams Maximum beam diameter: 1250 mm Beam let-off system: motor driven Adjustment tension: with weights Reed Number of reeds: 1 Carpet density: 315 d/m Carpet width: 4000 mm Pitch in pile part: 1260 / 4020 Width of selvedge: 2 x 50 mm Prewinder Number of prewinders: 2 prewinders Number of bobbin stand: 1 with 2 platform of 4 bobbins each Electronic Jacquard Machine Number of heads: 3 PTR electronic head Number of solenoids used: 10080 Weave structures: 1/2 V weave structure incorporated Controller: 1 electronic controller Drive for jacquard: cardan double sided Harness Number of colors: 8 colors Number of harness cords: 10080 Return: standard springs Heald eyelet: 1080 R Ground Warp Frames Drive of frames: from bottom Heald length: 740 mm 380 R Number of frames: 6 frames Ground weave structure: 2 x (1/1) + 4 x (2/2) Stop Motion Number of pile stop motion: 1 with 10080 drop wires Number of warp stop motion: 1 for top and 1 for bottom
