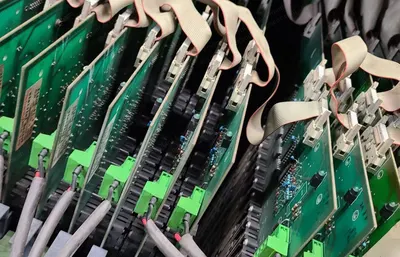

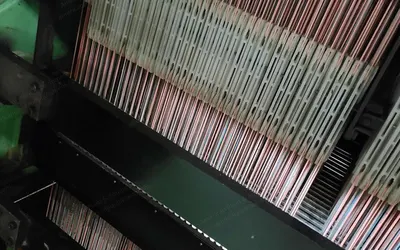

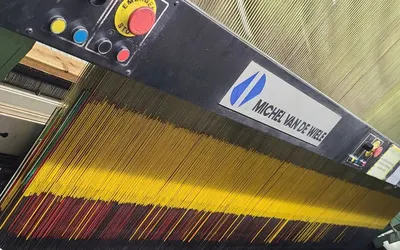

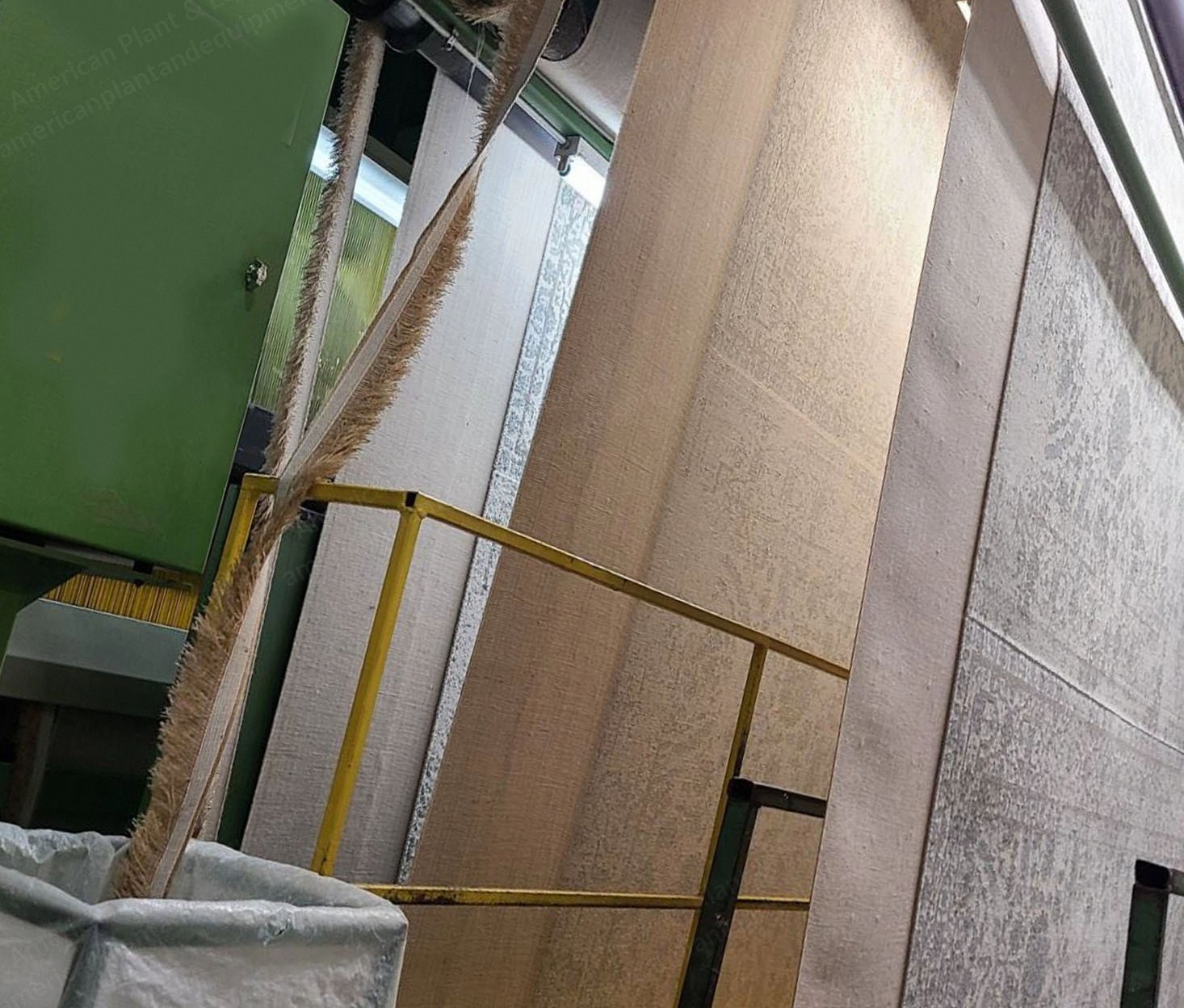

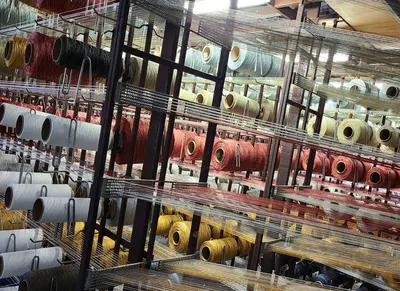

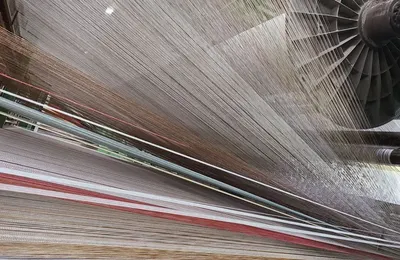

Description Overview 10 frame Year: 1998 Weaving machine type: CRM 72-400 Fabric width: 4000 mm Rapier guiding: Roller guiding Receiving rapier opening: Positive opening Weave structure: 1/2 1/1 V weave Take Up And Folding System Take up Folding system to take up carpets Knife stones Number of stones: 2 round stones and 2 flat stones Warp Beam Stand Type of beam stand: High beam stand for 8 beams Maximum beam diameter: 1250 mm Beam let-off system: Motor driven Adjustment tension: With weights Reed And Carpet Specifications Number of reeds: 1 Carpet density: 315 d/m Carpet width: 4000 mm Pitch in pile part: 1260 / 4020 Width of selvedge: 2 x 50 mm Prewinder Number of prewinders: 2 prewinders Number of bobbin stand: 1 with 2 platform of 4 bobbins each Electronic Jacquard Machine Number of heads: 2 PTX electronic head Number of solenoids used: 12600 Weave structures: 1/2 V weave structure incorporated Controller: 1 electronic controller Drive for jacquard: Cardan double sided Harness Number of colors: 10 colors Number of harness cords: 12600 Return: Standard springs Heald eyelet: 1080 R Ground Warp Frames Drive of frames: From bottom Heald length: 740 mm 380 R Number of frames: 6 frames Ground weave structure: 2x (1/1) + 4 x (2/2) Stop Motion Number of pile stop motion: 1 with 12600 drop wires Number of warp stop motion: 1 for top and 1 for bottom
