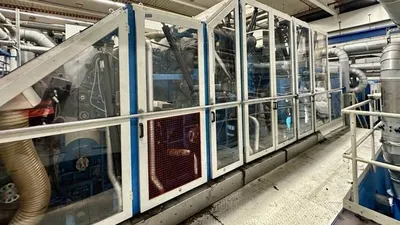

Andritz Spunlace, Fleissner, 2007, Width 3500mm, Carding, Cross Lapping, 2x Fleissner Oven

Andritz Spunlace, Fleissner, 2007, Width 3500mm, Carding, Cross Lapping, 2x Fleissner Oven

Description

  1. Overview
    1. Carding + cross lapping + Andritz spunlace + 2x Fleissner oven
    2. Year: 2007
    3. Availability: First / second quarter 2024
  2. Products
    1. Materials: Pes, viscose
    2. Weights: 35,500 g/m²
    3. Final width: 1800 to 3500 mm
  3. Water Preparation

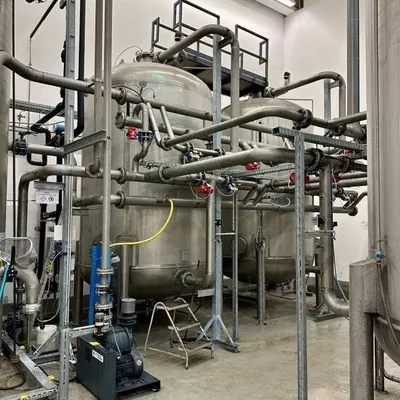

    1. Filtering systems

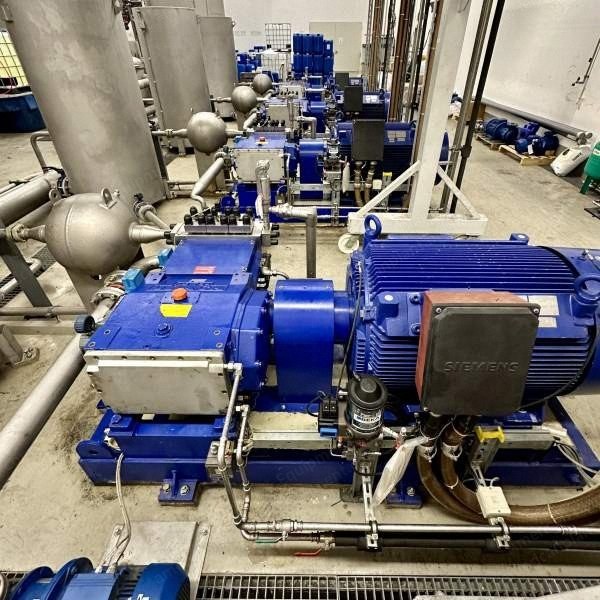

    2. 4 high pressure pumps

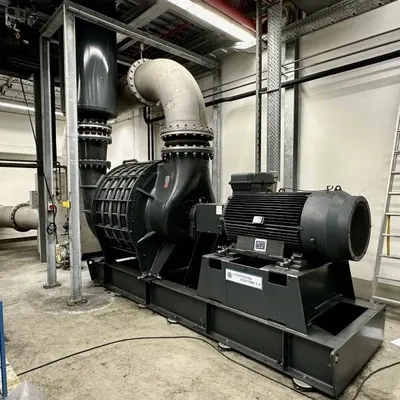

    3. 2 vacuum pumps
  4. Production

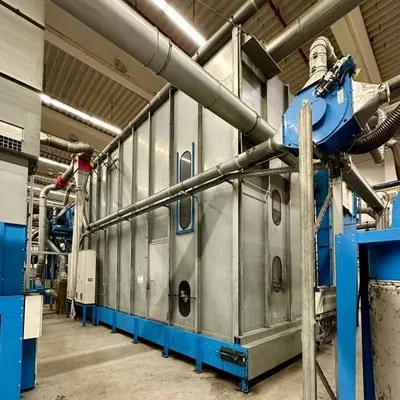

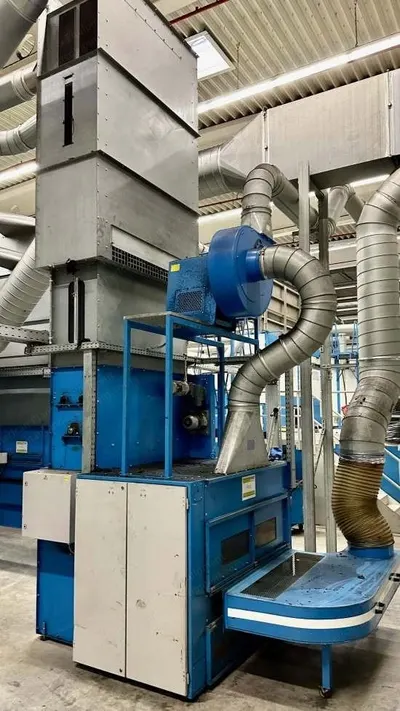

    1. 2x blending and storage box
    2. 2x fine opener
    3. 2x dosing unit

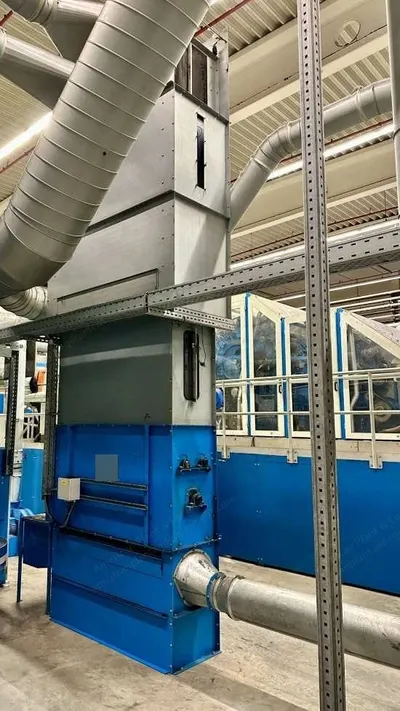

    4. 1x chute feeding unit for carding machine
    5. 1x weighing scale

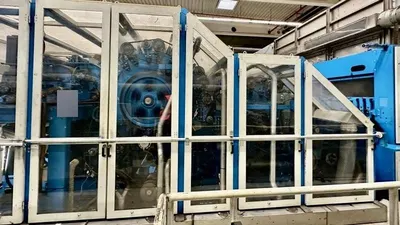

    6. 1x carding machine, working width 4000 mm with: roller feeding, breast cylinder (3 worker/stripper), main cylinder (3 worker/stripper), double doffer (with condensing roll)

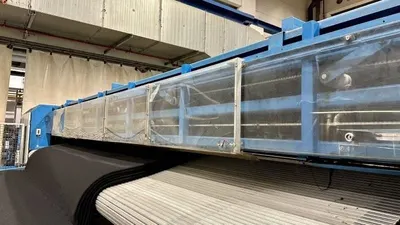

    7. 1x cross lapper: inlet 4000 mm, outlet 5500 mm, inlet speed max. 100 m/min

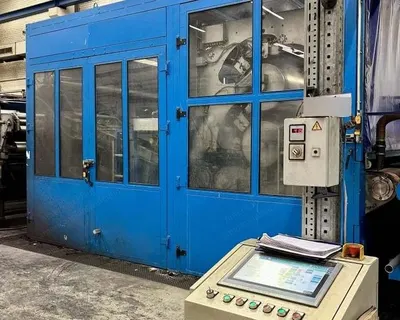

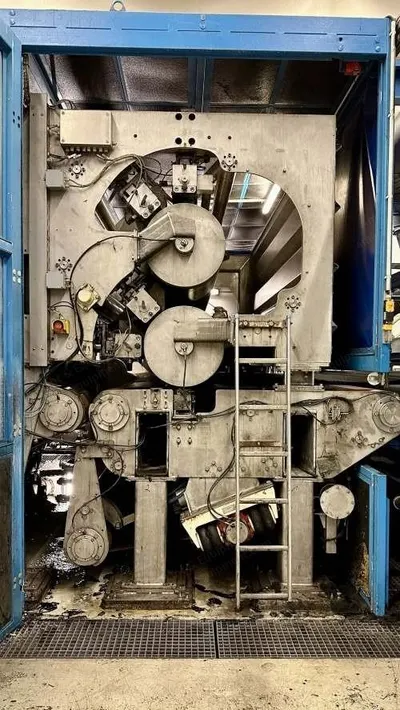

    8. 1x spunlace unit: working width 3800 mm, first vacuum drum with 2 jet bars, second vacuum drum with 2 jet bars, exit conveyor with vacuum suction

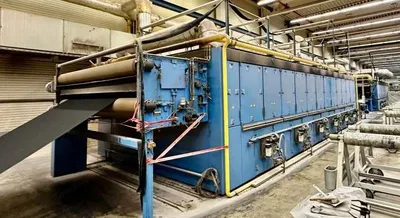

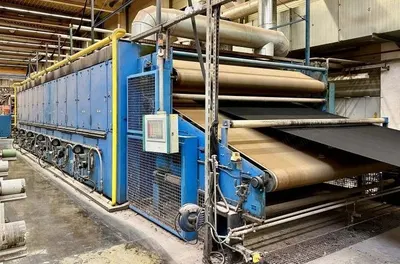

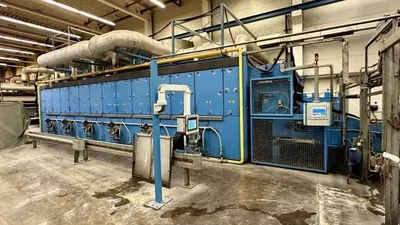

    9. 2x dryer / oven: double belt, 6 burners / section (each oven)
  5. Accessories
    1. All machines complete with electrical control systems / cabinets
