Itema, R9500, 2017, Rapier Loom, 5400mm Working Width, Staubli S3020 Dobby, 4 Colors

Itema, R9500, 2017, Rapier Loom, 5400mm Working Width, Staubli S3020 Dobby, 4 Colors

Description

  1. Overview

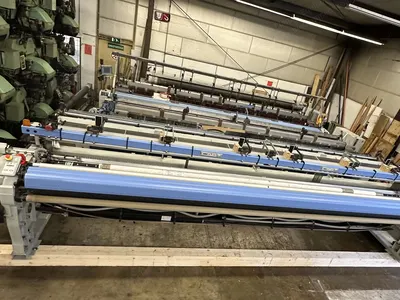

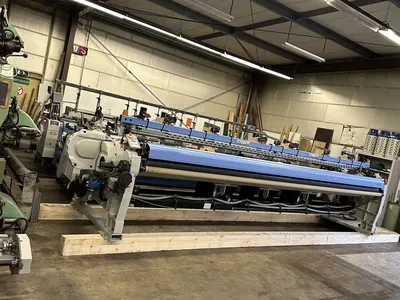

    1. Itema R9500 rapier loom
    2. Working width 5400 mm
    3. Year 2017
    4. For monofilament nets, pp tape fabrics, coating fabrics, tarpaulin, filter, conveyor belt fabrics, etc.
  2. Specifications
    1. Staubli dobbie, type S3020 conf. E3 DRC, 20k
    2. 16 k installed, positive rapier system (SK)

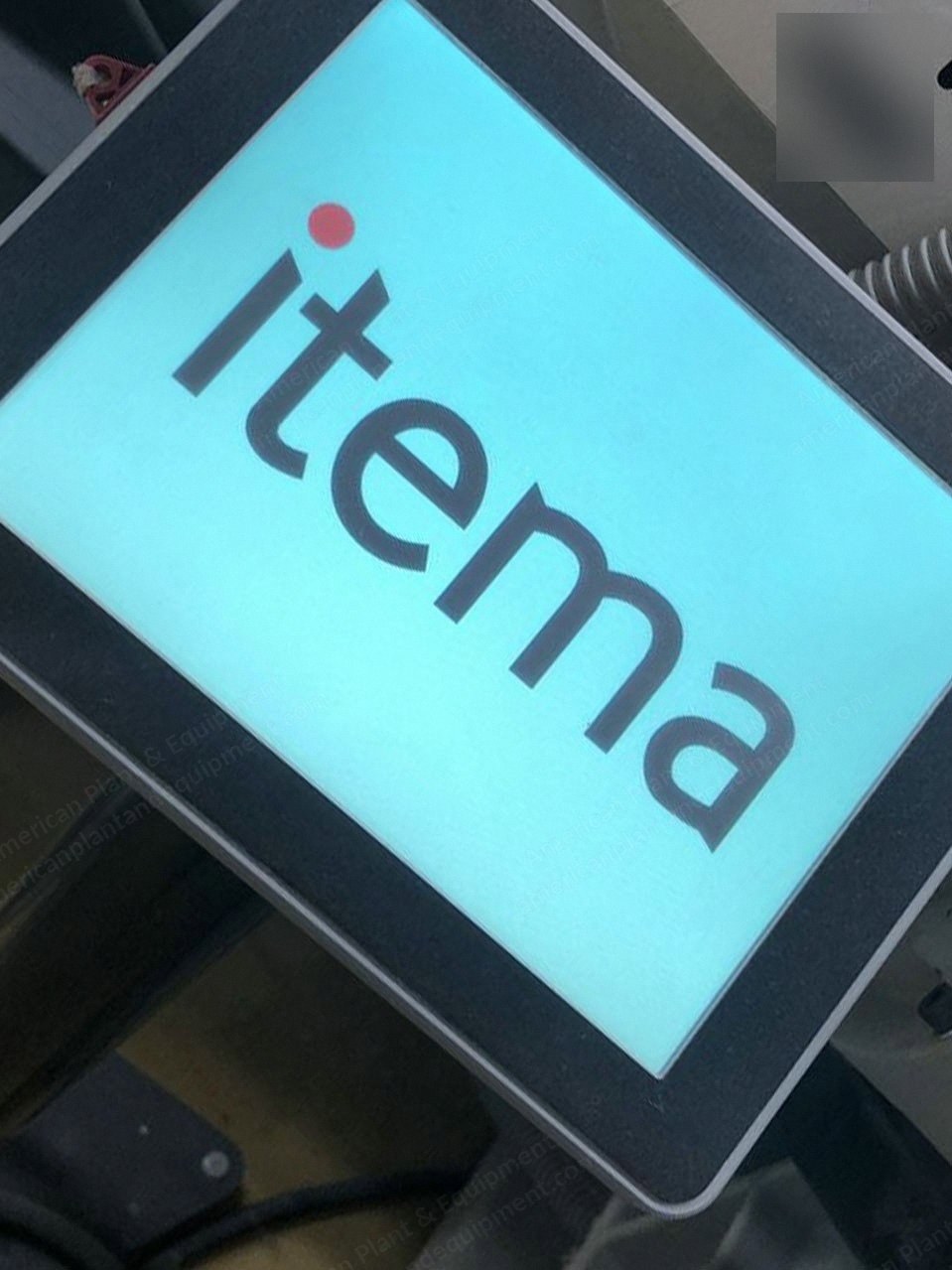

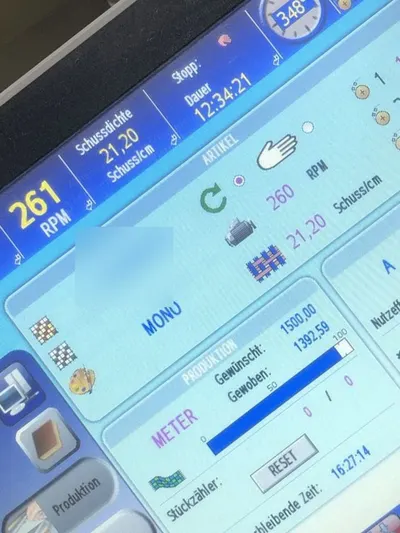

    3. Full colors touch screen
    4. 4 colors
    5. 4 weft feeders LGL progress vector
    6. Split beam execution

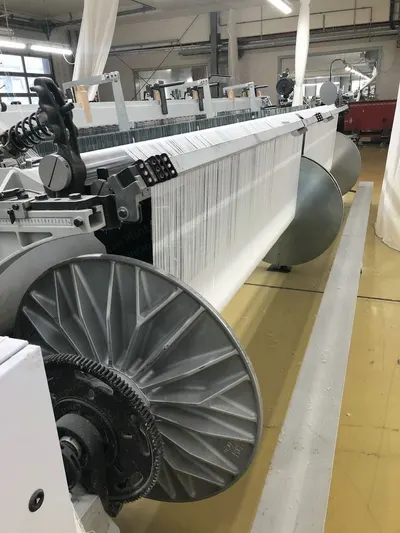

    7. 4 half warp beams dia. 1000 mm
    8. Side tuckers L+R (Manea), edge leno L+R, 14 frames (Grob)
    9. Neuenhauser big roll batcher with inspection loop
    10. Serial number: 93524
  3. Condition
    1. The loom was running on multifilament PES
    2. The loom is absolutely as new with very little running hours
    3. The machine is with side tuckers, side scissors and side melting (more options are not possible)
