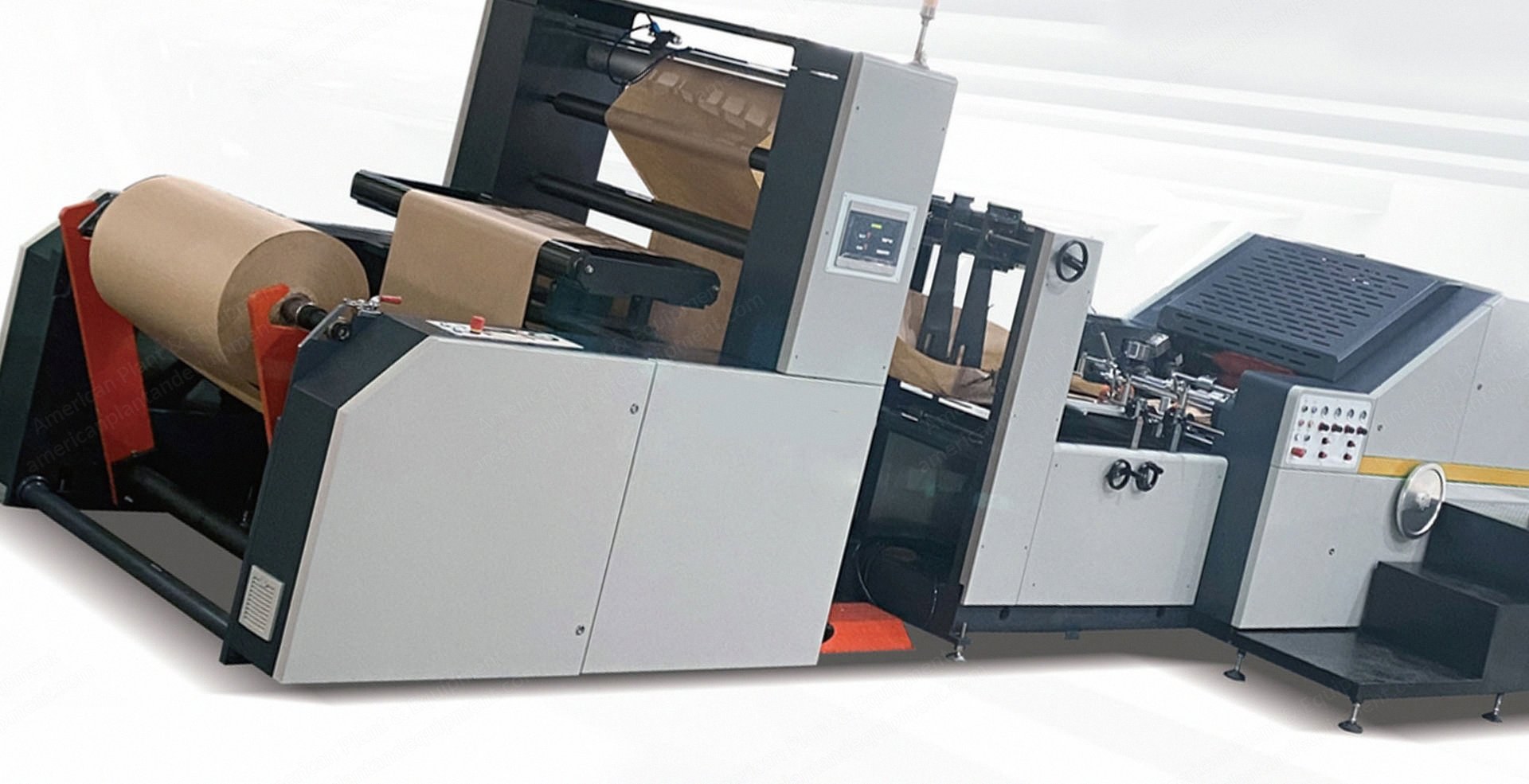

NovaStar, BS130, Square Bottom Paper Bag Making Machine, Bag Width 150 to 330mm, Speed 150 to 260 pcs/min, 15 kW (New)

NovaStar, BS130, Square Bottom Paper Bag Making Machine, Bag Width 150 to 330mm, Speed 150 to 260 pcs/min, 15 kW

Description

  1. Specifications
    1. Bag width (W): 150 to 330 mm
    2. Bag width bottom (H): 70 to 180 mm
    3. Bag cutting length (C): 275 to 530 mm
    4. Paper roll width: 380 to 1050 mm
    5. Max. Bag speed: 150 to 260 pcs/min
    6. Paper thickness: 60 to 150 g/m²
    7. Paper roll inner diameter: 76 mm
    8. Max. paper roll diameter: 1200 mm
    9. Air supply: 0.6 to 1.2 MPa
    10. Air consumption: 0.12 m³/min
    11. Machine supply: 480 V, 60 Hz, 3 phase, 4 wires
    12. Power: 15 kW
    13. Weight: 8500 kg
    14. Dimension: L 8600 x W 3700 x H 1800 mm
  2. Electronic Components
    1. PLC: Yaskawa (Japan)
    2. Servo motor: Yaskawa (Japan)
    3. Servo driver: Yaskawa (Japan)
    4. Frequency converter: Yaskawa (Japan)
    5. Cylinder: Airtac (Taiwan)
    6. Low voltage electrical apparatus: Eaton (America)
    7. Normal button: Eaton (America)
    8. Emergency button: Eaton (America)
    9. Rotation switch: Eaton (America)
    10. Bearing: NSK (Japan)
    11. Solenoid valve: Airtac (Taiwan)
    12. Photoelectric eye color code tracking: Sick (Germany)
  3. Parameters
    1. Power: 3 phases, 480 V ±10%, 60 Hz
    2. Compressed air pressure: 0.6 MPa
    3. Compressed air volume: approx. 0.5 m³/h
    4. Compressed air oil and humidity: 8 mg/m³
    5. Installation height max. altitude: 1500 mm
    6. Ambient requirement relative moisture: max. 65% when 40 °C
    7. Temperature range: 10 to 40 °C
