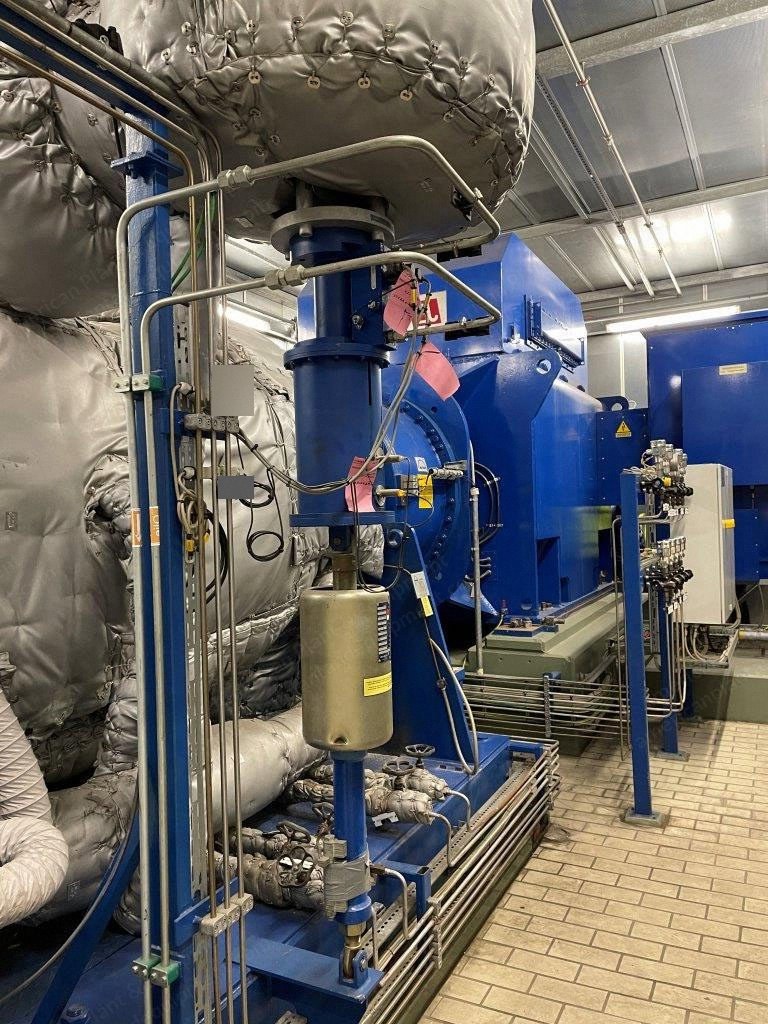

MAN, MARC 4B, 2007, 16MW, 50Hz, Back Pressure Steam Turbine Generator

MAN, MARC 4B, 2007, 16MW, 50Hz, Back Pressure Steam Turbine Generator

Description

  1. Overview
    1. Back pressure steam turbine generator
    2. 16 MW
    3. 50 Hz
    4. 10,500 V +/-5%
    5. Turbine year 2007, alternator year 2008
    6. Shut down December 2017

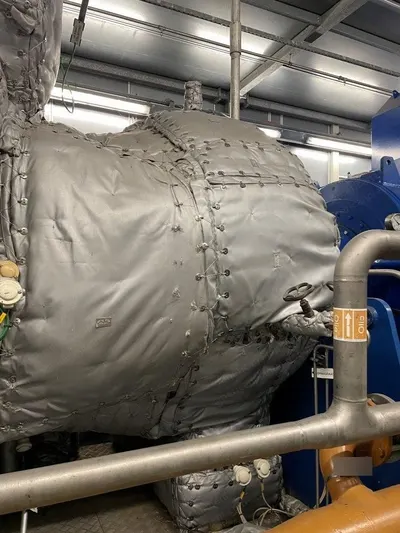

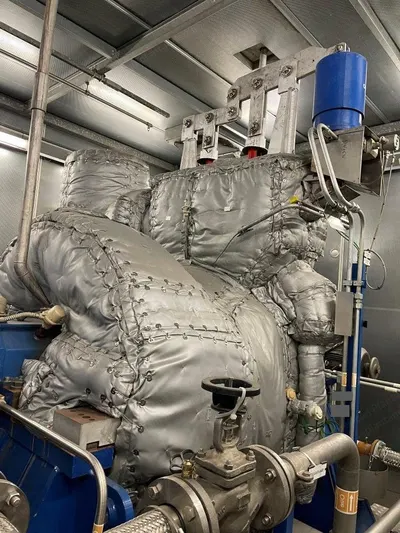

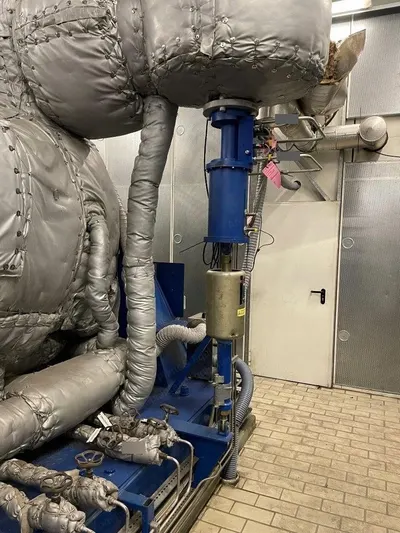

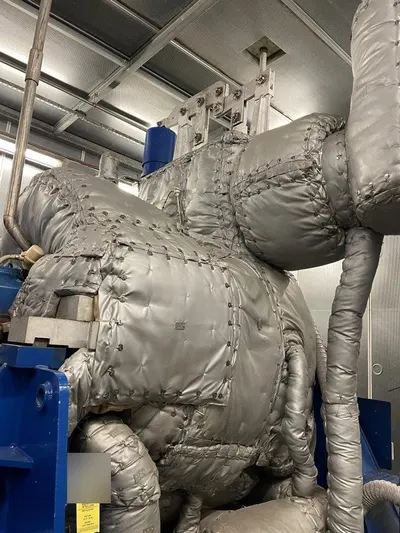

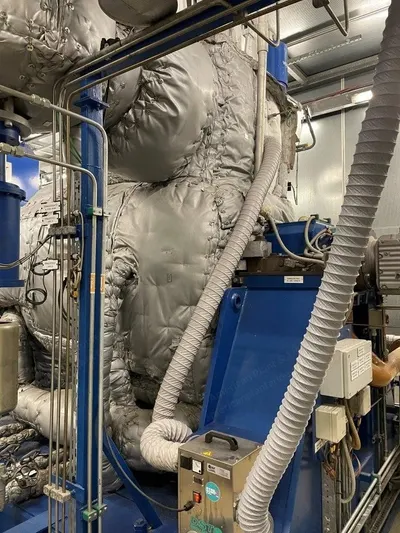

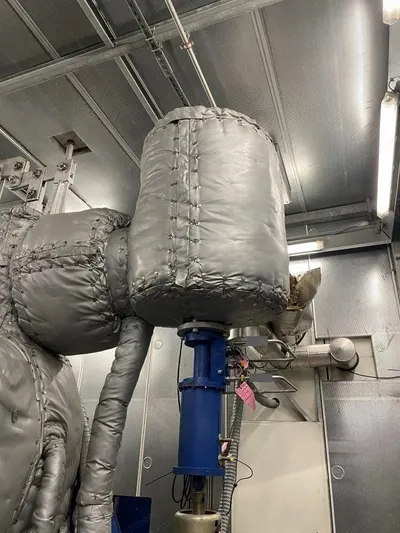

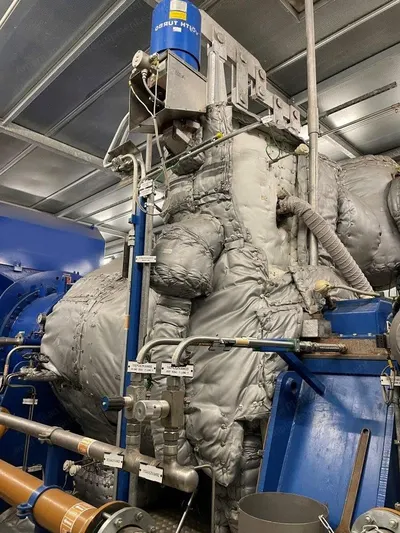

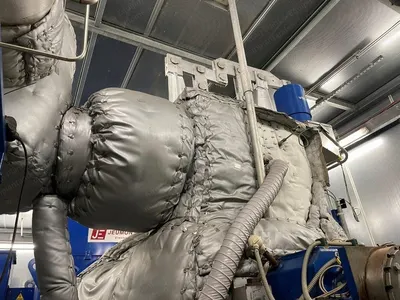

  2. Turbine
    1. Engine: Man Marc 4B 2008
    2. 16,230 kW, 8,120 RPM
    3. Fresh steam: 99 bar
    4. Steam consumption: 129.2 ton/hour
    5. Finished steam pressure: 7 bar
    6. Fresh steam temperature: 410 deg C
    7. Used steam temperature: 165 deg C

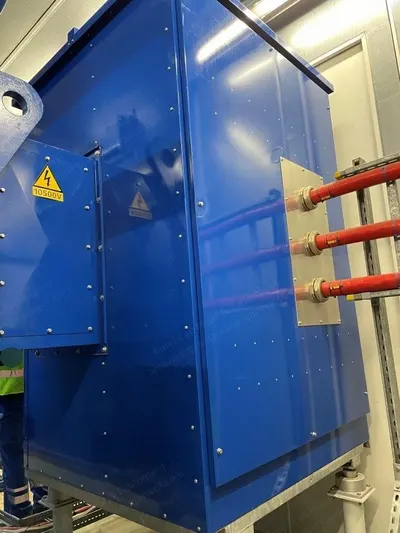

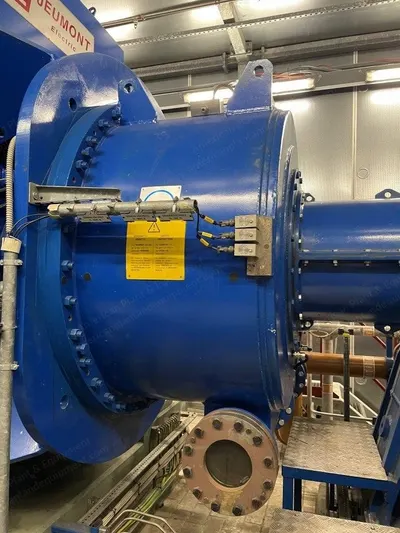

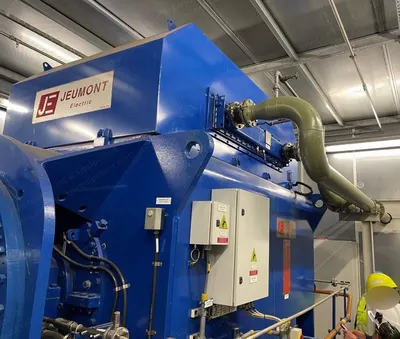

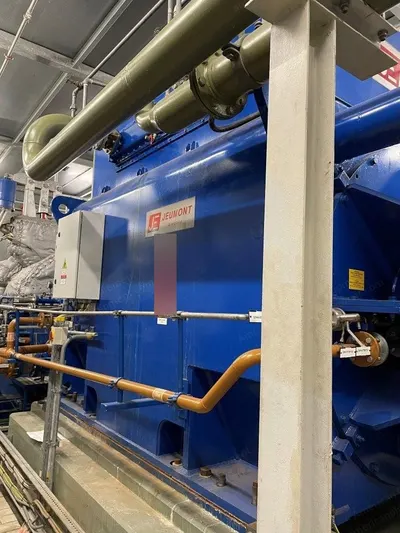

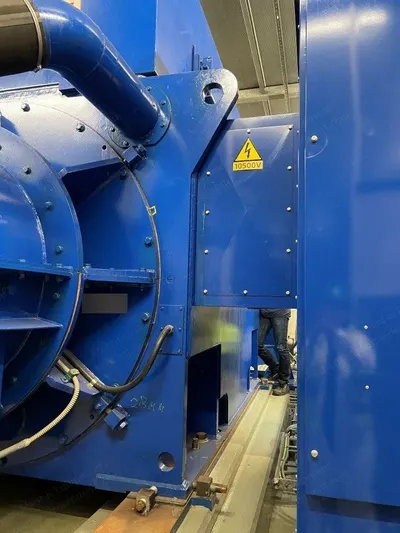

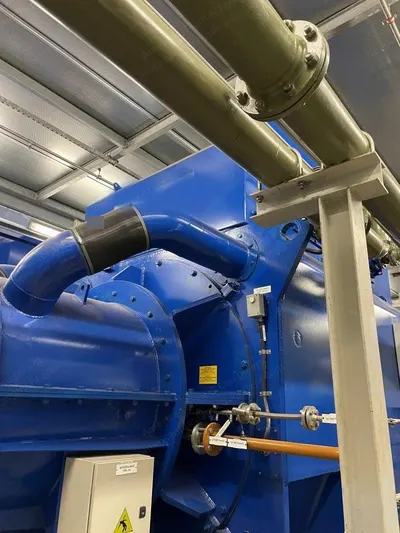

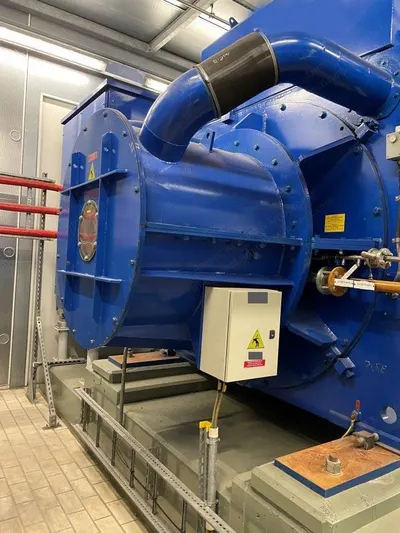

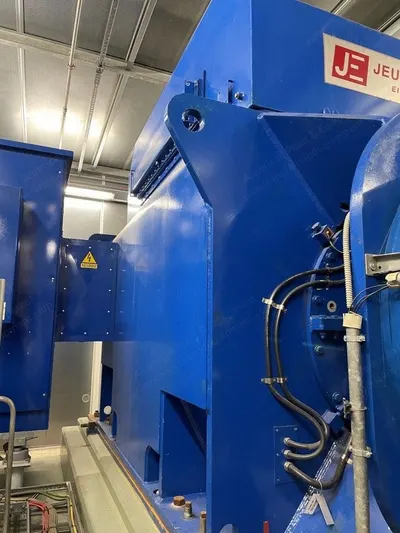

  3. Generator

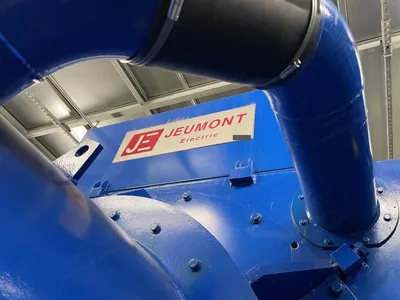

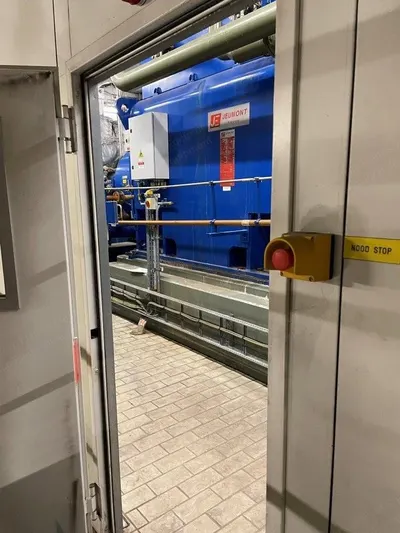

    1. Manufacturer: Jeumont Electric 2008
    2. 16,240 kW, 20,300 kVA, 10,500 V +/-5%
    3. 1,116 A, 50 Hz, 1,500 RPM, 0.8 power factor
    4. Total hours: 60,145 hours, shut down on 2017
    5. After last overhaul on 2010 till shut down: 9,399 hours

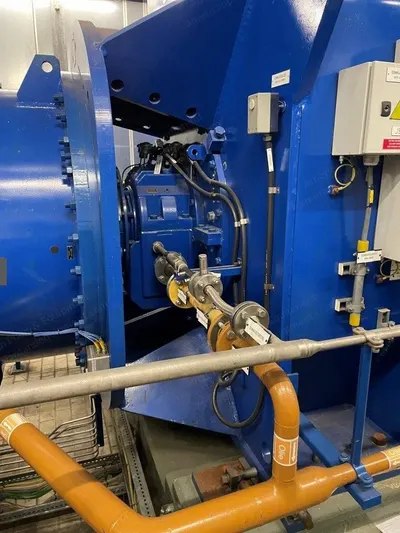

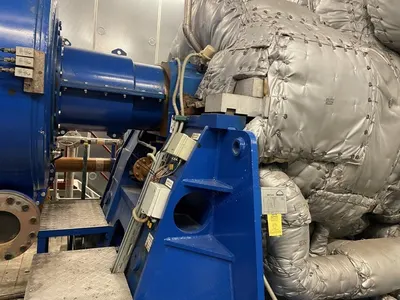

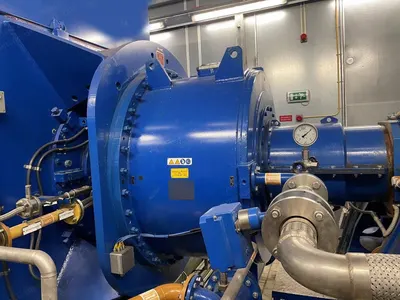

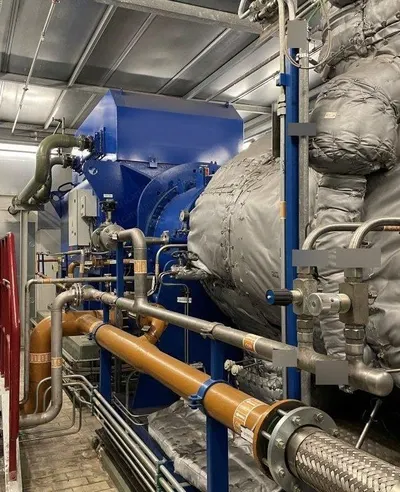

  4. Gearbox / Transmission
    1. Manufacturer: Renk AG 2007
    2. Nominal power: 17,050 kW
    3. Configured power: 18,650 kW
    4. 8,120 / 1,500 RPM
  5. Support Systems
    1. Lubrication system: Reinhold Wesselmann GmbH 2007
    2. Control oil system: Hydrac System GmbH 2007
    3. Fire extinguishing system: Van Winkel en Boerma 2008
  6. Included

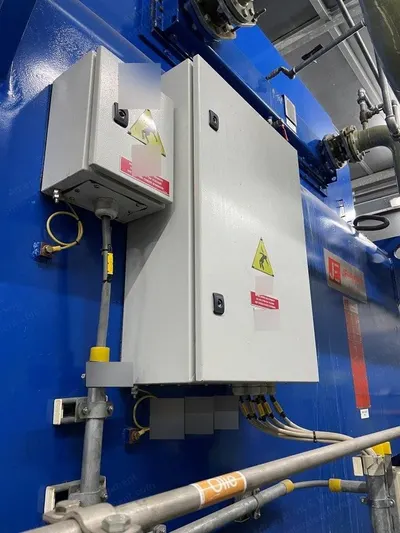

    1. Central control and operating cabinet
  7. Condition
    1. This lot still available
