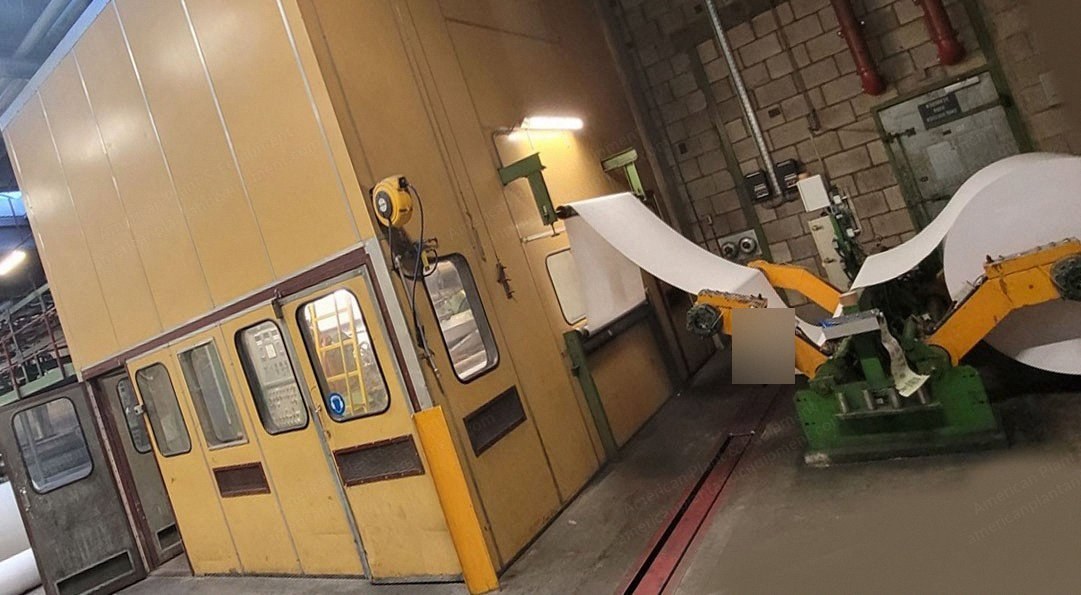

Description Overview Corrugator 1030 to 1600 mm, b-flute European producer Type: b-flute Size: 1030 to 1600 mm Flute profile: b flute Processing: one-sided Flute height: 2.34 (excluding paper thickness) Pitch: 5.7 mm Flute factor: 1.39 Working Dimensions Working width: max 1650 mm, min 1030 mm Roll width net: max 1600 mm, min 73 mm Minimum ridge total: 30 mm Roll length: max 400 mtr, min 70 mtr 480 mtr (squashed) Processable Materials Processable g/m²: max 150 gr, min 38 gr Number of lanes maximum: 14 lanes (more possible in consultation) Configuration Number of crease lines: n.a. Score distance: n.a. T version: no Score distances t-version: adjustable Wrapping: inside and outside Printing options: no Flatten wave: yes Core and Winding Core diameter: max 153 mm, min 153 mm (100 mm possible) Winding: only on core Paper roll weight: max 2000 kg, diameter 1250 mm Diameter paper core: max 75 mm, min 70 mm
