Babcock, 5000-1700, 1989, 3200mm Working Width, 7 Chambers, Gas Heated

Description

Overview

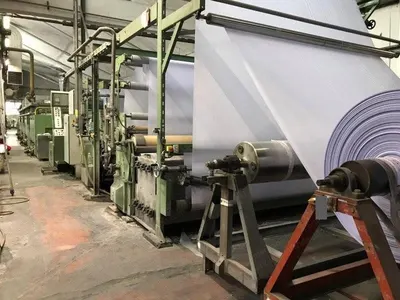

1. Complete stenter line for impregnation and heat setting
2. Brand: Babcock
3. Model: 5000-1700
4. Working width: 3200 mm
5. Year: 1989 to 2019
Inlet And Washing Section

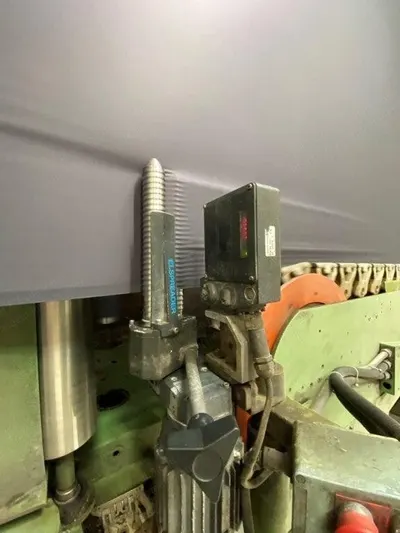

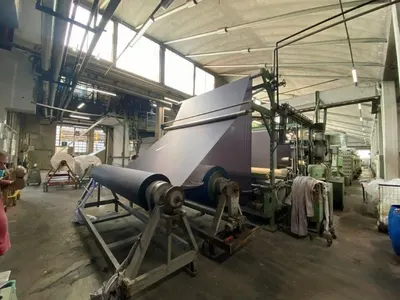

1. Inlet from big roll with E&L centering device

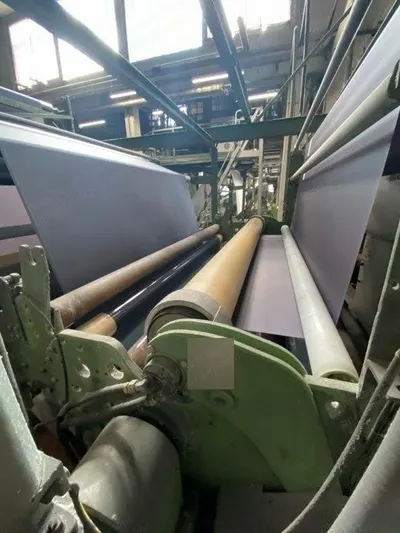

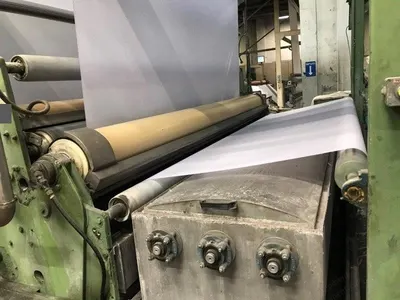

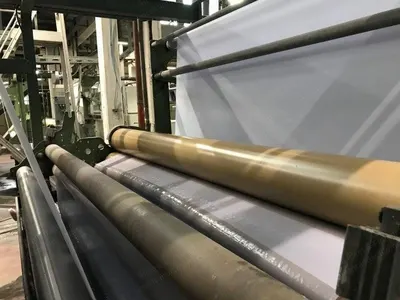

2. Cylinders washing unit (4 + 3 cylinders)

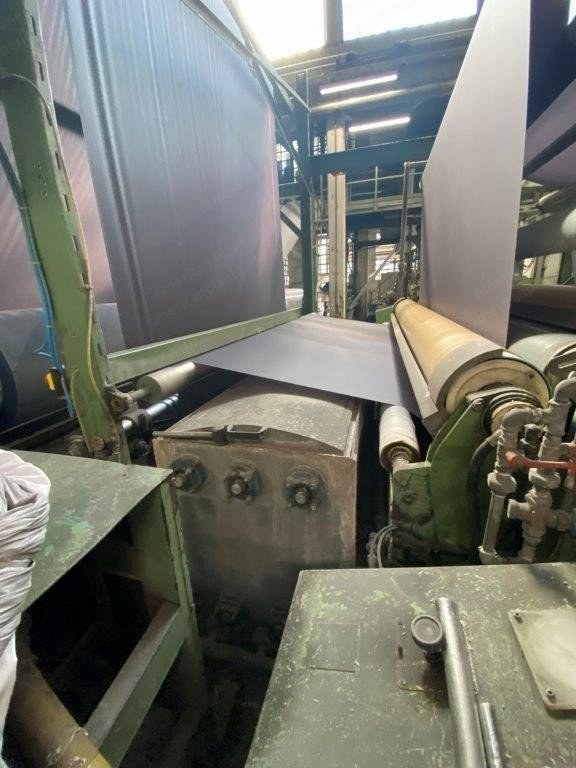

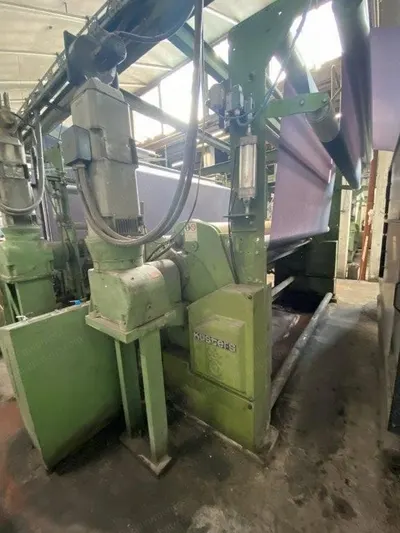

3. Kusters padder in two bowl execution with 1 impregnation trough, model 222.53-3200, year 1988
Weft Straightener

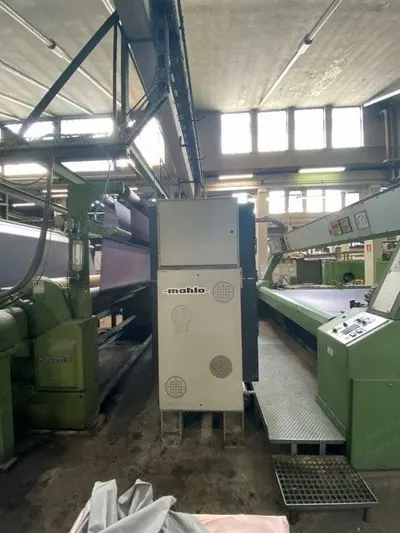

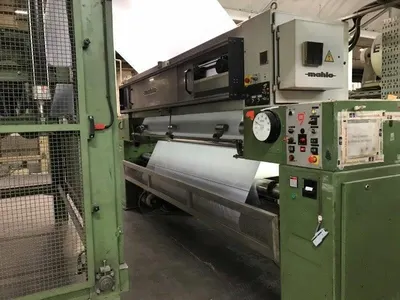

1. Mahlo weftstraightener RFMC-10AP, year 2000

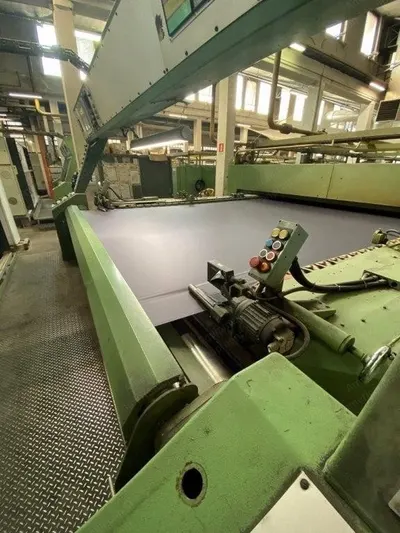

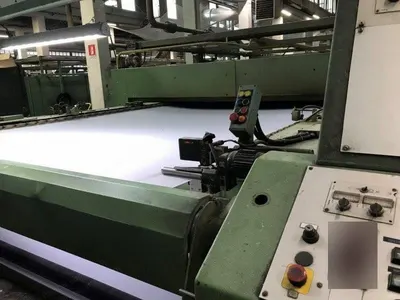

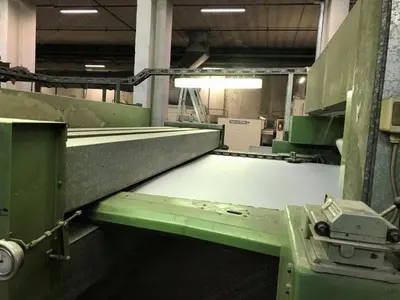

Stenter Frame

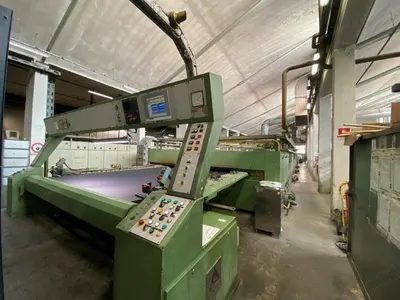

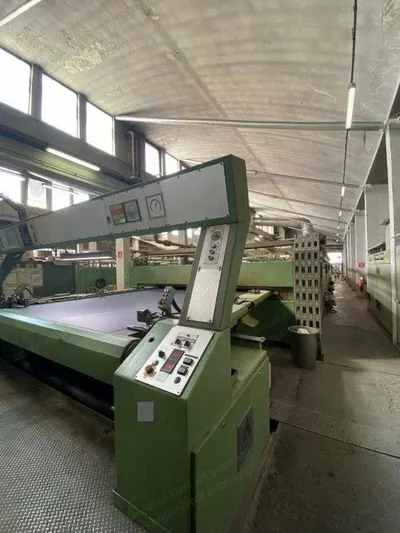

1. Babcock stenter frame model 5000-1700

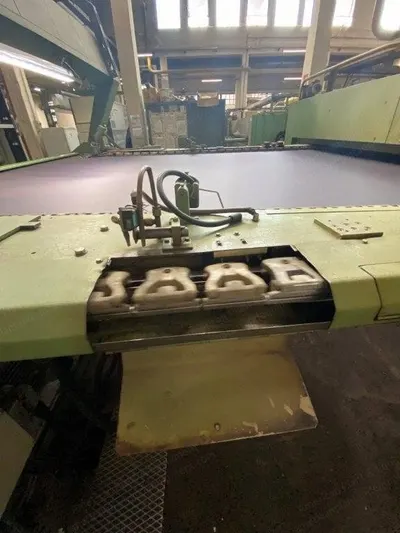

2. 7 chamber gas heated horizontal lubricated combined Artos chain (pins not installed)
3. Composed of: 1 x 3 meter inlet field with 2 E&L fingers at the entrance

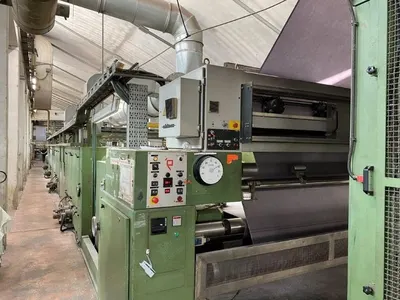

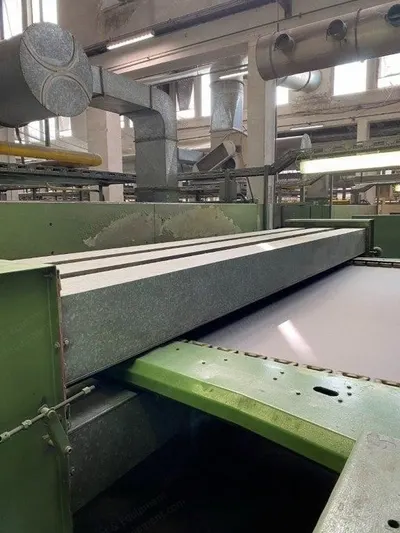

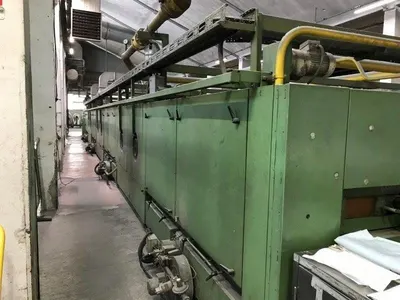

4. 7 chamber oven in countertype execution
5. 1 x 3000 mm outlet field equipped with a 1000 mm air cooling zone
Monitoring And Control

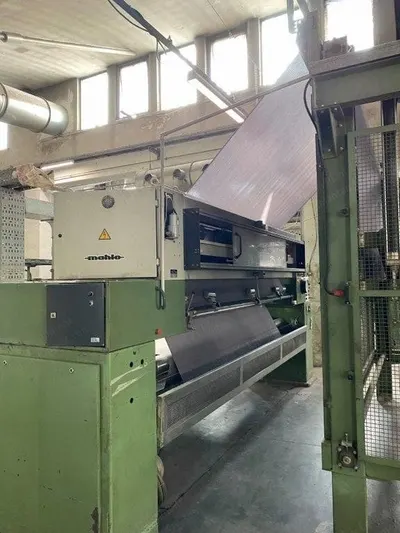

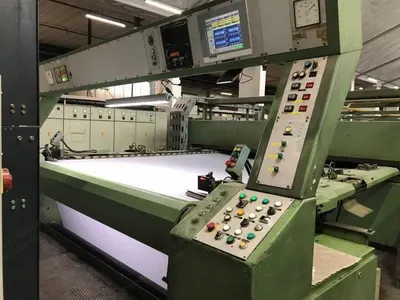

1. 1 Mahlo reading bridge equipped with 4 heads with banana roll and a Mahlo contact rollers rest humidity sensor
Accumulator And Winder

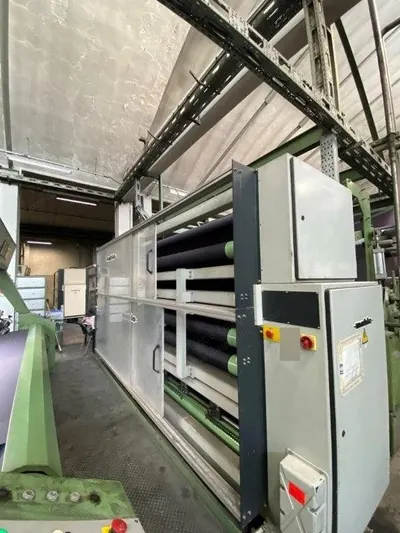

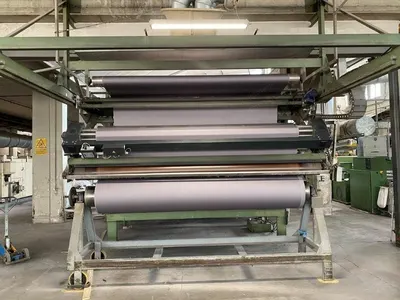

1. Corino cylinders accumulator (content approx. 25 meter)

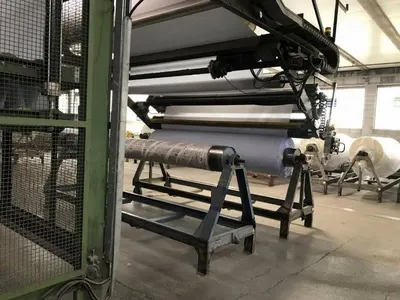

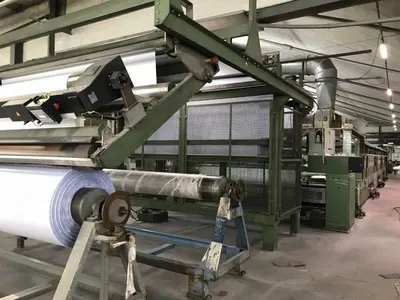

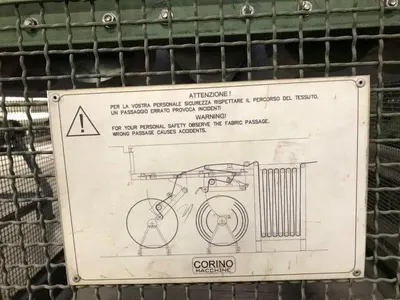

2. Corino two position surface winder with traversing roller E&L 2019

Features	Horizontal Lubricated Combined Artos Chain
Included	['E&L Centering Device', 'Cylinders Washing Unit (4+3 cylinders)', 'Kusters Padder Mod. 222.53-3200 (Year 1988)', 'Mahlo Weftstraightener RFMC-10AP (Year 2000)', 'Mahlo Reading Bridge with 4 heads', 'Corino Cylinders Accumulator', 'Corino Two Position Surface Winder (Year 2019)']

Working width	3,200 mm
