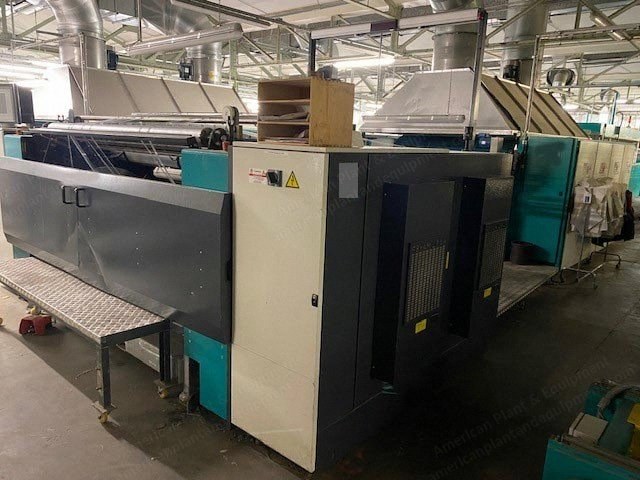

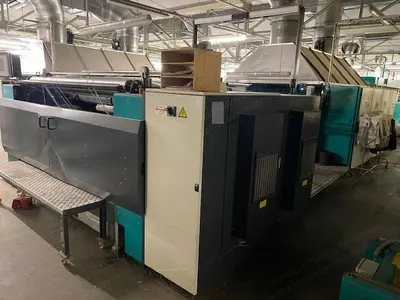

Karl Mayer, Filsize-S-F-1800, 2018, Single-End Sizing Unit, Working Width 1800mm, Speed 500m/min

Karl Mayer, Filsize-S-F-1800, 2018, Single-End Sizing Unit, Working Width 1800mm, Speed 500m/min

Description

  1. Overview
    1. Karl Mayer Rotal type Filsize-S-F-1800
    2. Year of construction 2018
    3. Working width 1800 mm
  2. Specifications

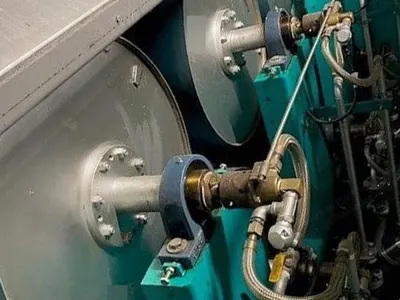

    1. Single warp beam unroll device: beam driven by a motor, tension continuously controlled by a drum with a pressure cell
    2. Length measurement
    3. Automatic diameter detection
    4. Motorised adjustable beam supports
    5. Hydraulic beam insertion and lift out system
    6. Tension 600 N, min/max diameter 300/1040 mm
    7. Sizing bath type MPF for filament
    8. Cooling device for the water-cooled sections

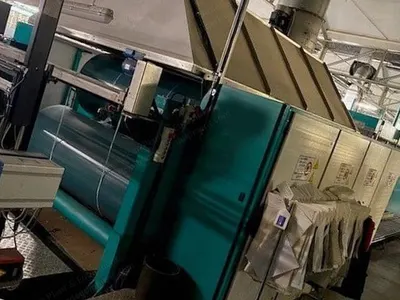

    9. 2 air dryers type FA 6M (hot air convection dryer)
    10. Separation of humid air by means of electric air aspiration
    11. Dryer type CD-F-7 with 7 dry cylinders, all teflon coated
    12. Waxing unit
    13. Beaming type BD
    14. Heating 220 kW
    15. Air temp 180 °C (12 bar)
    16. Water consumption 370 kg/h
    17. Air circulation 8000 m³/h @ 180 °C
    18. Additional heater
    19. Laserstop for yarn rupture
    20. Speed 500 m/min, 600 N
    21. Beaming head

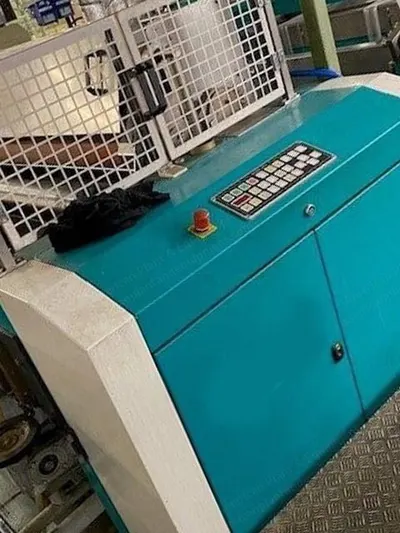

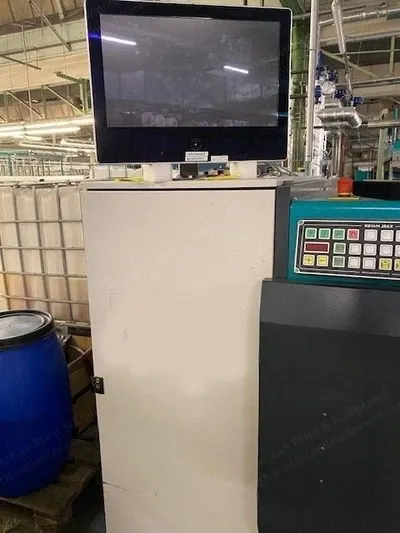

    22. Command by Kamcos Karl Mayer system
