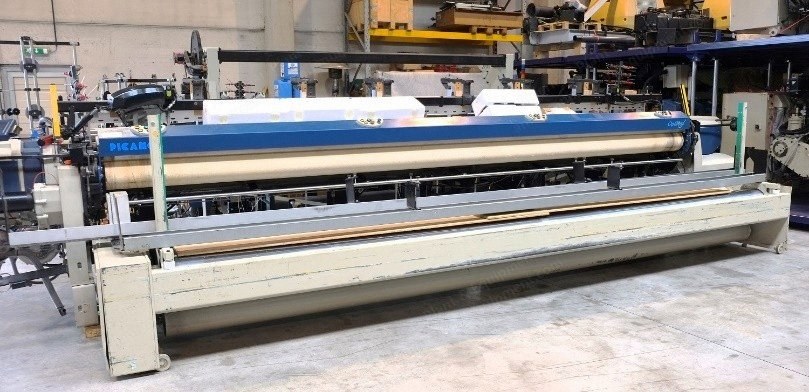

Description Overview Picanol rapier loom type Optimax-4-R-540 Year of construction 2012 Working width 5400 mm 4 colors Controlled positive rapier GPG Specifications Electronic dobbly Staubli type 2622B with 12 levers installed Equipped with Sumo, ELO RHS+LHS (prepared for split beam, but without gear LHS and without mid support) ETU, 4 QS colors Creel with bobbin switch sensor for 4 bobbins Feeder support, 4 feeders IRO type XD X3 with PFL 10 heald frames XLF extra light 152 DRC30 13” Grob detection with 6 warp stop motion bars Single warp beam Q4 Ø 800 mm (warp tube diameter 270 mm) Direct warp control type backrest Warp beam position 14, 1 heavy and 1 standard pressure roll Elsy L and R, touchscreen ID3-3, 3 steps Waste system RHS and LHS with 2 aspiration motors External batching motion Neuenhauser type DW 3133 LXT (WOB 5500)
