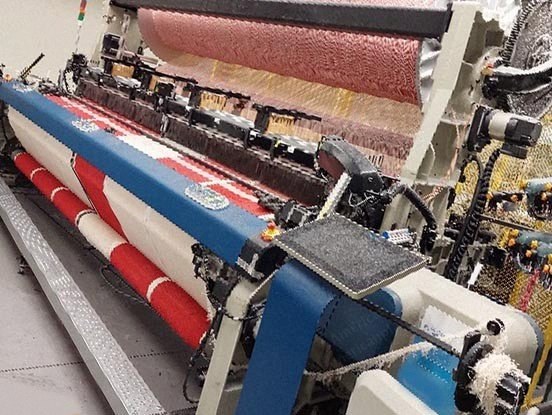

Description Overview Picanol Terry Max-i weaving loom Type Optimax-8-R-360 Year of construction 2015 Working width 3600 mm Gripper system on guided hooks Demo-loom Specifications Electronic dobby Staubli type S3020/C4 can 20 levers installed (full) 8 weft colors Sumo, 2 x Elo, Etu Ground and upper beam construction 8 weft accumulators Iro Luna X3 Feeder support 2 bobbin creels Weft detector 8 colors Ground warp tension roll diameter 140 mm with whip roll diameter 140 mm Pile tension roll with 2nd guiding roll Double warp detection Grob with each 2 warp stop detection bars 14 heald frames GTP Alu Power 124 DRC30 15" C Heddles and droppers as on the loom Electronic weft cutter Elsy LHS + RHS Waste cutter LHS + central + RHS Pinned take-up rolls left and right + pinned take-up roll full width (in wood box) Ground warp beam diameter 800 mm Pile warp beam diameter 1000 mm Waste system with dustbin Interactive touchscreen PD15 Internal cloth roller drive with cloth roller Serial number: 329647
