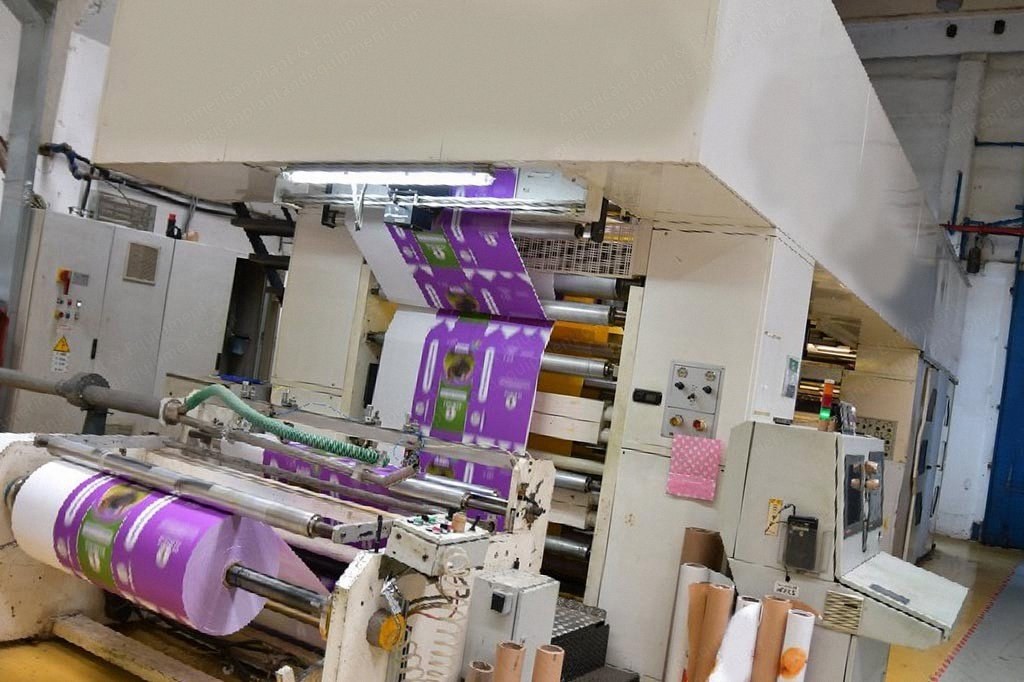

Comiflex, Comiflex-5, 2008, 1500mm Printing Width, 7 Colors (6 CI + 1 Stack), UV Drying

Comiflex, Comiflex-5, 2008, 1500mm Printing Width, 7 Colors (6 CI + 1 Stack), UV Drying

Description

  1. Overview
    1. Flexographic printing press
    2. Model comiflex - 5
    3. Model: 1500 with sleeve system
    4. Year: 2008
    5. Colors: 6 ci + 1 stack + uv
    6. Printing width: 1500 mm
    7. Print repeat: min 400 mm / max 1200 mm
    8. Print cylinder gearing: 1,5915 (5 mm)
    9. Printing speed: up to 250 mpm
    10. Material to be printed: paper / carton 30 to 120 gsm
  2. Printing Plates Sleeves
    1. Sleeve 440 - 11 pieces - 6 gears
    2. Sleeve 470 - 6 pieces - 6 gears
    3. Sleeve 500 - 7 pieces - 6 gears
    4. Sleeve 520 - 6 pieces - 6 gears
    5. Sleeve 550 - 11 pieces - 6 gears
    6. Sleeve 560 - 7 pieces - 6 gears
    7. Sleeve 600 - 12 pieces - 6 gears
    8. Sleeve 640 - 13 pieces - 6 gears
    9. Sleeve 660 - 7 pieces - 6 gears
    10. Sleeve 680 - 6 pieces - 6 gears
    11. Sleeve 750 - 7 pieces - 6 gears
    12. Sleeve 760 - 6 pieces - 6 gears
    13. Sleeve 770 (covoras) - 6 gears
    14. Sleeve 800 - 6 pieces - 6 gears
  3. Sleeves for Full Font
    1. Latime imprimare 105 mm - nr. buc 1
    2. Latime imprimare 420 mm - nr. buc 1
    3. Latime imprimare 550 mm - nr. buc 1
    4. Latime imprimare 625 mm - nr. buc 1
    5. Latime imprimare 630 mm - nr. buc 1
    6. Latime imprimare 755 mm - nr. buc 1
    7. Latime imprimare 760 mm - nr. buc 1
    8. Latime imprimare 780 mm - nr. buc 2
    9. Latime imprimare 810 mm - nr. buc 2
    10. Latime imprimare 955 mm - nr. buc 2
    11. Latime imprimare 990 mm - nr. buc 1
    12. Latime imprimare 1255 mm - nr. buc 1
    13. Latime imprimare 1510 mm - nr. buc 1
  4. Anilox Characteristics
    1. Resolution 80 l/cm - volume 13 g/cm3 - 3 pcs
    2. Resolution 120 l/cm - volume 68 g/cm3 - 1 pc
    3. Resolution 200 l/cm - volume 6.5 g/cm3 - 2 + 2 pcs
    4. Resolution 140 l/cm - volume 7.8 g/cm3 - 1 + 1 pcs
    5. Resolution 140 l/cm - volume 7 g/cm3 - 1 pc
    6. Resolution 50 l/cm - volume 20 g/cm3 - 1 pc
  5. Condition
    1. This press is still in operation
    2. The machine can be inspected in operation
    3. The condition of the press is very good
