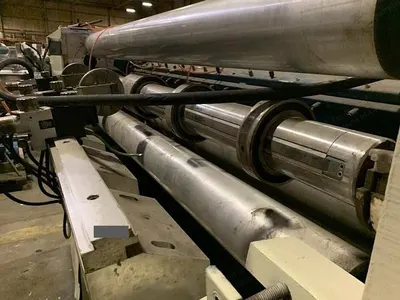

Arrow, 2000T-9, 64 inch Width, 96 inch OD Rewind Capacity, Shear Cut, 2000 FPM

Arrow, 2000T-9, 64 inch Width, 96 inch OD Rewind Capacity, Shear Cut, 2000 FPM

Description

  1. Overview
    1. Arrow mdl 2000t-9 simplex surface with center assist slitter rewinder
    2. 64” wide
    3. Brand: Arrow
    4. Model: 2000t
    5. Condition: Used
  2. Unwind Section

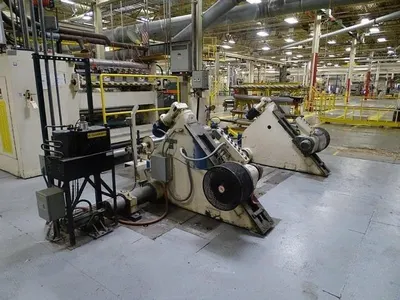

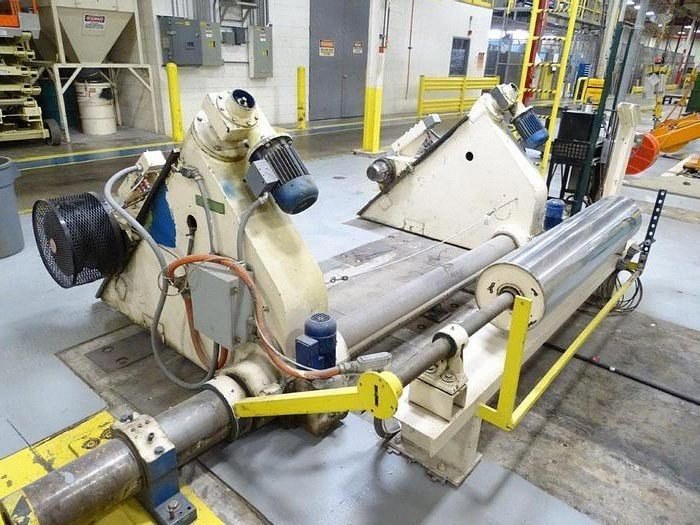

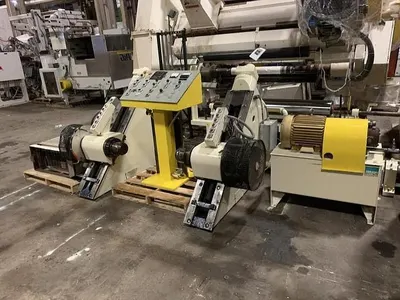

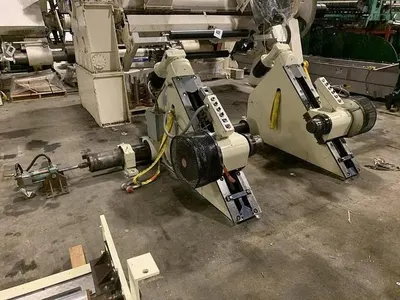

    1. Separate jagenberg shaftless unwind floor pick up via screw and electric motors
    2. Montalvo pneumatic brakes
    3. Edge guide system

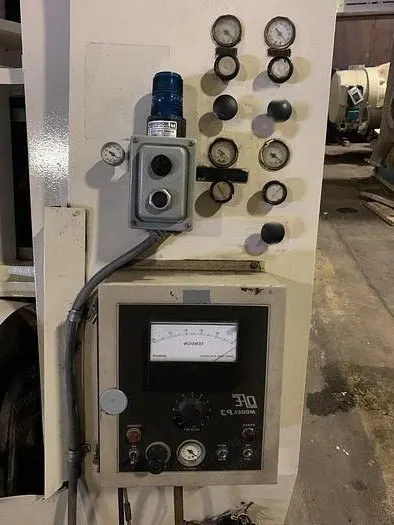

    4. Dover flexo p3 auto tension control

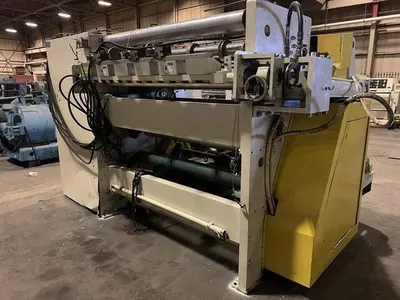

  3. Slitting Section
    1. Two (2) tidland class ii shear knife assemblies
    2. 3” min. slit width
    3. Dual bowed roll for positive separation after slitting

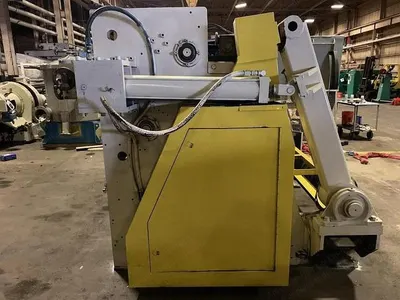

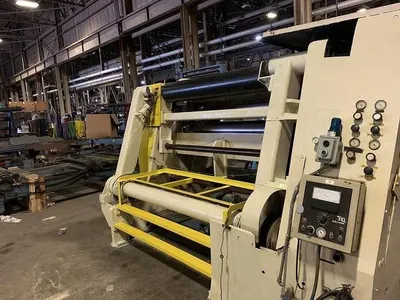

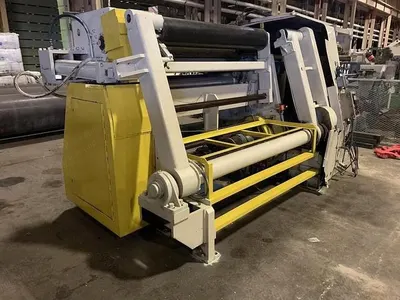

  4. Rewind Section
    1. 3” and 6” rewind shafts
    2. 96” od rewind capacity
    3. Max. roll weight 8,000#
    4. The design of the mdl 2000 enables winding at a constant surface pressure regardless of roll weight
    5. Pneumatic cylinders load the driven 8.625” diameter winding drum against the rewinding roll
    6. As the roll diameter increases, the winding drum is deflected about its pivot point and this motion is detected by a hydraulic 4 way valve with a feeler roll
    7. This valve controls the movement of the hydraulic cylinders on the rewind arms as they are positioned to neutralize the effect of the roll diam and weight build up
    8. The rewind clutch is used to control winding torque
    9. Any or all of the independent friction elements can be actuated thus having an effect on torque output

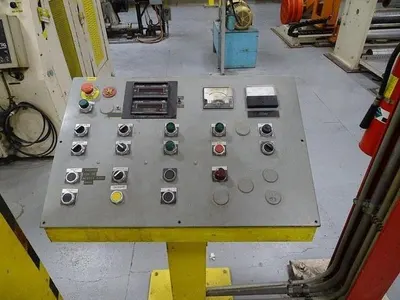

    10. Also clutch pressure can be regulated on the pneumatic control panel
    11. This provides an adjustment to compensate for variations in products being run
  5. Drive System

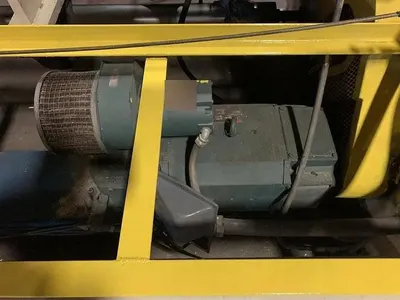

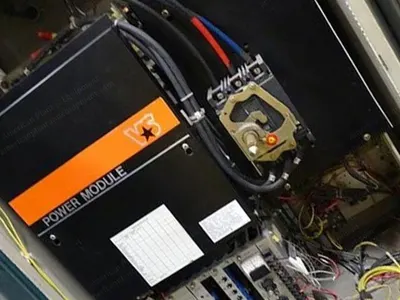

    1. Single motor reliance 60 hp vs drive system
    2. Rated 2000 fpm
  6. Material Capabilities
    1. Can be used paper, nonwoven up to heavy board
    2. Last ran cup stock
  7. Condition
    1. Good operating condition
    2. Being removed from service due to plant closure
  8. Included
    1. Includes engineering, maintenance and parts documentation
  9. Specifications
    1. Weight: 3628.7
    2. Width: 64 inches (1600mm)
    3. Slit width min: 3 inches
