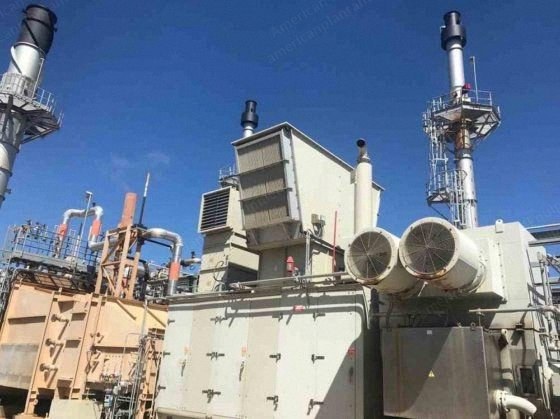

Solar, Centaur T4701, 2007, 3200 kW, 4160V, 60Hz, Wet NOx Gas Turbine Generator Set

Solar, Centaur T4701, 2007, 3200 kW, 4160V, 60Hz, Wet NOx Gas Turbine Generator Set

Description

  1. Overview
    1. Solar Centaur T4701 wet nox gas turbine generator set
    2. Model GC1-CB-1D
    3. Turbine 1500 rpm
    4. Keto engineering synchronous ac generator
    5. Model AA27932000
    6. Rated 3200 kw
    7. 1800 rpm
    8. 4160/3/60
    9. Power factor 0.8
    10. Temperature rise 70c
    11. Exciter field volts 100
    12. Peak duty 3169 kw, year 2006
  2. Gear Box Assembly
    1. Part number 196800-206-960
    2. Rated 7700 hp
    3. Service factor 1.1
    4. Input 14851 rpm
    5. Output 1800 rpm
    6. Ratio 8.305921
    7. Overhauled 2017
  3. Included Equipment
    1. Unit available with Deltak HRSG 64000 lb/hr steam boiler
    2. Rated 700 psig
    3. 16002 sq ft heat surface
    4. National board #1949
    5. Year 2007
  4. Condition
    1. Used
  5. Specifications
    1. Boiler serial: S06113-1219-0100
    2. Gearbox serial: OAF05-15406
    3. Generator serial: 18771-01
