Weft insertion: positive centre transfer and open shed weft insertion
Shedding: electronic dobby machine
Electronics/control: FT-version (fast ethernet technology) with 12” touchscreen Dornier ErgoWeave® and integrated speed control
Main drive: Dornier SyncroDrive®
Application: reinforcing fabrics made of glass roving
Glass fibre and carbon weaving Neuenhauser batching

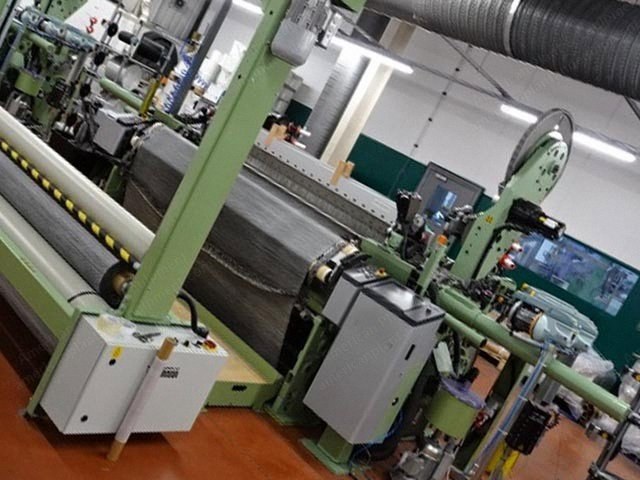

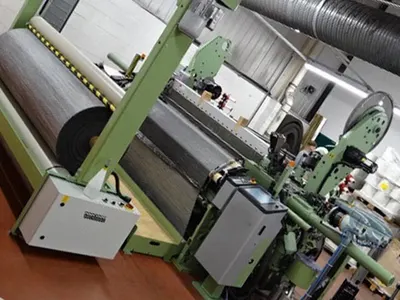

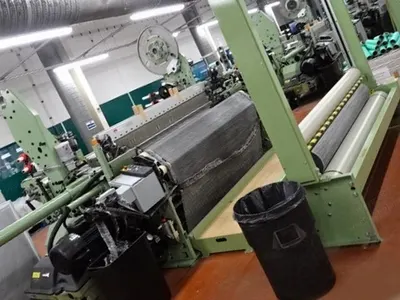

Machines in production
Specifications
Reed drawing-in width: max. 2170 mm, min. 1460 mm
Maximum mechanical machine speed: 520 rpm (at maximum drawing-in width), 550 rpm (at minimum drawing-in width)
Production speed: optimum achievable production speed depends on drawing-in width, pattern design, quality of weft yarn material and weft yarn packages, quality of the warp as well as on speed limitations of the shedding motion
Depending on weaving machine configuration and specification, additional limitations in speed and drawing-in width are possible
Warp Preparation and Technical Advice
The warp beam must be appropriate for the weaving process, that means hard wound and with an even perimeter over the whole width
The winding should not build up or decline in the selvedge area; the winding hardness must also be consistent
All ends and tapes need to have a constant tension over the whole width
The warp beam width must be adapted to the reed width
Machine Footings and Rear Step Board
Machine footings in serial execution, 5° elastic mounting pads type Sylodamp
Full-width rear step board
Ground Warp
Warp beam support ground: Eurofix type, full-width warp beam
Beam flange diameter up to 1000 mm, max. warp beam weight: 5000 kg
Warp beam drawing no. 74.013-64.002
Warp beam adaptor: standard version for Euro warp beam
Warp let-off ground: servo-controlled warp let-off EWL, type 804, constant warp feed, automatic regulation of warp tension
Maximum allowed warp tension: 660 kg
Measuring device ground: S-sensor integrated in back rest device, sensor type: DS300
Back rest device ground: single back rest assembly continuously adjustable in horizontal and vertical direction
Back rest roller steel, diameter 125 mm, surface structured chromium finish
Back rest springs, 6.3 mm, LHS and RHS
Top Warp
Warp let-off top: servo-controlled warp let-off EWL, type 804, constant warp feed, automatic regulation of warp tension
Maximum allowed warp tension: 660 kg
Measuring device top: S-sensor integrated in back rest device, sensor type: DS300
Warp beam support top: Eurofix type, full-width warp beam
Beam flange diameter up to 1000 mm, max. warp beam weight: 2500 kg
Warp beam drawing no. 74.013-64.002
Back rest device top: single back rest assembly continuously adjustable in horizontal and vertical direction
Back rest roller steel, diameter 125 mm, surface structured chromium finish
Back rest springs, 6.3 mm, LHS and RHS
Separate warp beam stand: one additional separate warp beam stand for two warp beams (same specification as the device in the machine)
Supervision of warp threads available in different positions
Position light barrier: in rear shed, below rear shed
Shedding
Machine frame: sturdy profile breast beam with milled guide for mounting of all adjustable devices and for stepless width change
Shedding with harness frames
Shedding motion drive: Dornier SyncroDrive®
Dobby motion: Staubli type 3020/2
Housing: max. 20 units, 12 mm pitch
Shaft units installed: 20
Shaft positions: 1 to 20
Max. permissible load (vertical) per harness position: 1500 N
Profile: P3
Drive rod: 5 kN fixed
Oil level kit: without
Lateral heald frame guide: individual guidance for heald frames with U-shaped lateral supports
Drawing no.: 74.048-92.001
Heald length: 382 mm
Heald slide bar: type C/22 x 1.6 mm
Centre heald frame guide: 2 x bottom
Heald frame guide pieces: slim version
Undermotion: universal type Dornier Autolub, 20 undermotions, 2 harness levers with intermediate lever, 12 mm pitch, shaft connection type Staubli DRC 10 snap closure
Central Module
Main drive motor: Dornier SyncroDrive®
Two separate servo-controlled motors directly drive the weaving machine and shedding motion
Both motors are working synchronously and speed-controlled
Determined regulation of machine acceleration via temporary control adjustment at machine start for start mark prevention
Main gearbox: bilateral reed and rapier drive
Supervised lubrication, external system with separate oil tank, change of weaving width through stepless, easily accessible rapier stroke adjustment
Programmed reverse motion for automatic finding of broken pick, synchronous movement of reverse motion with shedding motion, warp let-off and take-up motions
Reed Support
Reed support: reed drive shaft with multiple ball bearing
Reed clamping rail made of aluminium bridge elements, bolted to the reed drive shaft
Bottom reed profile 10.0 mm, reed height 105 mm
Reed drawing no. 84.002-01.21 (in case reeds are included in the delivery, please see style-specific accessories)
Auxiliary reed LHS/RHS: coarse version
Rapier race board: PA-foam covering white, 1.7 mm
Weft Insertion System
Package monitoring: APS (automatic package switching): automatic switch over to auxiliary weft feeder upon detection of yarn break between creel and weft feeder
Knot sensor: without
No. of knot sensors: 0
Weft tensioner: mechanical blade tensioner
No. of installed tensioners: 4
Set-up: double
Brake lamellas: 0.1 mm
Position: mounted on machine side frame
Compensator: without
Weft stop motion: bar-type weft stop motion, standard version, with thread stabilizer
Control device LHS with opening lever for the rapier
Control device RHS with opening bar
Weft scissors: cam driven, type: standard
Scissors: 7° micro-toothed
Weft Insertion Rapier
Rapier: weft insertion from LHS; shed remains open during complete insertion phase
Front shed geometry: 22° (nominal 24°)
Aluminium rapier head type PA3-flat, chromium-plated
Titanium clamp lever, serrated, clamping plate fine serrated shore 55
Distance piece: soft
Rapier rod: C-type
Rapier racks: carbon profile, plastic toothed rack (10 mm) reinforced with carbon fibre, with rapier rod cleaning
Rapier lubrication: automatic rapier lubrication
Compressed air 6.0 to max. 9.0 bar required
Rapier head cleaning: rapier head cleaning LHS and RHS through blowing nozzles
Rapier guiding: rapier rod air guiding system Dornier AirGuide®
Security by integrated temperature control and failsafe characteristic
Centre transfer: positively controlled tip-to-tip centre transfer ensures accurate and gentle weft handling; multiple pick insertion possible
Release lever: standard version
Weft presentation: electronic color selector ECS, stepping motor technique
Maximum no. of colors: 4
No. of color selector cassettes installed: 4
Point feed for coarse yarns
Filling presenter needle: ceramic eyelet, diameter 4.3 / 5.5 mm
Catch hook: coarse for voluminous yarns
Selvedge
Selvedge details not specified in the input
