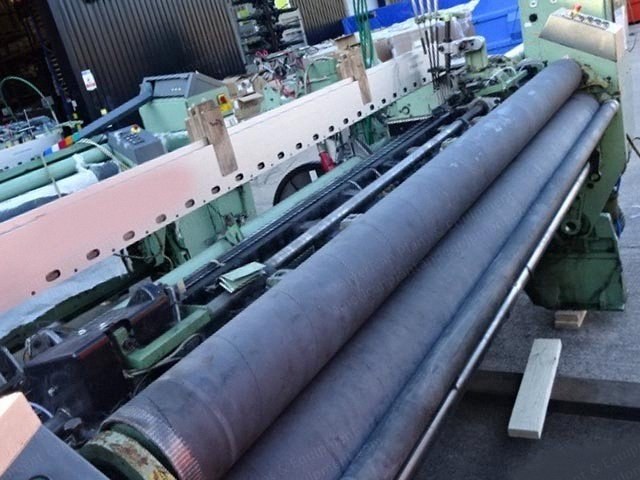

Dornier, HTV4/SD, 1992, 2100mm, Staubli Dobby 2667, 4 Colors

Dornier, HTV4/SD, 1992, 2100mm, Staubli Dobby 2667, 4 Colors

Description

  1. Overview
    1. Dornier HTV4/SD
    2. Width 2100 mm
    3. Year 1992
    4. Technical fabrics
  2. Weft and Dobby
    1. Staubli dobby 2667
    2. 16 levers capacity
    3. 4 colors selector

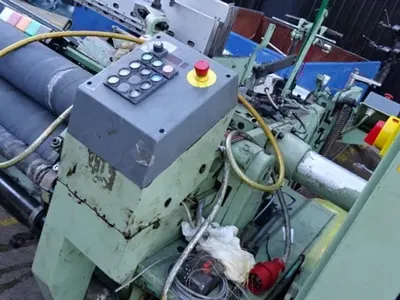

    4. At dialog 1 control panel
    5. 4 color weft selection
    6. 4 Savi-Tec B weft feeders and creel stand
    7. 2 Loepfe thermal cutters
    8. 4 warp stop bars
    9. Staubli electronic dobby – model 2667 – 16 lever capacity
    10. 9 levers installed running 4 harness
  3. Take Up and Selvedges
    1. Electronic take up and let off
    2. Leno selvedges
  4. Power Supply
    1. Power supply 400/440 volts 3 phase 50 hertz
  5. Included
    1. Loepfe thermal cutters with 2 cutters
    2. 19 heald frames (wires as fitted)
  6. Condition and Notes
    1. Sale for 3 looms supplied with no warp beam and no cloth rollers
