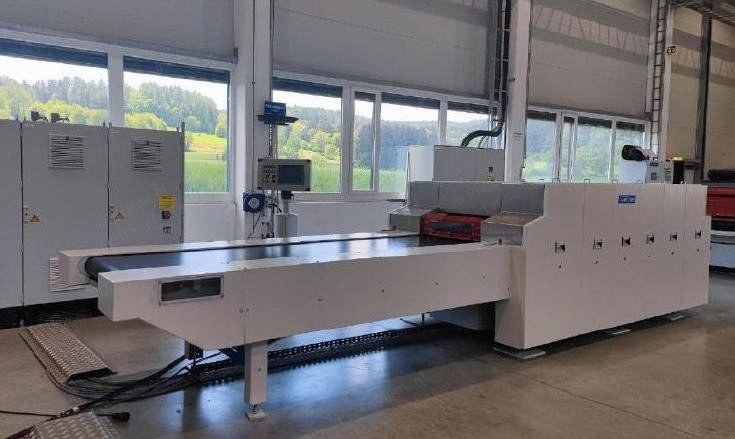

Herbert Meyer, KFK-M 700, Belt Laminating Machine, 3000mm Loading Belt, 57.6kW Heating Capacity

Herbert Meyer, KFK-M 700, Belt Laminating Machine, 3000mm Loading Belt, 57.6kW Heating Capacity

Description

  1. Overview
    1. KFK-M 700
    2. Availability: immediately
  2. Electrical Specifications
    1. Voltage: 3x400 V, 50 Hz, N, PE
    2. Heating capacity: 57.60 kW
  3. Control System
    1. Siemens S7 control with TP 1200 installed in moveable operator panel
  4. Mechanical Specifications
    1. Loading belt: 3000 mm
    2. TGL endlessly welded belts: 0.28 mm, 2-ply
    3. Surface pressure heating and cooling via air cushions, max. 1.1 N/cm²
  5. Temperature and Cooling
    1. One temperature sensor each in water flow and runback
    2. Coupling for chiller without power supply
  6. Specifications
    1. Cooling zone length: 1100mm
    2. Heating zone length: 1500mm
