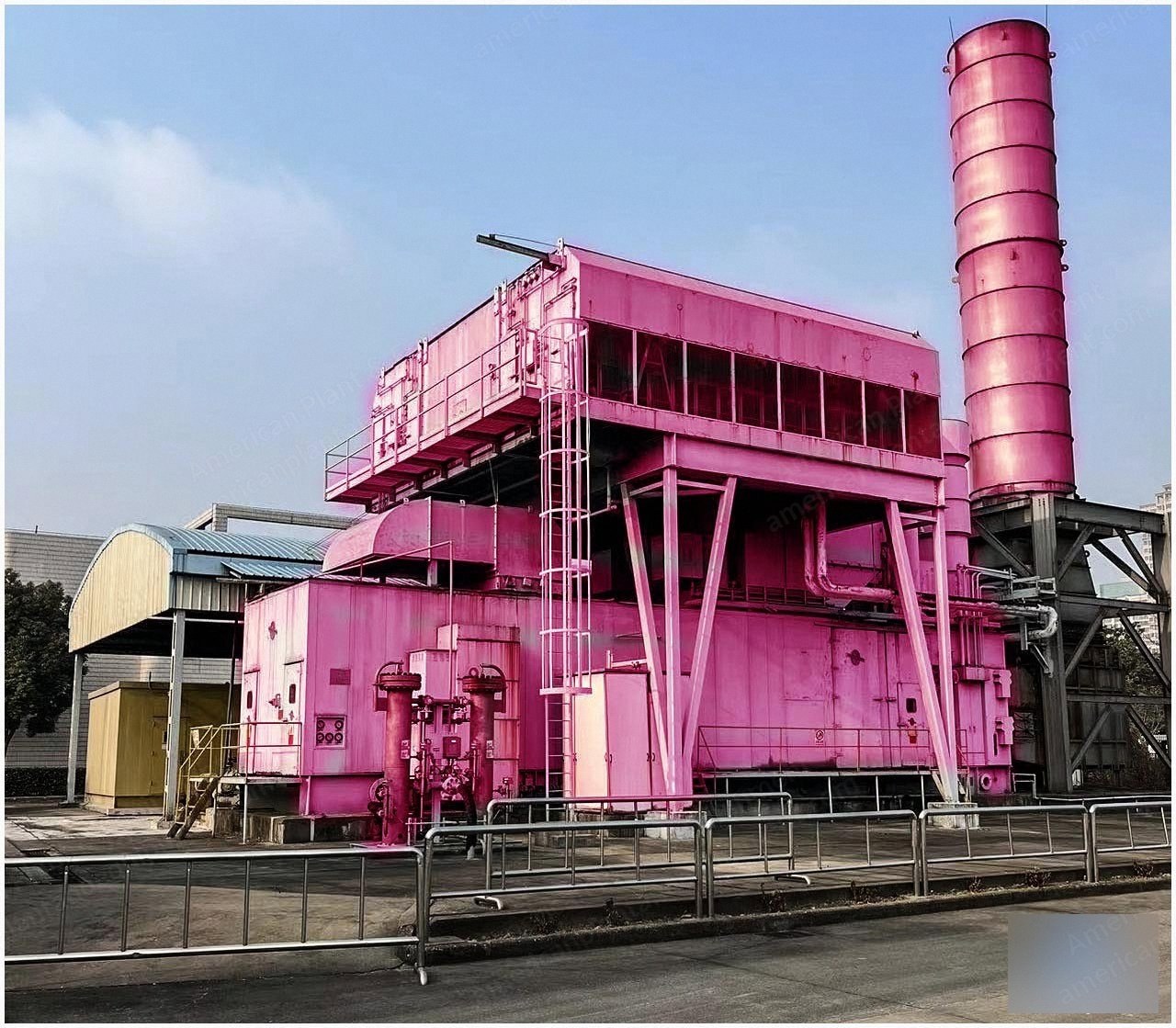

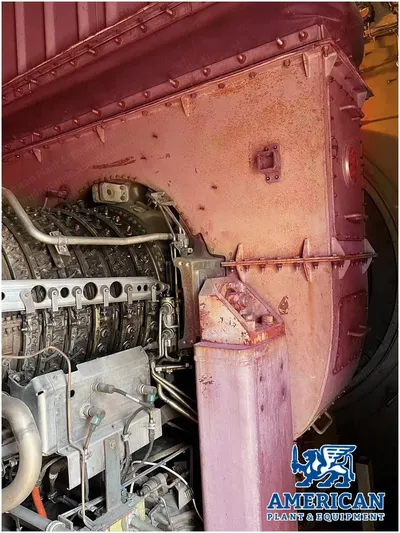

General Electric, LM6000-PA-NEG-603, Gas Turbine Unit, with Compressor and Alternator, 3600 RPM

General Electric, LM6000-PA-NEG-603, Gas Turbine Unit, with Compressor and Alternator, 3600 RPM

Description

  1. Overview

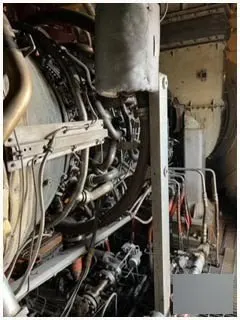

    1. Gas turbine, General Electric, model: LM6000-PA-NEG-603
    2. Brand: General Electric
    3. Has compressor and alternator (both)
  2. Compressor
    1. Type: axial air flow 230,000 acfm
    2. Low pressure compressor working speed: 3600 rpm, number of stages: 5, pressure ratio: 2.4:1
    3. High pressure compressor working speed: 10200 rpm, number of stages: 14, pressure ratio: 12:1
  3. Turbine
    1. Low pressure turbine: 3600 rpm, number of stages: 5
    2. High pressure turbine: 10200 rpm, number of stages: 2
  4. Hydraulic Starting System
    1. Hydraulic oil tank capacity: 40 gal
    2. Oil-charged pump: 12 gpm @ 350 psig
    3. Circulation pump: 56 gpm @ 5200 psig
    4. Starting motor: variable stroke
    5. Hydraulic oil specification: mil-h-17672
  5. Ventilation and Combustion Air Systems
    1. Total air flow (rated flow): 324000 acfm
    2. Gas turbine air intake volume (rated flow): 230000 acfm
    3. Ventilation volume (rated flow): 94000 acfm
    4. Generator room air flow: two fans, each 34000 acfm, one running, the other standby
    5. Gas turbine room air flow: two fans, each 60,000 acfm, one running and the other standby
  6. Gas Turbine Oil System
    1. Fuel tank capacity: 150 gal
    2. Oil supply filter rating: 6 micron
    3. Return filter rated: 6 micron
    4. Cooling: two shell and tube water/oil heat exchangers
    5. Lubricant specification: mil-l-23699
  7. Gearbox
    1. Brand: Lufkin
    2. Model: NFVQ2419G
    3. Serial number: 9930
    4. High speed gear: 3600 rpm
    5. Low speed gear: 3000 rpm
    6. Coupling: Zurn model 23-10
  8. Gas Turbine Water Washing System
    1. Brand: Rochen
    2. Tank capacity: 80 gal
    3. Instrument air requirements: 85-120 psig, filtered to an absolute value of 3 microns
  9. Fire Protection System
    1. Brand: Wilson Fire
    2. Model: 800MRF-1425
  10. Diesel Purifier (Centrifugal Separator)
    1. Processing capacity: each machine can process up to 50 gpm of diesel fuel
    2. Number of separators: 3 (2 are in operation, 1 is in stock)
    3. Brand: Centrico
    4. Model: OSB 35-02-066/335
  11. Fuel Supply System
    1. Diesel supply: two three-screw pump model 3GR 5 0×2, power 5.5 kW, pressure 6 bar; two gear pump model 86200RIWO39A-1, power 83 hp, pressure 1400 psig, brand IMO
    2. Natural gas supply: a natural gas booster model MH62, type reciprocating two-stage booster, rated power 860 kW, brand Cooper Superior USA; drive motor model AECK-PA001, voltage 6000 volts, brand TECO Power, 915 kW

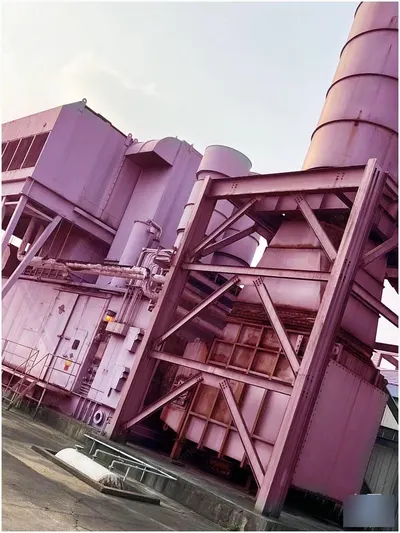

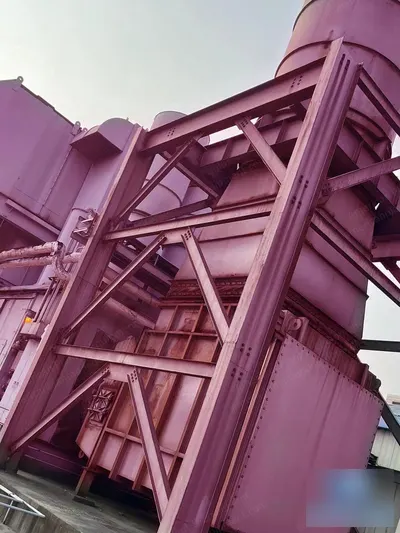

  12. Exhaust System
    1. Brand: Braden
    2. Design flow: 8414 acfs
    3. Exhaust temperature: 470°C
  13. Air Management System
    1. Oil-fired boiler (1 unit) model WNSA-1.25-Y, brand Wuxi Industrial Boiler Factory
    2. Centrifugal refrigerator (2 units) model 19EF292975DP-2, brand Carrier
    3. Heat exchange device (1 set)
  14. Air Compressor System for Gas Turbine
    1. 2 air compressors
    2. Instrument air compressor skid model 1-U2/A40/90MD, brand Airdyne
    3. Air compressor model GA18, brand Atlas Copco (Wuxi)
  15. Circulating Cooling Water System
    1. Single-stage single-suction centrifugal water pump (2 units) model IS100
  16. Specifications
    1. Serial number: 185-142
