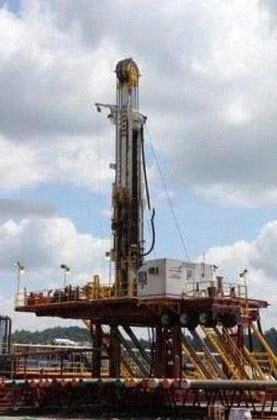

Schramm, T500XD, 2013, 500,000 lbs Hook Load, 1500 HP, 10903 Hours

Schramm, T500XD, 2013, 500,000 lbs Hook Load, 1500 HP, 10903 Hours

Description

  1. Overview
    1. Category: Drilling rigs in Texas
    2. Year made: 2013
    3. Condition: Used
    4. Hours: 10,903
    5. Horsepower: 1,500 hp
    6. Power: Mechanical
    7. Wells drilled: 16
    8. Last well drilled: March 2016
    9. Static hook load: 500,000 lb
  2. Power Unit
    1. (2) MTU 12V-2000 engines, 760 bhp (567 kW) @ 1,800 rpm with electric start
    2. (2) Dual core, side by side cooling package, 130°F (54.4°C) ambient rating
    3. (2) 220 gallon (930 l) diesel fuel tanks
    4. (2) Hydraulic pump systems, with each including (8) piston pumps and (1) gear type pump
    5. (1) 1,000 gallon (3,785 l) hydraulic tank with (18) twin element filters

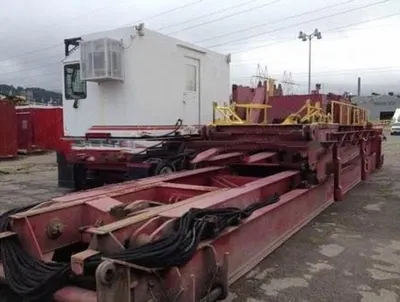

  3. Sub-Base and Walking System
    1. Floor height: 22 ft (6.7 m)
    2. Clearance: 19 ft (5.8 m) under table bushing
    3. Ground pressure dead load: 26 psi (1.8 bar)
    4. Ground pressure live load: 57 psi (3.9 bar)
    5. Ground pressure walking, mast down: 41 psi (2.8 bar)
    6. Dedicated diesel engine hydraulic pump
    7. 750 gallon (2,839 l) hydraulic tank included
  4. Telemast System
    1. Top head travel: 56 ft (17.07 m)
    2. Hook load: 500,000 lb (227,227 kg)
    3. Pulldown capacity: 80,000 lb (36,363 kg)
    4. Pulldown speed loaded: 0-180 fpm (0-55 m/min)
    5. Pulldown speed free head: 0-200 fpm (0-61 m/min)
    6. Actual hoist speed (both engines): 0-130,000 lb @ 136 fpm (0-58,967 kg @ 41 m/min)
    7. 101,000-285,000 lb
