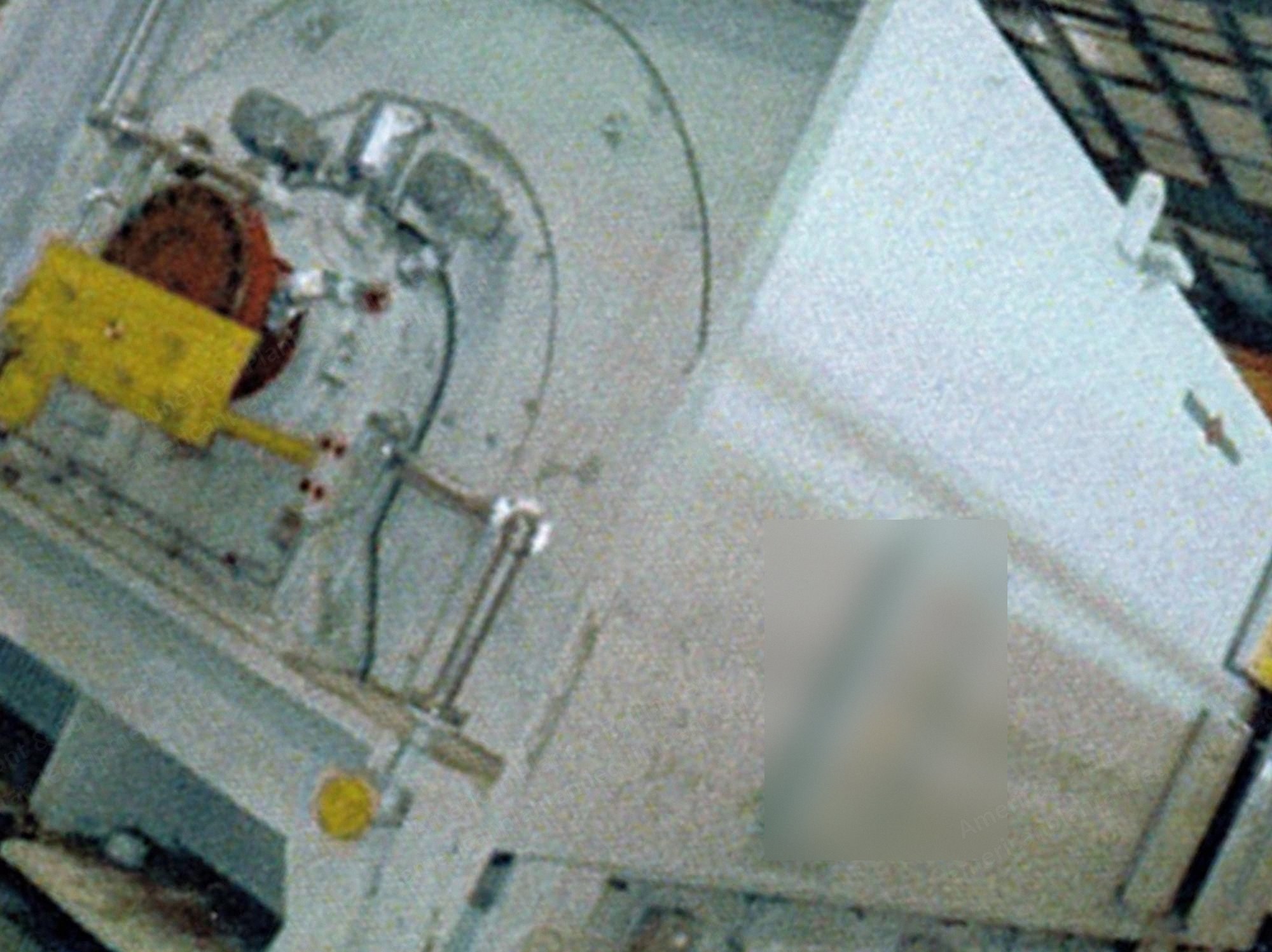

General Electric, 7EA, 2014, 84.6MW, 60 Hz, Gas Turbine Generator Packaged Power Plant

General Electric, 7EA, 2014, 84.6MW, 60 Hz, Gas Turbine Generator Packaged Power Plant Sold

Description

  1. Overview
    1. General electric 7ea gtg packaged power plant
    2. Year: 2014
    3. Manufactured by general electric in 2014
    4. Currently in packaged condition
  2. Condition And Status
    1. Condition: new never used
    2. Operational status: disconnected
    3. Availability: disconnected / immediate
    4. Warranty by meg: no
    5. Warranty details: exp. dec 2018
    6. This unit will be refurbished and they will provide warranty as long as buyer takes out ltsa with them to make sure turbine is maintained correctly
    7. The combustion system in the turbine will need to be replaced and that is included in the price
  3. Generator Specifications
    1. Generator make: ge (general electric)
    2. Generator model: 7a6
    3. Generator serial #: 43x x 27x
    4. Electric capacity: 102 mw
    5. Hertz: 60 hz
    6. Generator: ge/andritz
    7. Frame: bdax (brushless)
    8. Excitation: ge ex2100
    9. Frequency/power factor: 60 hz/0.85 pf
    10. Rated output: 101.8 mva
    11. Cooling: air-cooled
    12. Terminal voltage: 13.8 kv (2 pole, 3-phase, wye conn.)
  4. Driver Specifications
    1. Driver types: natural gas
    2. Driver make: ge (general electric)
    3. Driver model: 7e.03
    4. Max hp: 122000 at 32' f and sea level
    5. Rated rpm: 3600
    6. Frame 7ea gas turbine model pg7001ea (7e.03)
    7. Dry low nox (for dln 1.0 combustion system*)
    8. Natural gas single fuel supply
    9. Design site output/heat rate: 84.6 mw at 1916 ft and 32°f; 91 mw at 0 ft and 32°f
    10. Includes ge pip package (minus stg 3 aero), 2055°f firing temp
    11. Inlet/exhaust pressure drop: 3.5/5.5 inches of h2o
    12. Hours: factory test fire only, i.e. new
    13. Control system: mkvie speedtronic tmr
  5. Included Auxiliary Equipment
    1. Air cooled glycol heat exchangers c/w vfd’s, filters, glycol pumps, gsu transformer, glycol expansion vessel
    2. 52g synchronizing breaker compartment included @ 13.8 kv incl. all protection relays etc.
    3. Stored in accordance with ge's storage/preservation requirements
  6. Additional Notes
    1. The gt is 83 mw. they call it 102 mw for the heat value in hrsg. no stg.
    2. Only about half of the hrsg equipment is there so you may want to ignore. it is not figured into the price. if you want what is there it would be separate negotiation.
