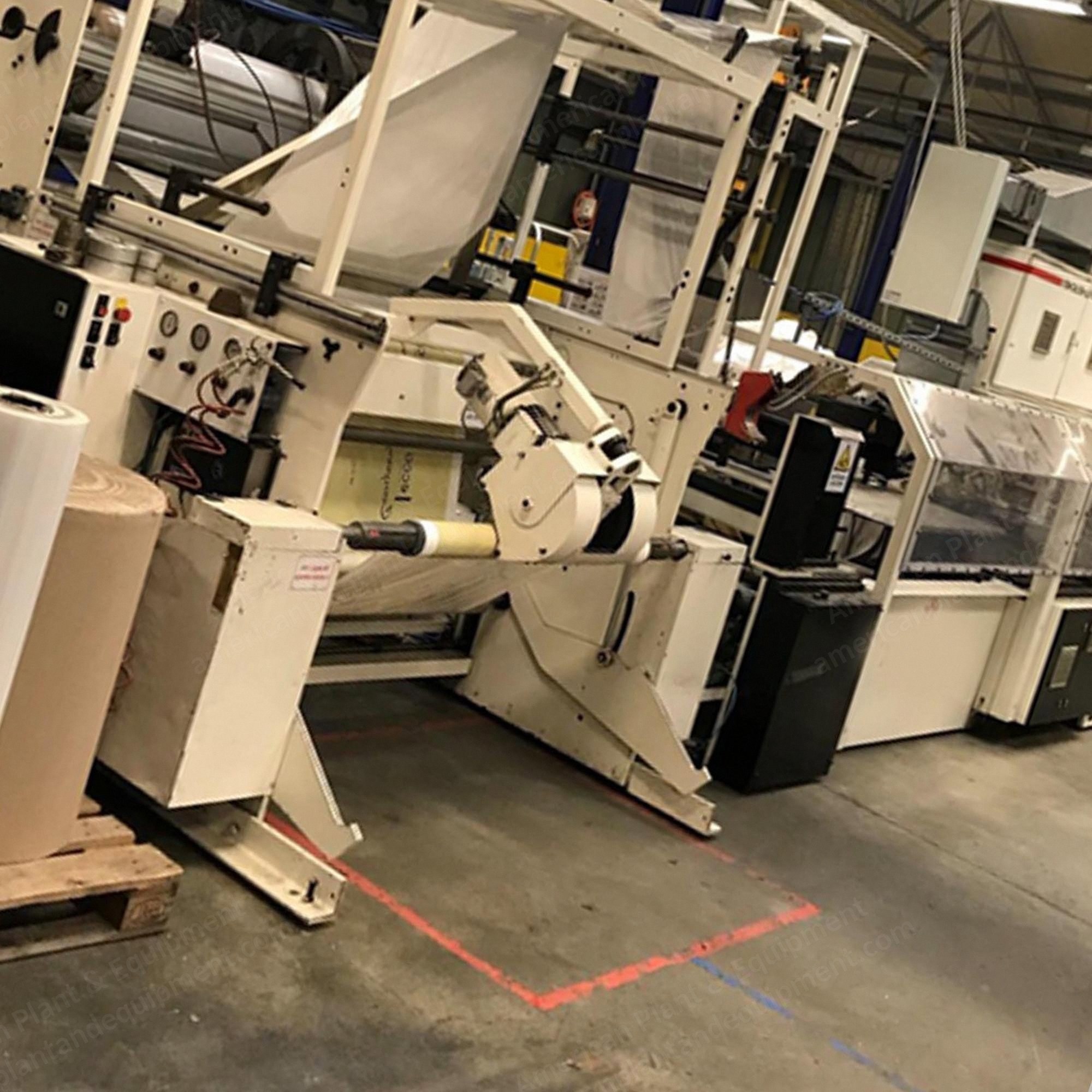

Windmoller & Holscher, Polyrex SF 3708, 1999, Loop Handle Bag Making Machine, Max Width 1400mm, Speed 60-150 pcs/min

Name: Windmoller & Holscher, Polyrex SF 3708, 1999, Loop Handle Bag Making Machine, Max Width 1400mm, Speed 60-150 pcs/min
Brand: Windmoller & Holscher
SKU: TT-5035

‹ Go Back Next Product ›

Description

Machine Overview
1. Windmöller & Hölscher loop handle stt punch
2. Year 1999
Material and Foil Types
1. Material types: LDPE, LLDPE (Borstar), HDPE
2. Foil types: sleeve, half sleeve, foil, bottom-top gusset
3. Bag types: punch, sealing loop handle; longitudinally sealing-hot air (top folded-upper switch)
Specifications
1. Unwinder width maximum: 1400 mm
2. Sealing type: Shoper-teflon sealing
3. Width of the sealing bar: 800 mm
4. Machine speed: minimum 60 pcs/min, maximum 150 pcs/min
5. Bag width: minimum 250 mm, maximum 720 mm
6. Thickness: minimum 25 my, maximum 100 my
7. Bag height: minimum 250 mm, maximum 750 mm
8. Bottom gusset: minimum 27 mm, maximum 100 mm
9. Keeping the foil through the machine: double-sided fife (on the machine)
10. Core diameter: Ø 76 mm
11. Roll diameter: maximum 1300 mm
12. Printed foil: photocell
13. Sealing bar for bottom gusset bag: yes
Technical Documentation
1. Electrical plan
2. Instructions for use 1
3. Instructions for use 2
4. Instructions for use (drawings of assemblies)

Capacity	60 - 150 pcs/min
Foil Type	Sleeve, half sleeve, foil, bottom-top gusset
