NovaStar, CR177, New, 1500mm to 3500mm Working Width, Single-Cylinder, Double-Doffer (New)

Description

  1. Overview
    1. Fibers carding machine / blending machine
    2. Condition: New
    3. Working experience: 32 years' experience
    4. Production capacity: 100 sets per month
  2. Specifications
    1. Voltage: 480V/60Hz 3 phase, can be customized
    2. Total power: 10.5kW to 40.5kW
    3. Power: 10.5kW to 40.5kW
    4. Capacity: 20 to 40g/m
    5. Output weight: 20 to 40g/m
    6. Max speed: 130m/min
    7. Fiber size: 1.5D-70D, 25 to 200mm
    8. Width: 1500mm, 2000mm, 2300mm, 2500mm, 3000mm, 3500mm
    9. Cylinder diameter: Φ1508mm
    10. Doffer diameter: Φ708mm
    11. Transfer roller diameter: Φ508mm
    12. Licker-in diameter: Φ408mm
    13. Feeding roller diameter: Φ408mm
  3. Features
    1. Suitable for carding chemical fiber and blended fiber after opening to be evenly distributed fiber network, used for the next process
    2. Adopts single-cylinder combing, double-doffer double-random (clutter) roller delivery, double-roller stripping cotton, with strong carding ability and high production
    3. All cylinders are modulated and qualitatively processed, then precision machined
    4. Radial runout is less than or equal to 0.03mm
    5. Feed roller is paired with upper and lower two groups, frequency control, independent transmission, equipped with metal detection device, with self-stop alarm reversing function
  4. Customization
    1. Machine painting color: made according to your need
    2. Transport package: standard package, made according to customer need
  5. Warranty
    1. Refund available up to 30 days after receipt of the products

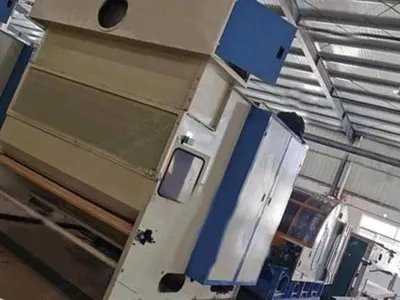

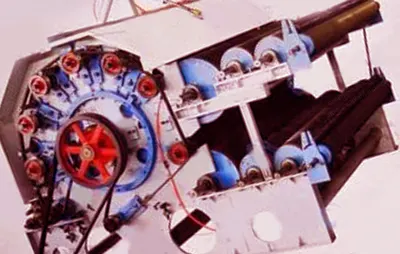

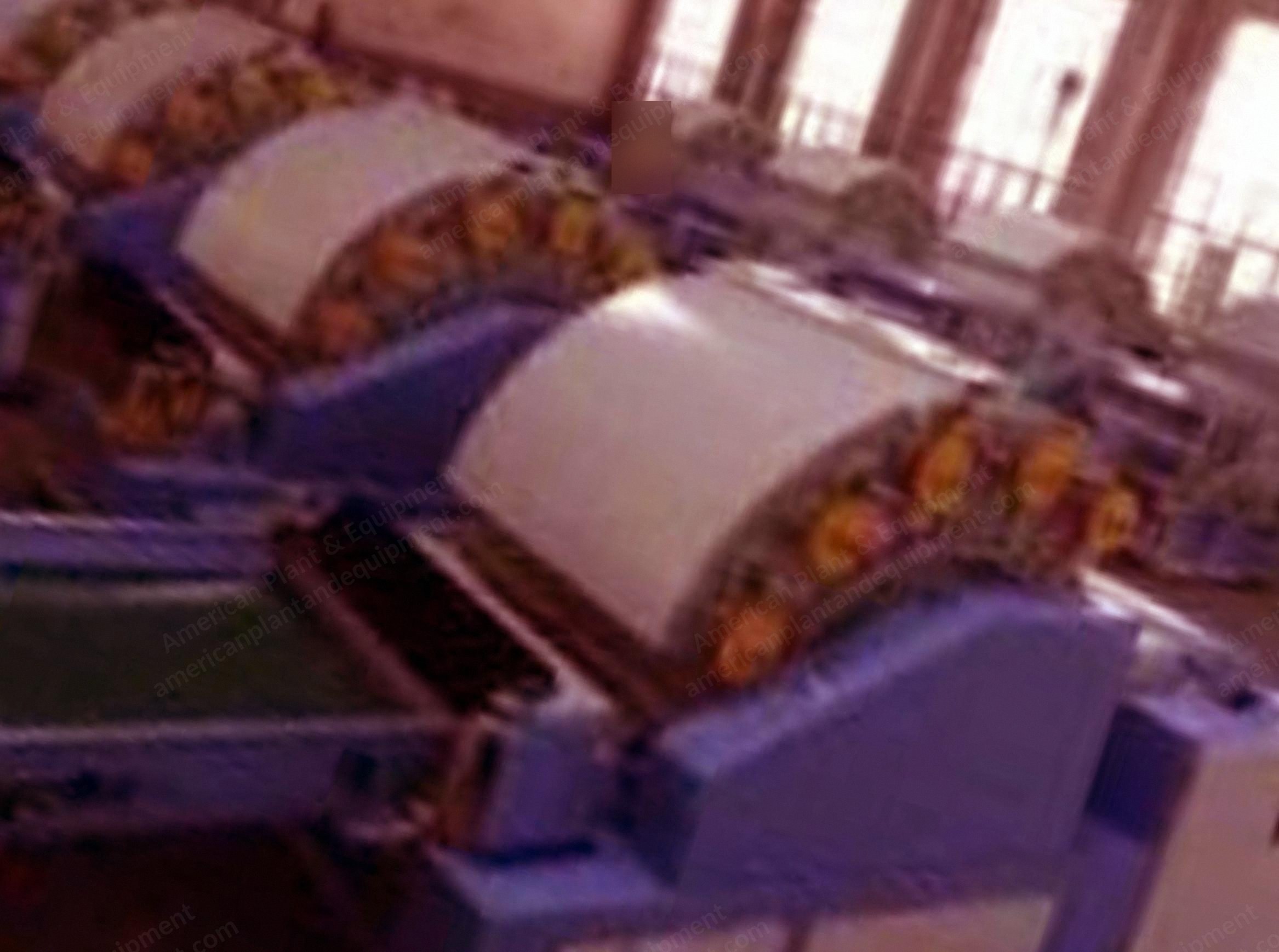

  6. Images
