Temafa, Spinnbau, Hergeth, Automatex, Needle-Punched Nonwoven Production Line, 1992 to 2024, 2500mm, 3000 kg/h

Temafa, Spinnbau, Hergeth, Automatex, Needle-Punched Nonwoven Production Line, 1992 to 2024, 2500mm, 3000 kg/h

Description

  1. Overview
    1. Production line for nonwoven fabric with weights from 200 to 1000 g/m².
    2. Line efficiency: 300 kg/h.
    3. Final working width of the nonwoven fabric: 2500 mm.
    4. Power supply: 400 V, 50 Hz.
    5. Installed power: 62 kW.
    6. The line is equipped with modern control in control cabinets.
    7. Necessary area for the line: length 17000 mm, width 10000 mm.

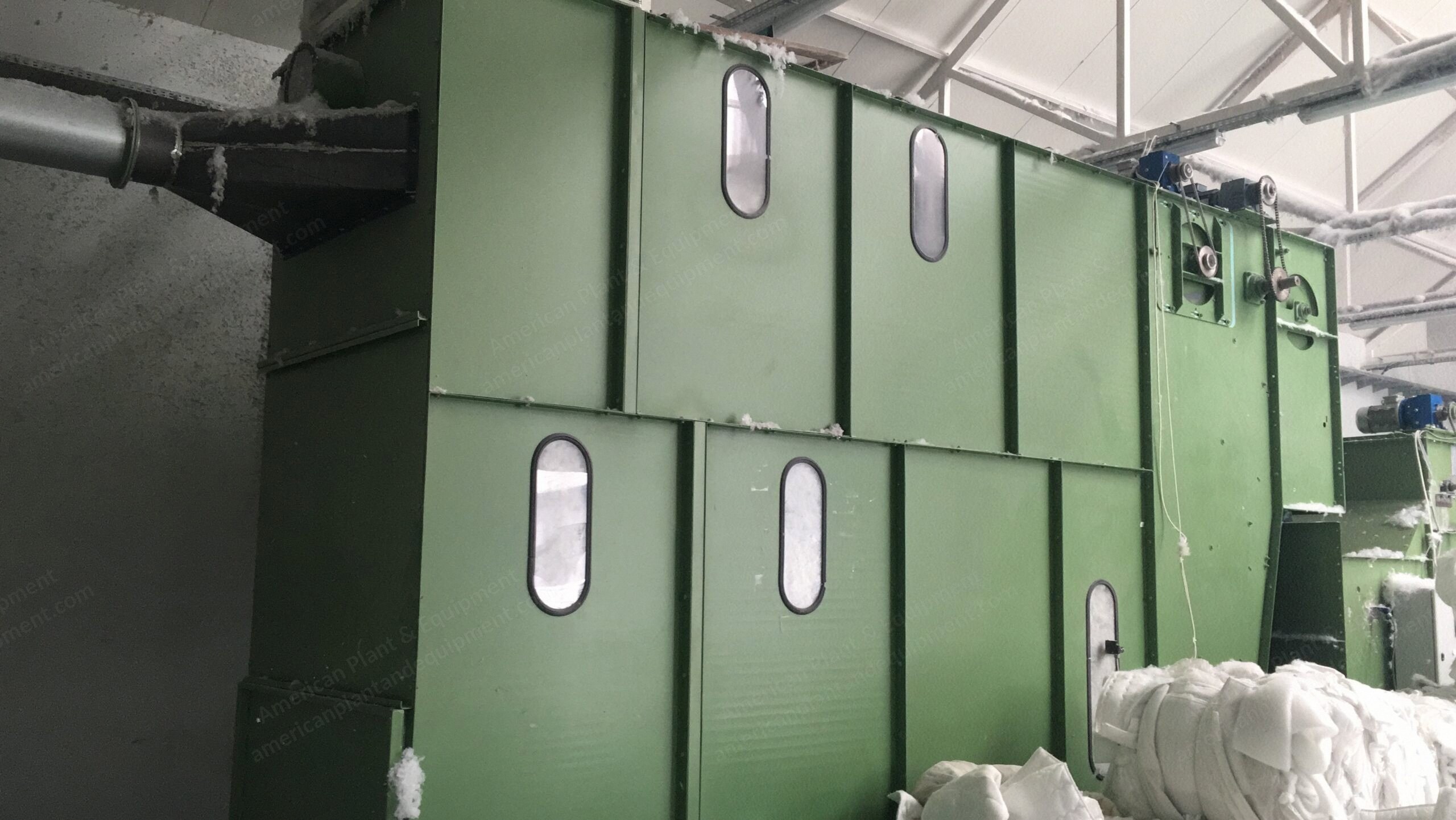

  2. Item 001: Mixing Chamber
    1. Mixing chamber with a pneumatic scale on strain gauges for portioning the load onto the carding machine.
    2. Brand: Temafa.
    3. Year: 1999.
    4. Mechanical and electrical modernization in 2021 and 2024.
    5. Length: 5000 mm.
    6. Width: 3000 mm.
  3. Item 002: One Doffer Carding Machine
    1. Brand: Spinnbau.
    2. Mechanical and electrical modernization in 2023 to 2024.
    3. Working width: 2200 mm.

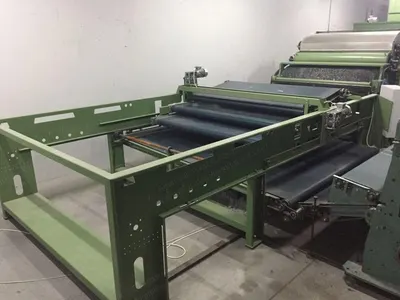

  4. Item 003: Cross-Lapper
    1. Brand: Hergeth.
    2. Mechanical and electrical modernization in 2021.
    3. Input: 2500 mm, output: 3000 mm, up to 50 m/min.

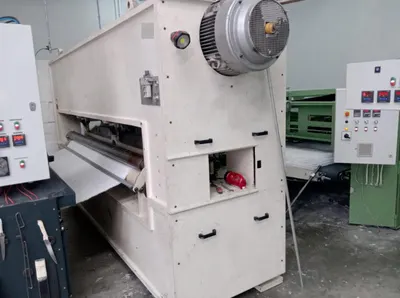

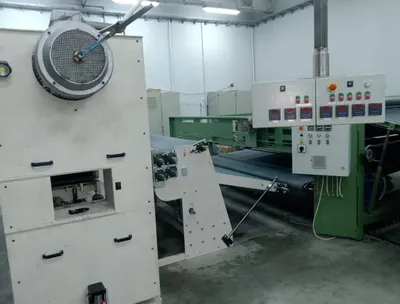

  5. Item 004: Nonwoven Needle Loom
    1. Brand: Automatex, Italy.
    2. Year: 2008, with new CBF.
    3. Total modernized mechanically and electrically in year 2023 to 2024.
    4. Serial number: 1585/C.
    5. Working width: 2700 mm, needling from top.
    6. Stroke: 60 mm, 1 x 5000 needles/m.
    7. Installed power: 31 kW.
    8. Working speed: up to 1100 rpm.
    9. Includes 2 needle boards in the machine and 2 spare needle boards.
    10. The machine has been renewed recently: new bearings, new sleeves, new oil seals (simmerring), etc.
    11. Excellent technical solutions - as simple as possible, thus very effective, durable/almost flawless.
    12. 1 control cabinet on the current level of technology.

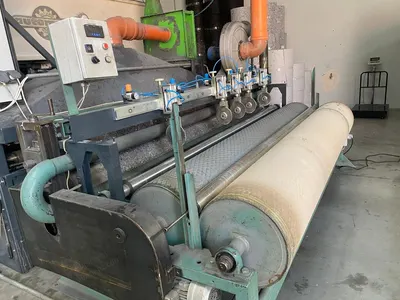

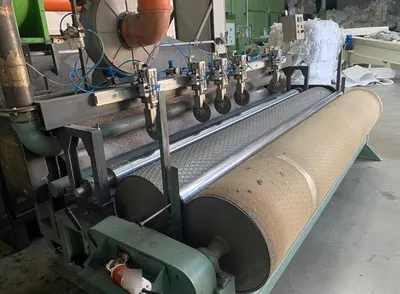

  6. Item 005: Longitudinal Cutting and Winding Machine
    1. For non-woven fabrics, year 2023.
    2. Working width: 2500 mm.
    3. Consisting of round longitudinal cutting knives - 5 pcs.
    4. Each knife made of special hardened machine steel.
    5. Each knife can be moved separately to set the desired cutting width of material strands/ribbons.
    6. Pneumatic pressure using pneumatic actuators for each knife separately.
    7. Hardened pressure roller under the knives.
    8. On request, new knives can be added and the working width of the entire longitudinal cutting device can be increased or decreased as desired.
    9. The cutting machine's drive is synchronized with the end winder of the production line via a chain and gear.
  7. Item 006: Needle Loom with New CBF (Addition to the Line)
    1. Brand: Antonio Guasch Grano S.A., Spain.
    2. Year: 1992.
    3. Completely renovated mechanically and electronically in year 2024, April.
    4. Working width: 2600 mm, needling from top.
    5. Stroke: 60 mm, 1 x 3000 needles/m.
    6. Power supply: 400 V, 50 Hz.
    7. Installed power: 11 kW.
    8. Working speed: up to 800 rpm.
    9. Controlled by inverter, input belt conveyor, needle plates leaded by sleeves (very practical solution).
    10. Very simple (means: trouble-free) eccentric motion transmission, spare needle plate.
    11. The machine has been renewed recently: new bearings, new sleeves, new shaft, new plates, etc.
    12. Practically the entire machine is new, only the frame is old.
    13. Just switch on and work.
    14. Machines of the type are highly praised by our customers.
    15. Excellent technical solutions - as simple as possible, thus very effective, durable.
    16. Almost flawless in comparison with solutions of other European manufacturers.
