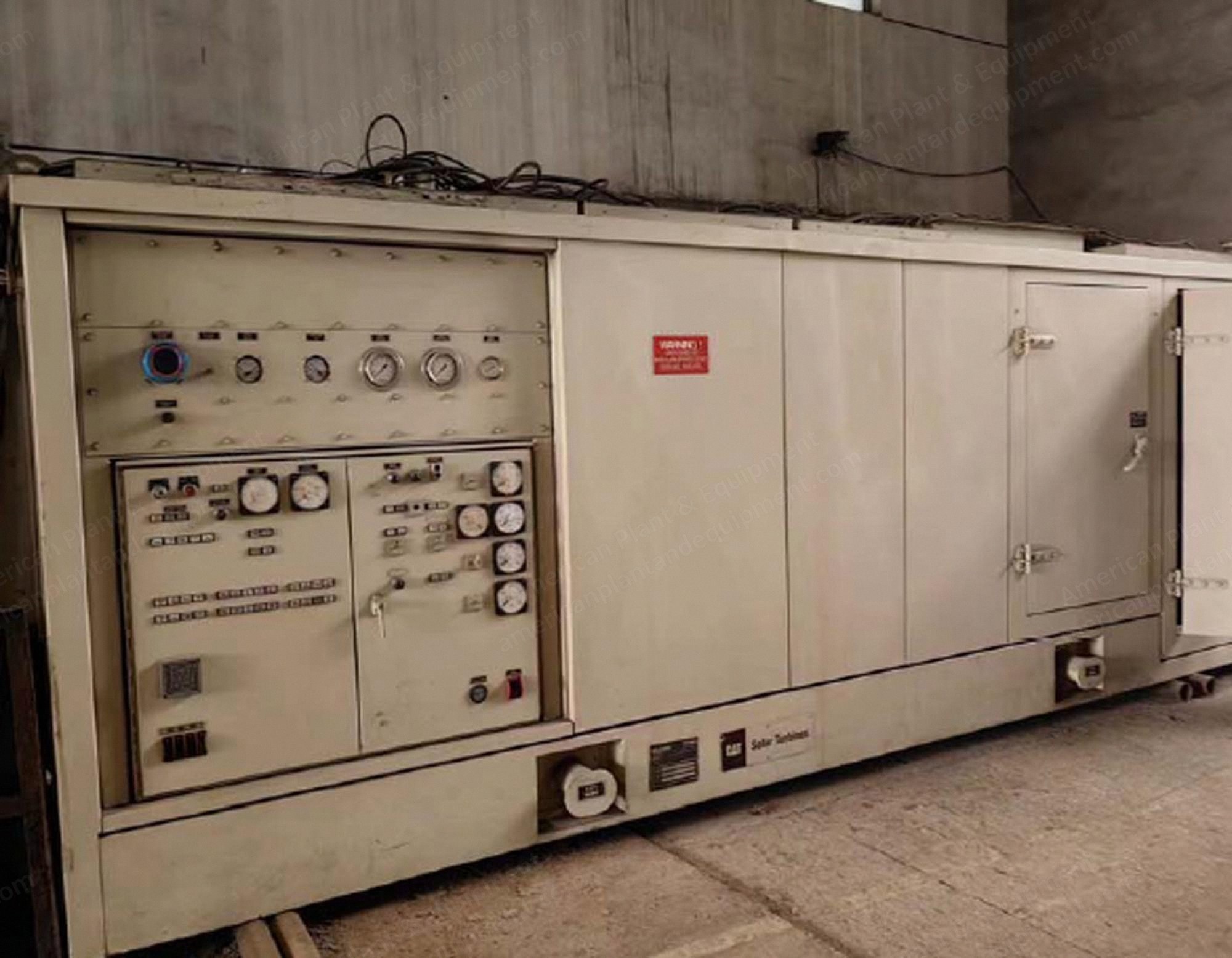

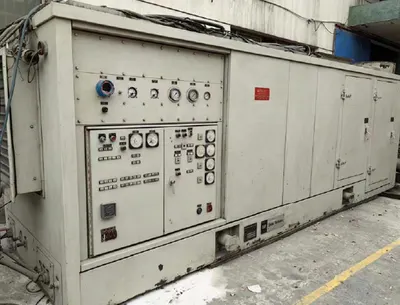

Solar Turbines, Solar S20, 2007, 1214kW, 50Hz, Dual Fuel, 380V

Solar Turbines, Solar S20, 2007, 1214kW, 50Hz, Dual Fuel, 380V Sold

Description

  1. Overview
    1. Project: Power generation and standby units for hospitals
    2. Year of manufacture: 2007
    3. Manufacturer: Solar Turbines
    4. Model: Solar S20
  2. Specifications
    1. Power: 1214 kW
    2. Rotation speed: 22562 rpm
    3. Control system: A-B PLC-5/20
    4. Fuel: Dual fuel (natural gas + diesel)
    5. Voltage: 380 V
    6. Frequency: 50 Hz
    7. IP protection: IP 54
    8. Weight: 14 tons
    9. Dimension (L x W x H): 6000 x 1800 x 2900 mm
    10. Weight: 14000
  3. Condition
    1. Total operation hours: 5007.8 / 64.2 / 308.1
    2. Overhaul: 0
    3. Operation hours after overhaul: 0 turbine
  4. Scope of Supply

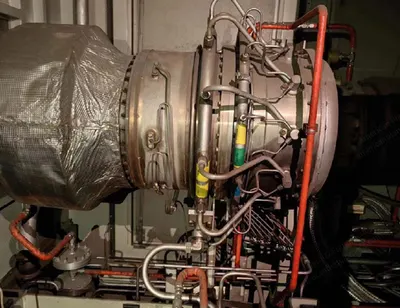

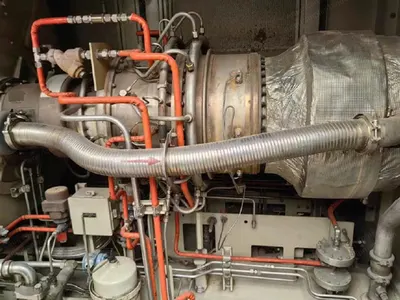

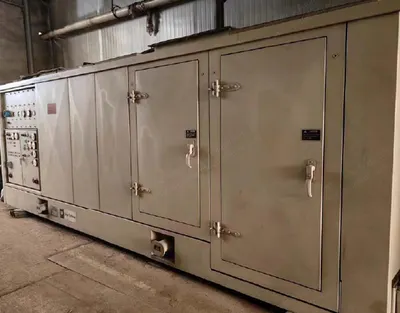

    1. Main engine: Turbine, gearbox, generator, including base frame, enclosure
    2. Fuel regulating system: Shut-off valve, regulating valve, metering, etc.

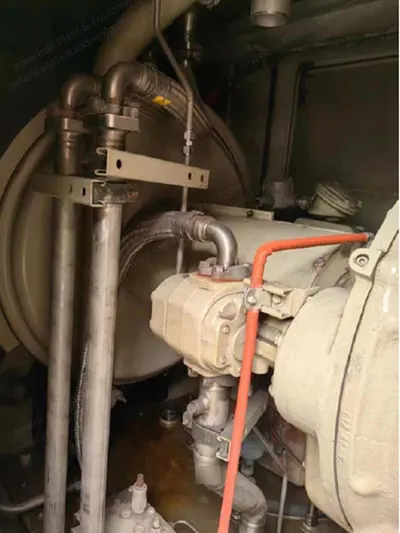

    3. Lubrication and cooling system: Lubricating oil pump, lub oil cooler (oil mist separator needs to be matched)
    4. AC/DC system: No, needs to be matched
    5. Turbine air intake system: Air intake filter cover (air intake silencer, air ducts need to be matched)
    6. Ventilation system: No, needs to be matched
    7. CO2 fire extinguishing system: Detector, alarm, control system, piping, etc. (CO2 bottle cabinet needs to be matched)

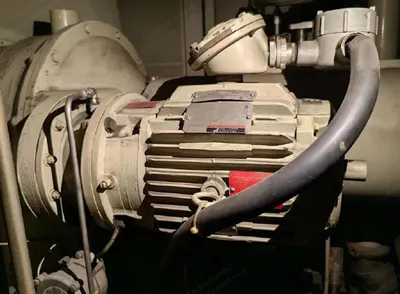

    8. Startup device: Starting motor
    9. Control system: Control cabinet, control system hardware and software
  5. Quantity
    1. 3 sets
