Alstom, GT13E2, 300 MW Gas Turbine Power Plant, 50 Hz

Alstom, GT13E2, 300 MW Gas Turbine Power Plant, 50 Hz

Description

  1. Overview
    1. 300 MW gas turbine
    2. Gas turbine with generator
    3. Gearbox: GT13E2, dual fuel, 5 Alstom stage, 148.85 MW
    4. Generator: 50WY21Z-078 with static excitation
    5. Alstom/Zuilemae RB fuel gas starting system
    6. Alstom/Allweiler lubrication system
    7. GT exhaust: Alstom duct + damper
    8. Alstom stack

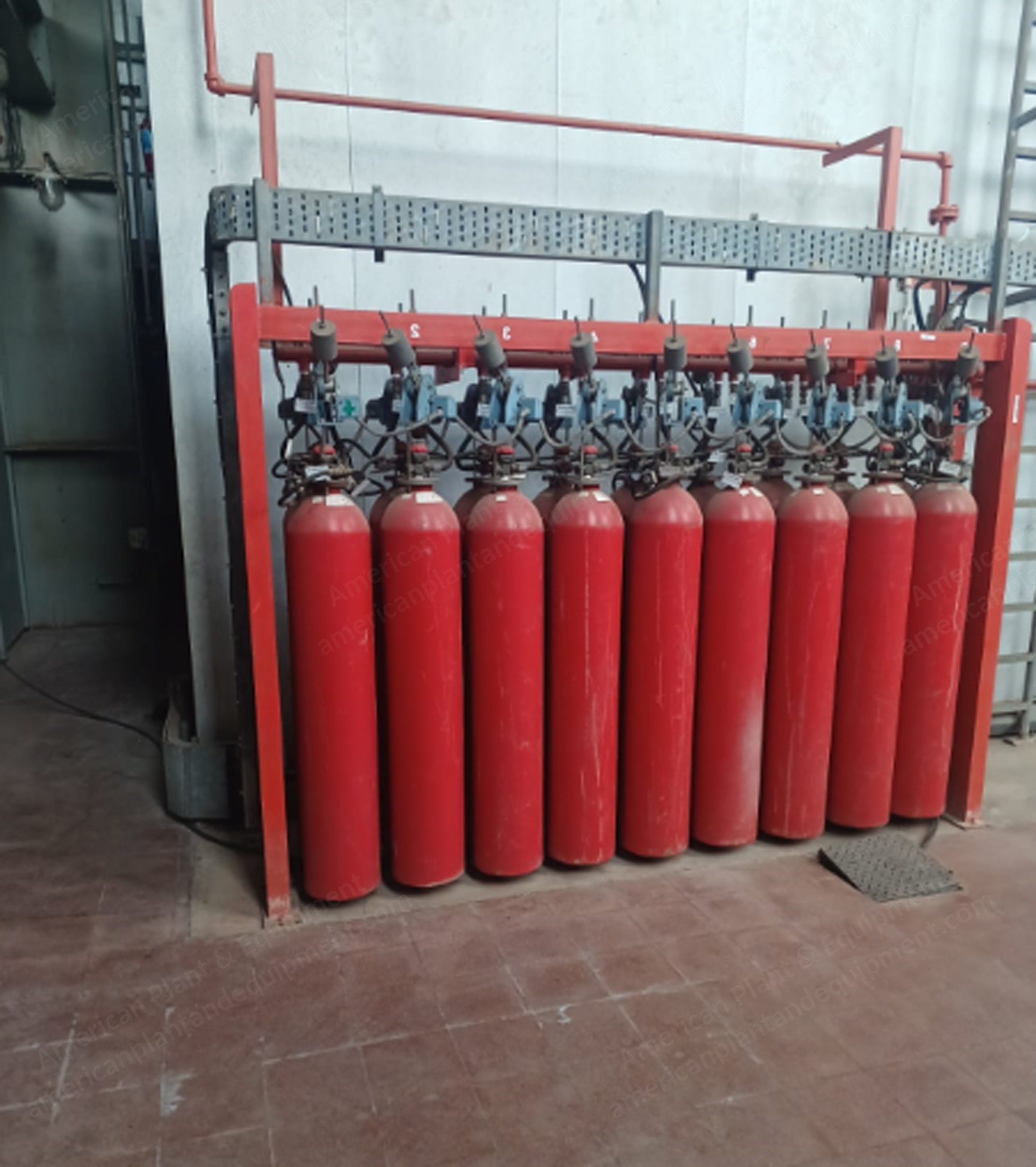

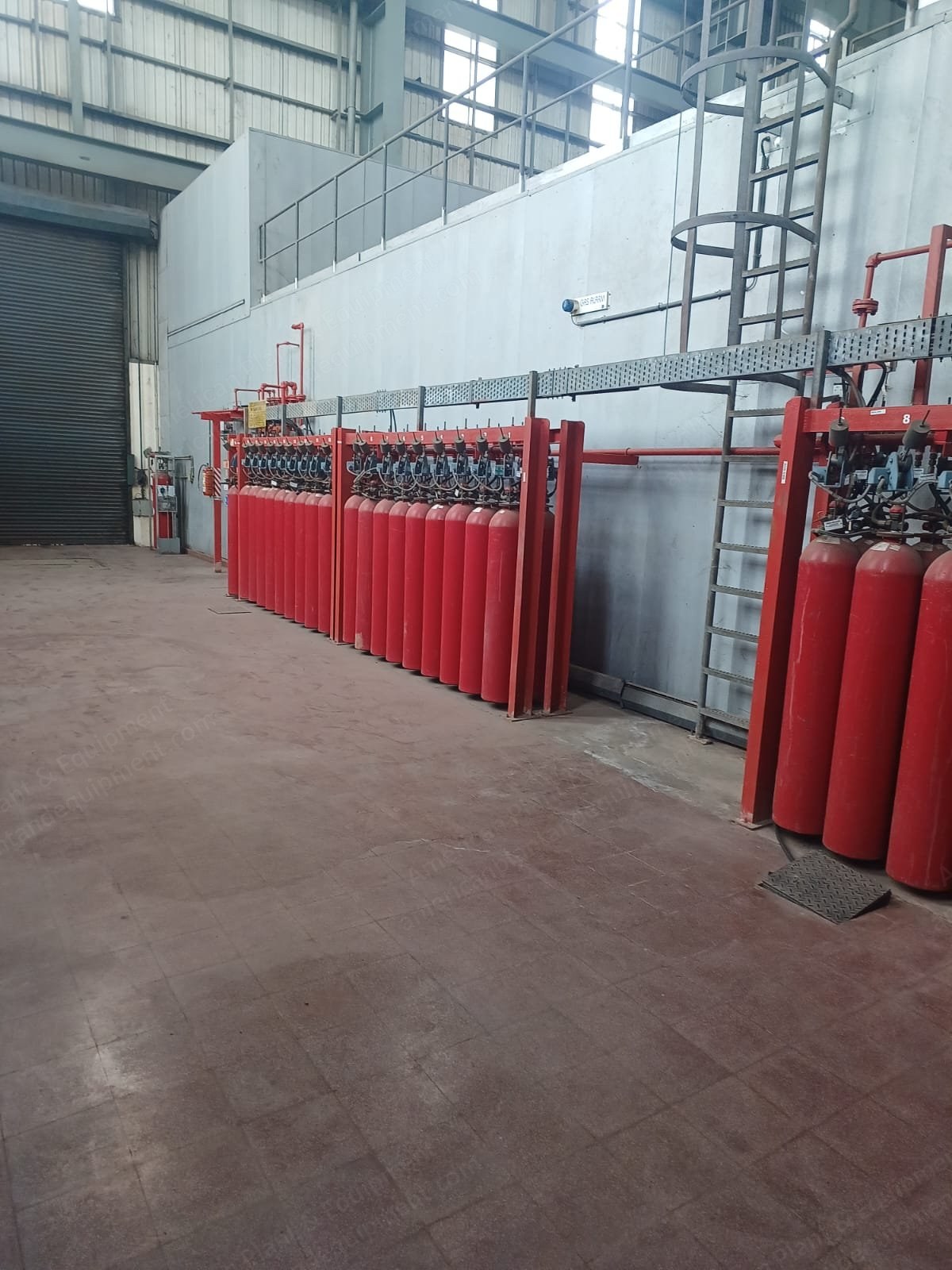

    9. Alstom CO2 flooding: 56 cylinders, 28 Gingekerr system: standby
  2. Heat Recovery Steam Generator
    1. Deaerator: designed for GT exhaust temp / flow of 541 deg C and Alstom 497 kg/sec
    2. HP feed water pumps: Alstom/Sulzer, designed for GT exhaust temp/flow of 541 deg C and 497 kg/sec
    3. Feed control station: designed for GT exhaust temp/flow of 541 deg C and Alstom 497 kg/sec
    4. W.C.: designed for GT exhaust temp / flow of 541 deg C and 497 kg/sec
    5. Alstom condenser
    6. Alstom condensate extraction pumps: designed for GT exhaust temp / flow of 541 deg C and 497 kg/sec
  3. Steam Turbine and Generator
    1. Alstom steam turbine & generator: 80 MW, 3 stage HP/LP/IP
    2. Alstom turbine, lube oil systems, jacking pumps
    3. Gearbox, condensate system
    4. Alstom generator: 50WY18Z-078

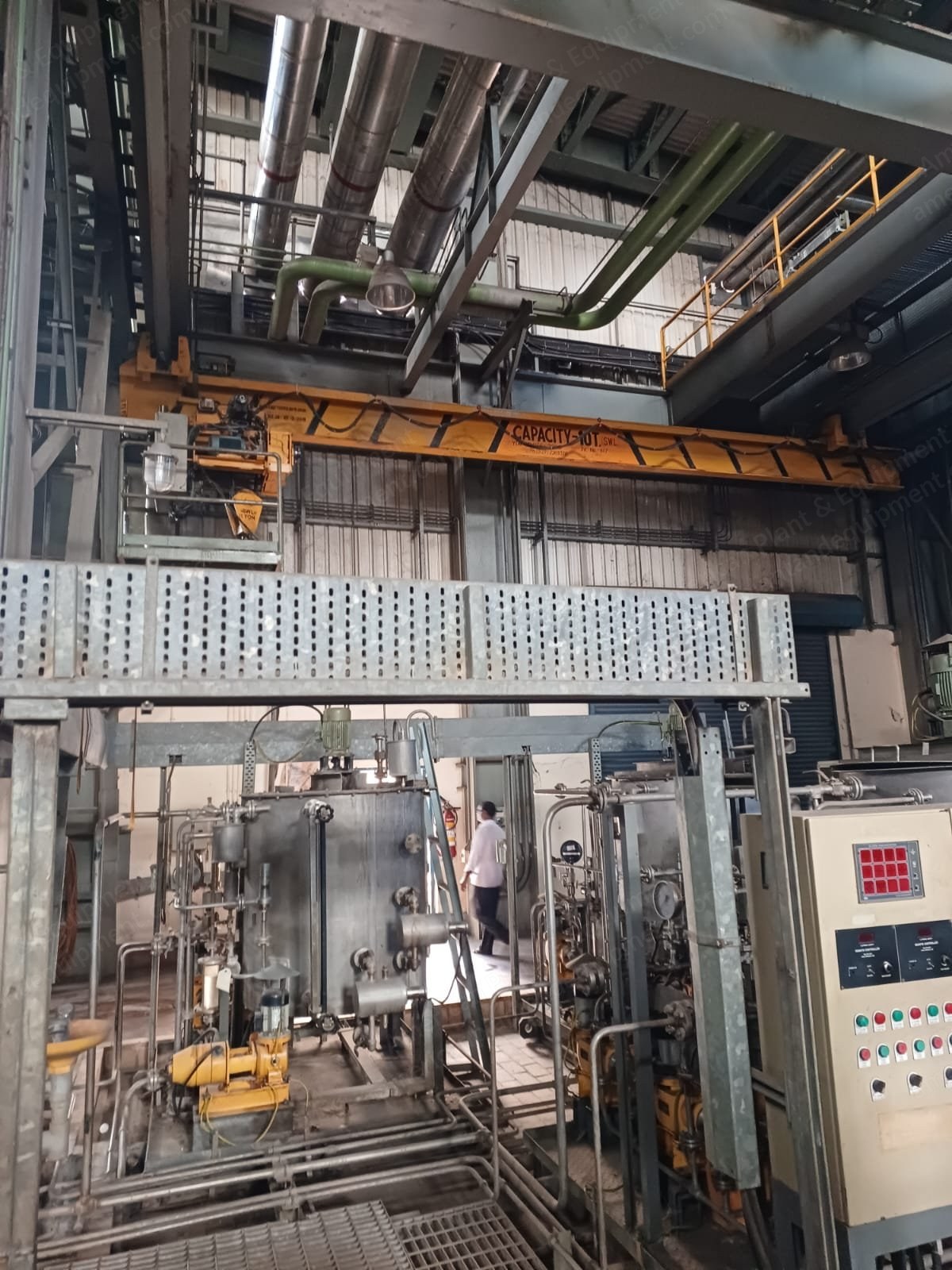

    5. Unique EOT crane: 87/20 MT
    6. Alstom condenser
  4. Auxiliary Systems

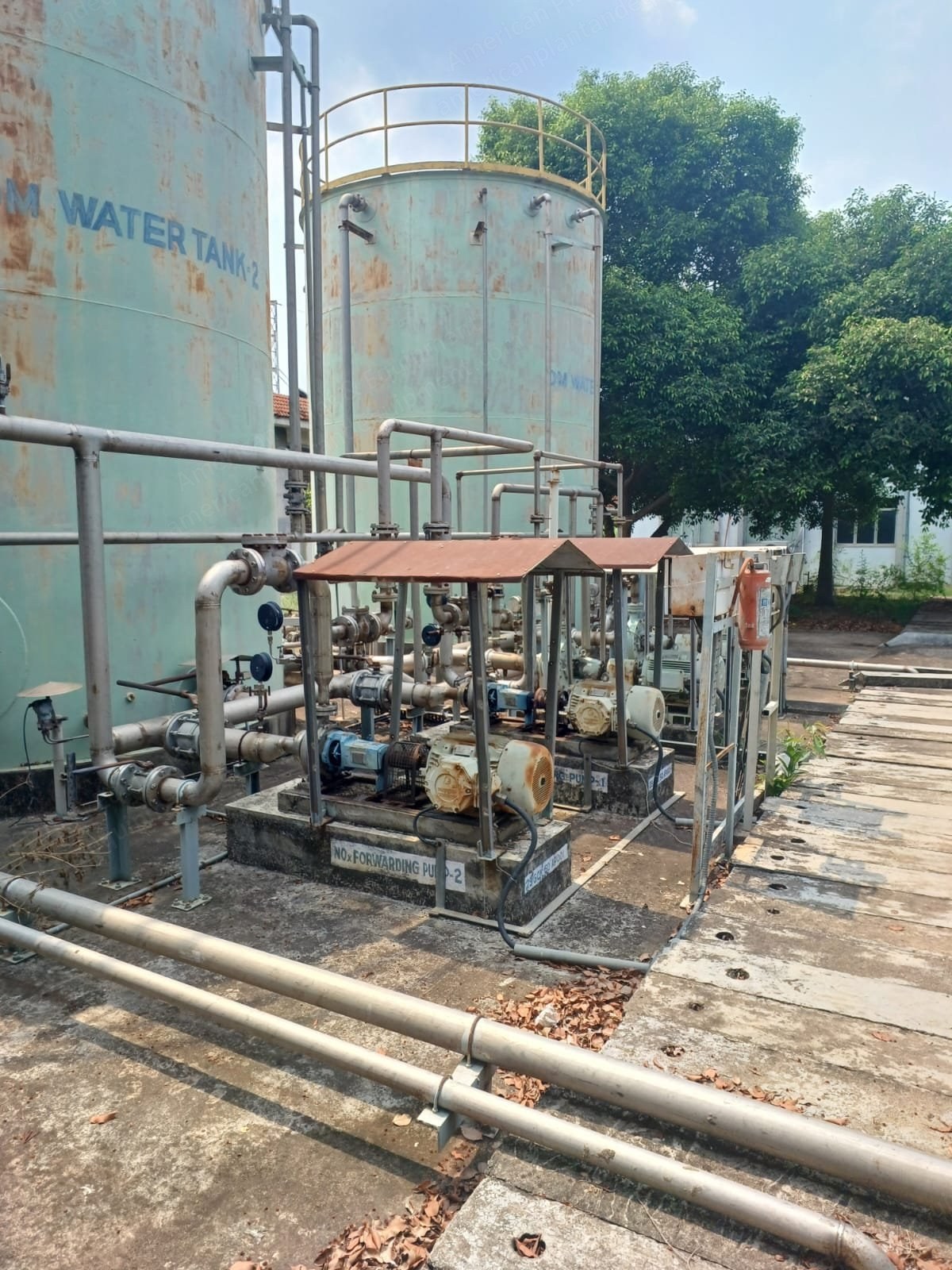

    1. Pump Kirloskar DM water tank/pump: 75 m3 cap
    2. Chemical dosing system/pump
    3. Raw water system
    4. Voltas HVAC system: 2 x 50 TR, 1 standby
    5. Fire protection system
    6. Hydrant: 40 nos
    7. Vijay fire CO2/portable firetender

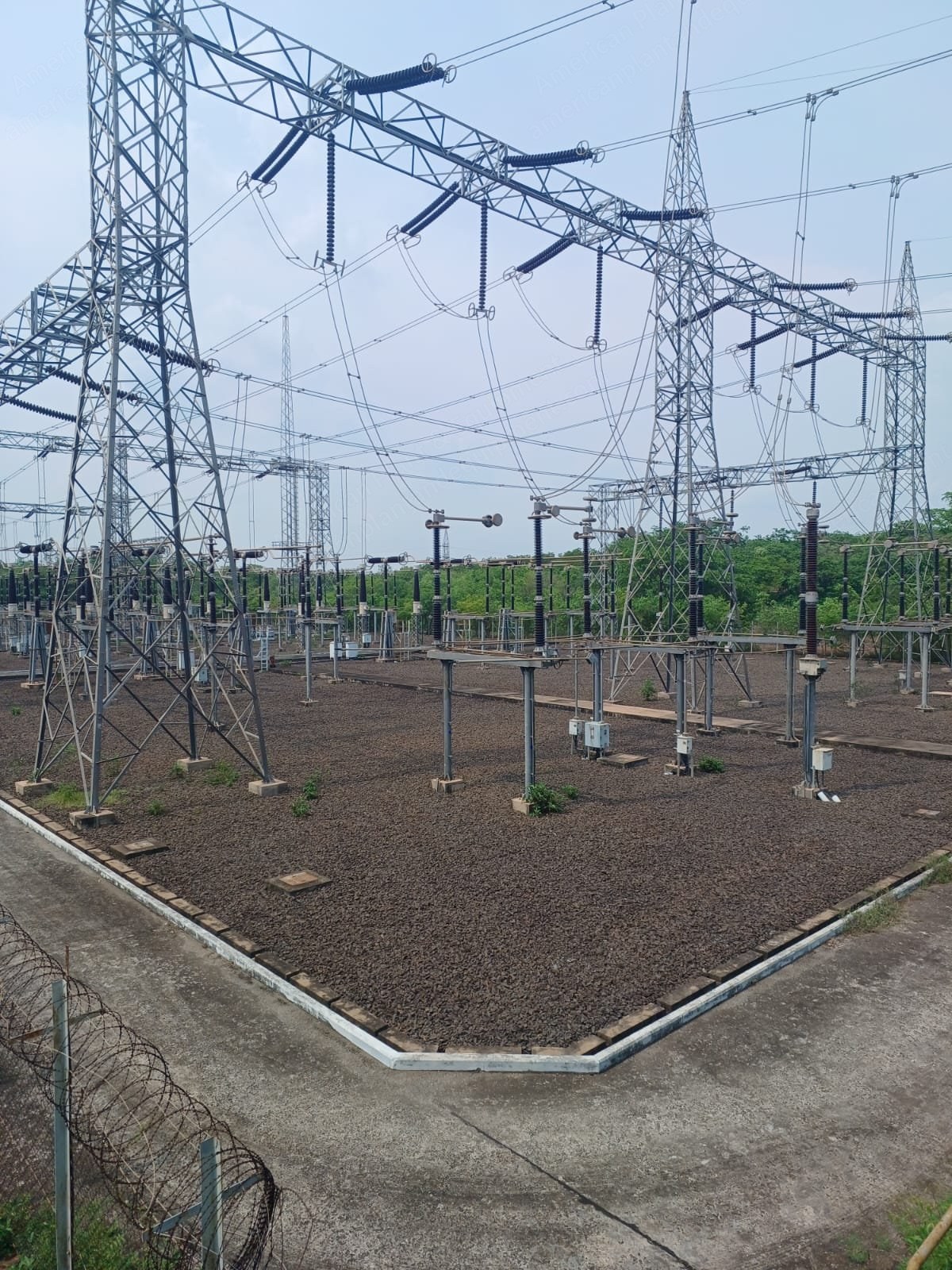

  5. Switch Yard and Transformers

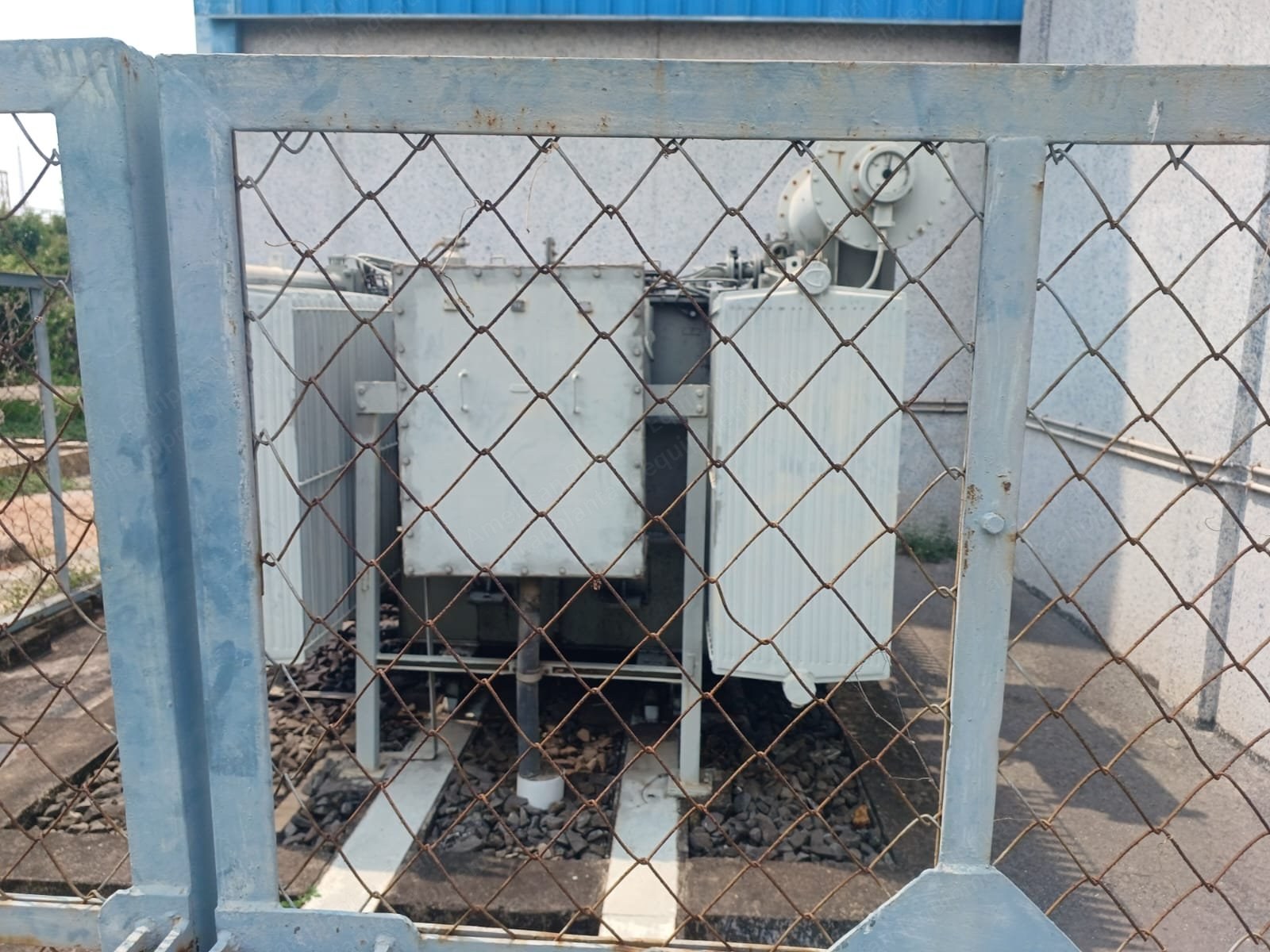

    1. 190 MVA/15.75/400 kV GT transformer and 8 MVA transformer: 15.75/6.6 kV and Alstom 6.8 MVA
    2. 15.75 kV/2.1 kV/0.433 kV
    3. Alstom ST: 120 MVA/11.5/400 kV transformer
    4. Alstom aux: 2 MVA/6.6/0.433 kV transformer: 4 nos
  6. Electrical and Control Systems

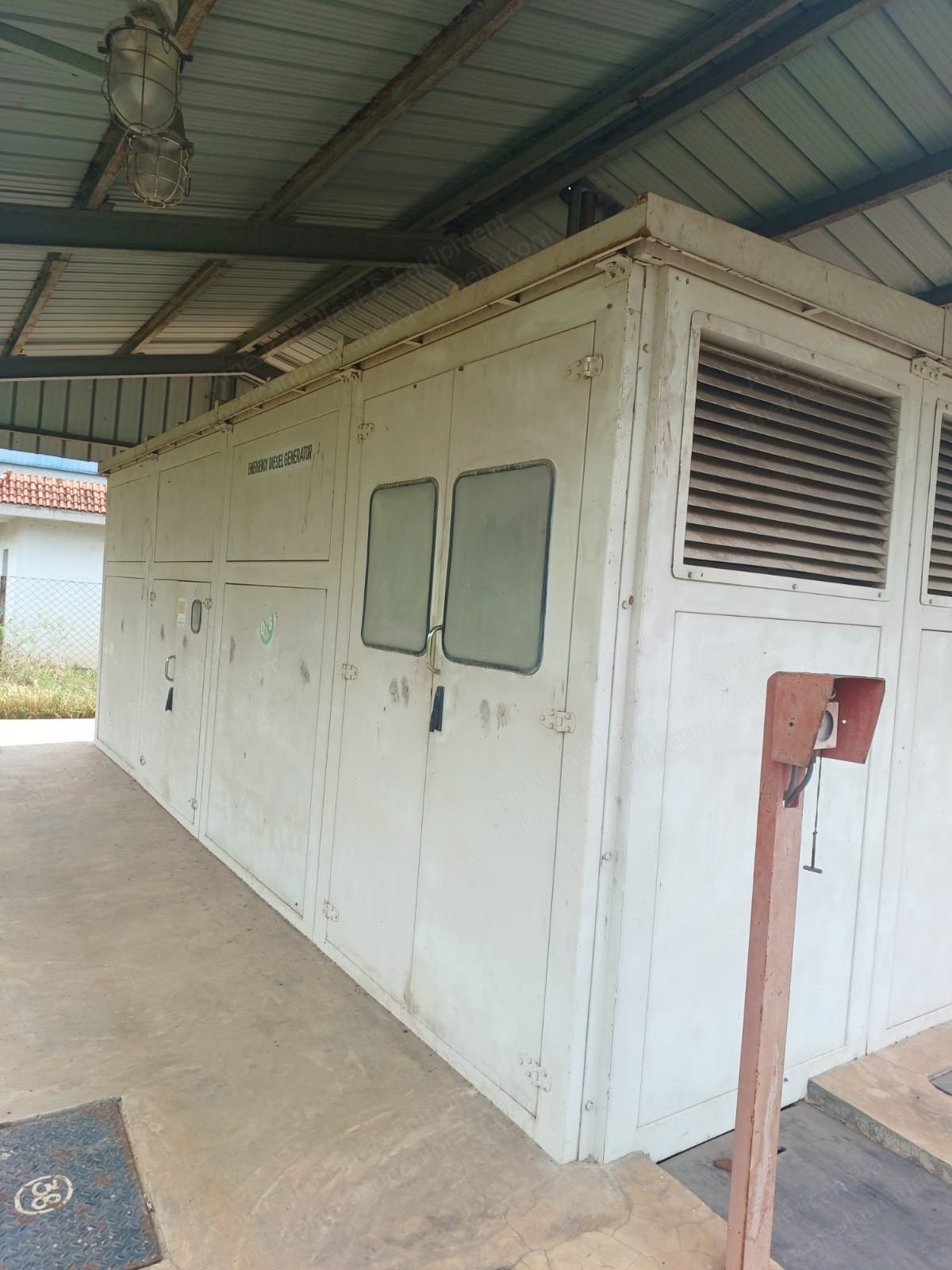

    1. DG set: Cummins 380 kVA/415 V
    2. Statcon charger: 220 VDC
    3. DC system

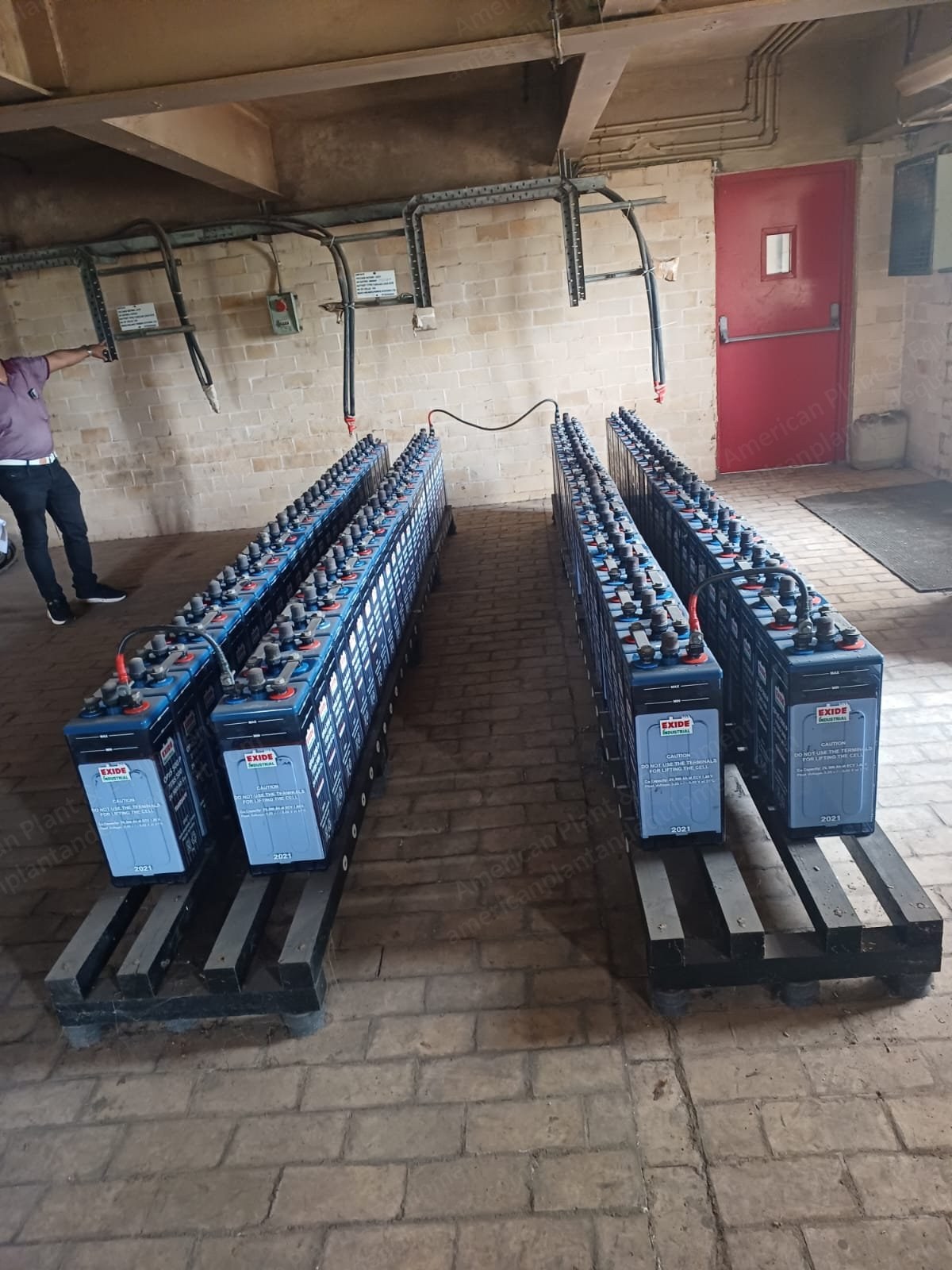

    4. Exide battery system: 500 AH 1 nos, 250 AH 1 nos
    5. DB power UPS: 60 kVA
    6. Earthing system
    7. Busduct

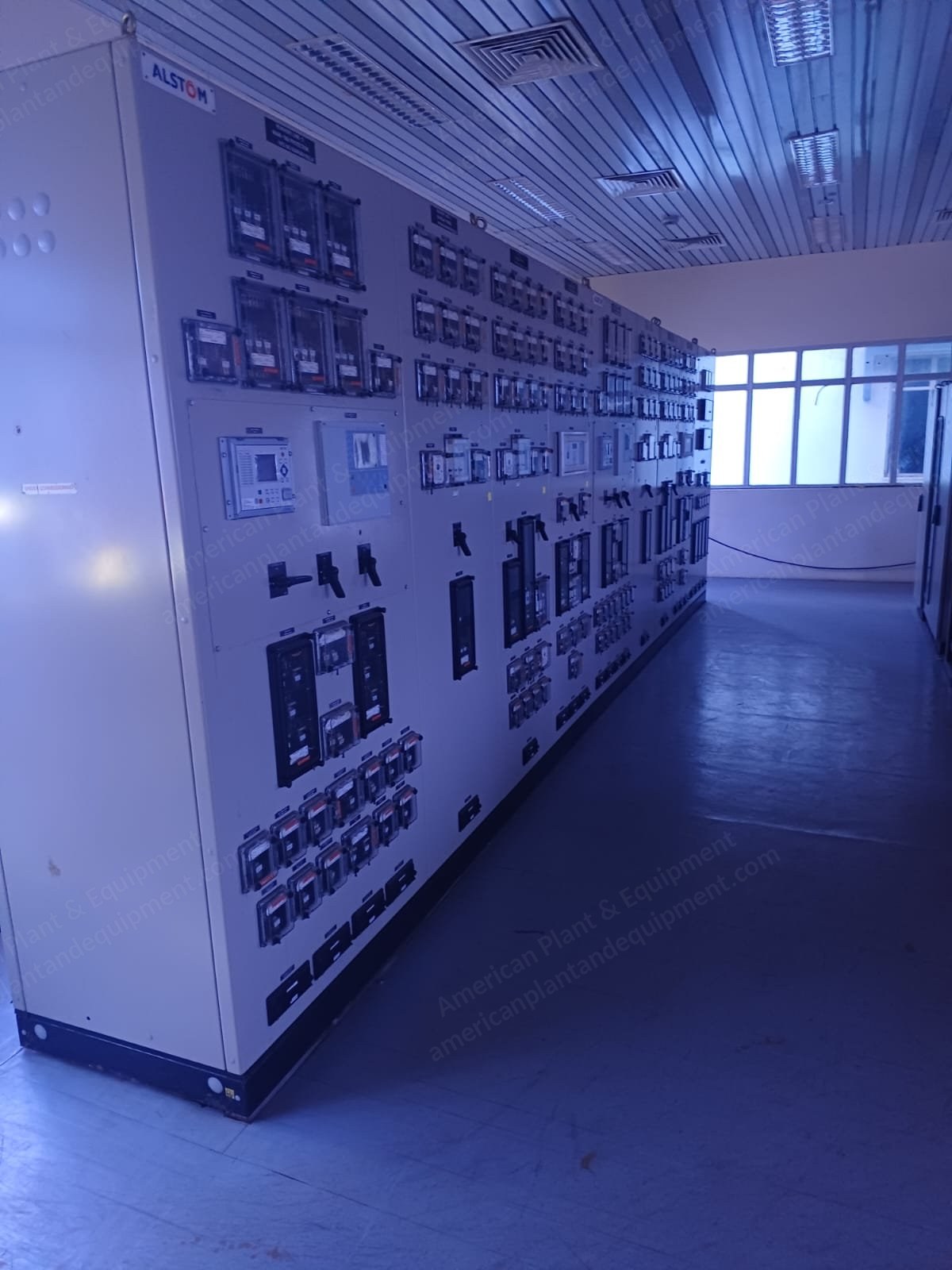

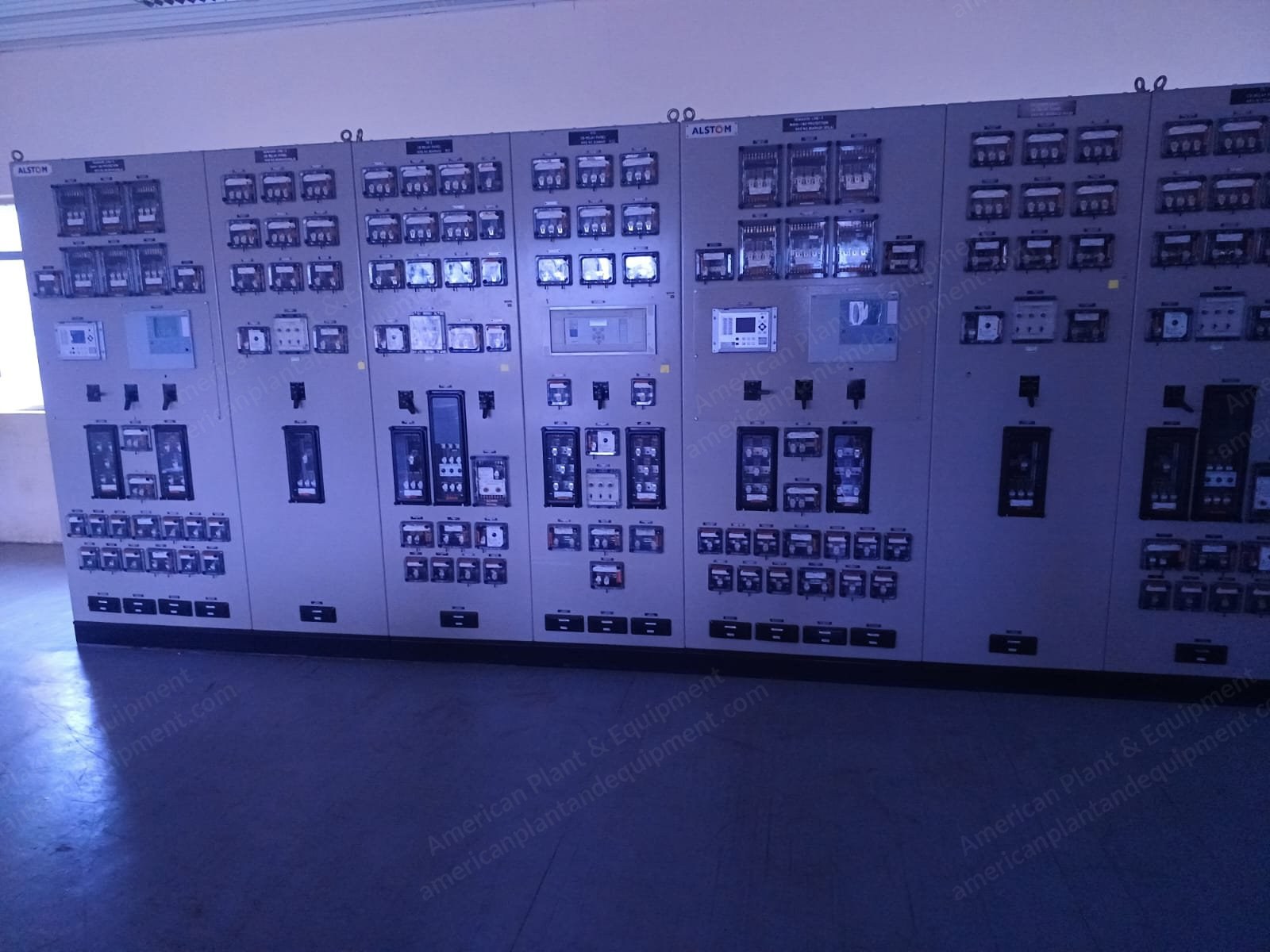

    8. Alstom control and relay panel
    9. CCR

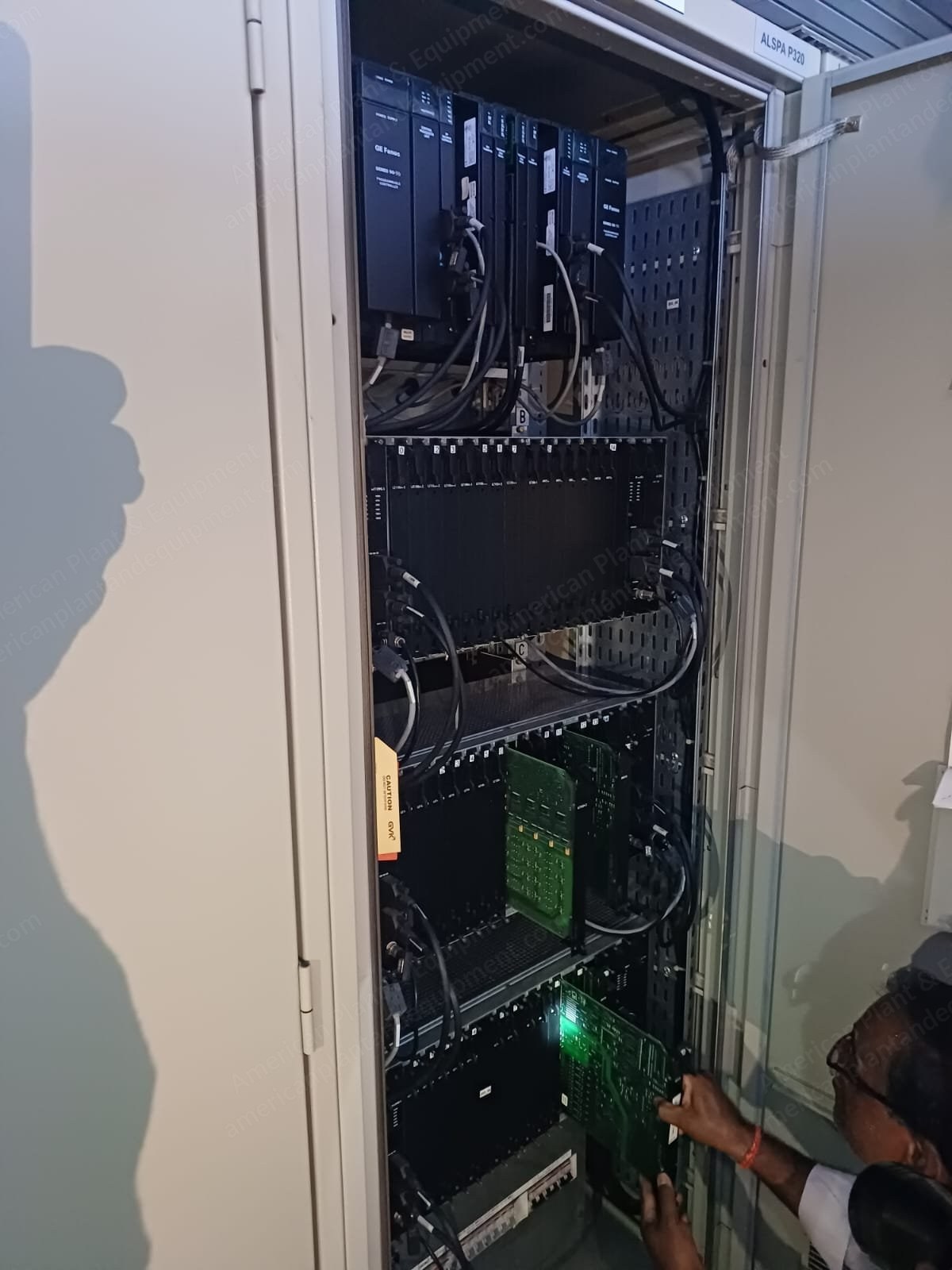

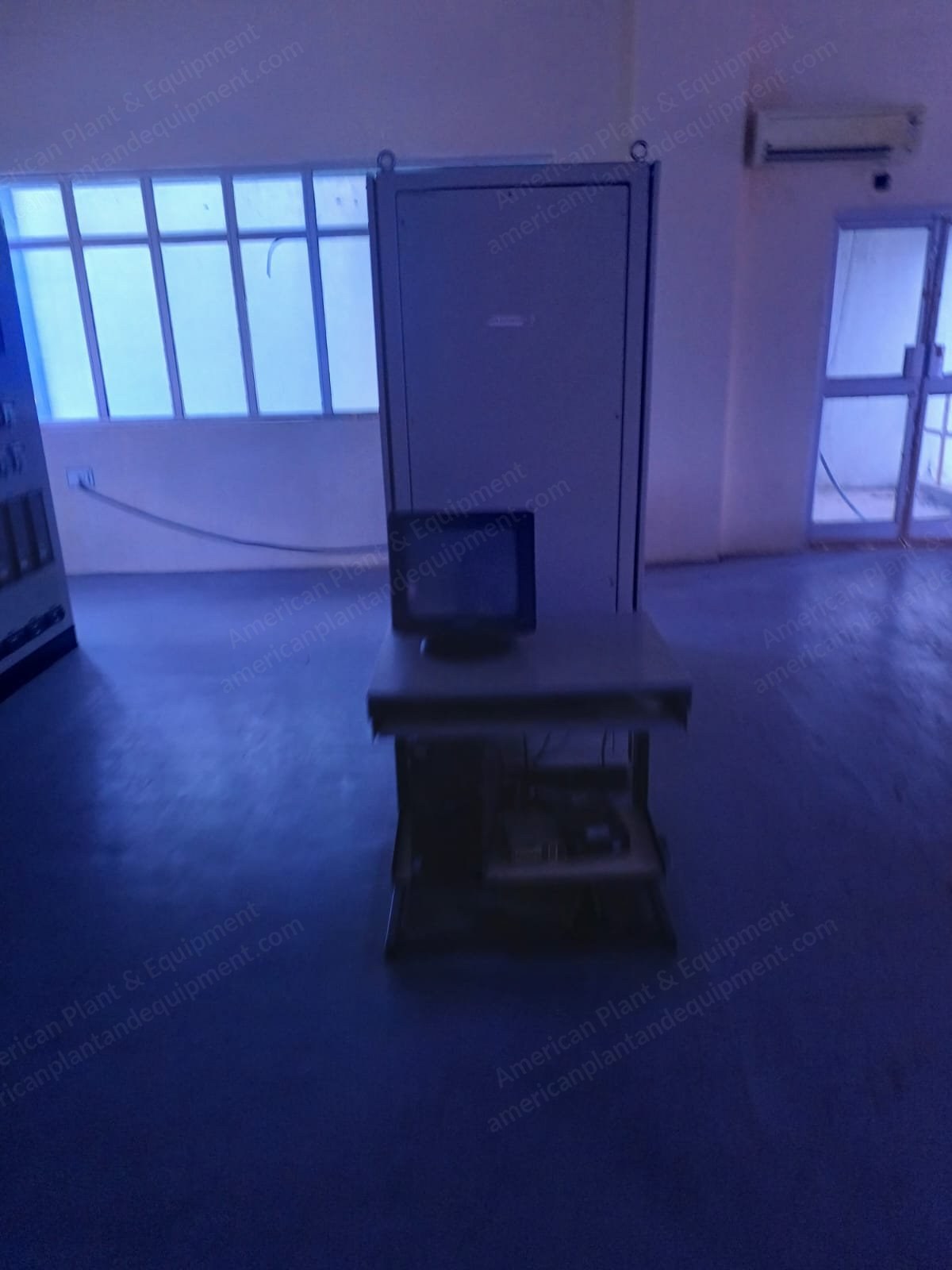

    10. Alstom turbovisory/C&I/PLC
    11. MCC: main plant and offsite
    12. Communication system
    13. Alstom 400 kV circuit breaker/CT: substation with DAI-1 and DAI-2
    14. CVT/isolators with earth switch
    15. Alstom lighting: 6 nos arrestor
  7. Fuel and Plant Infrastructure

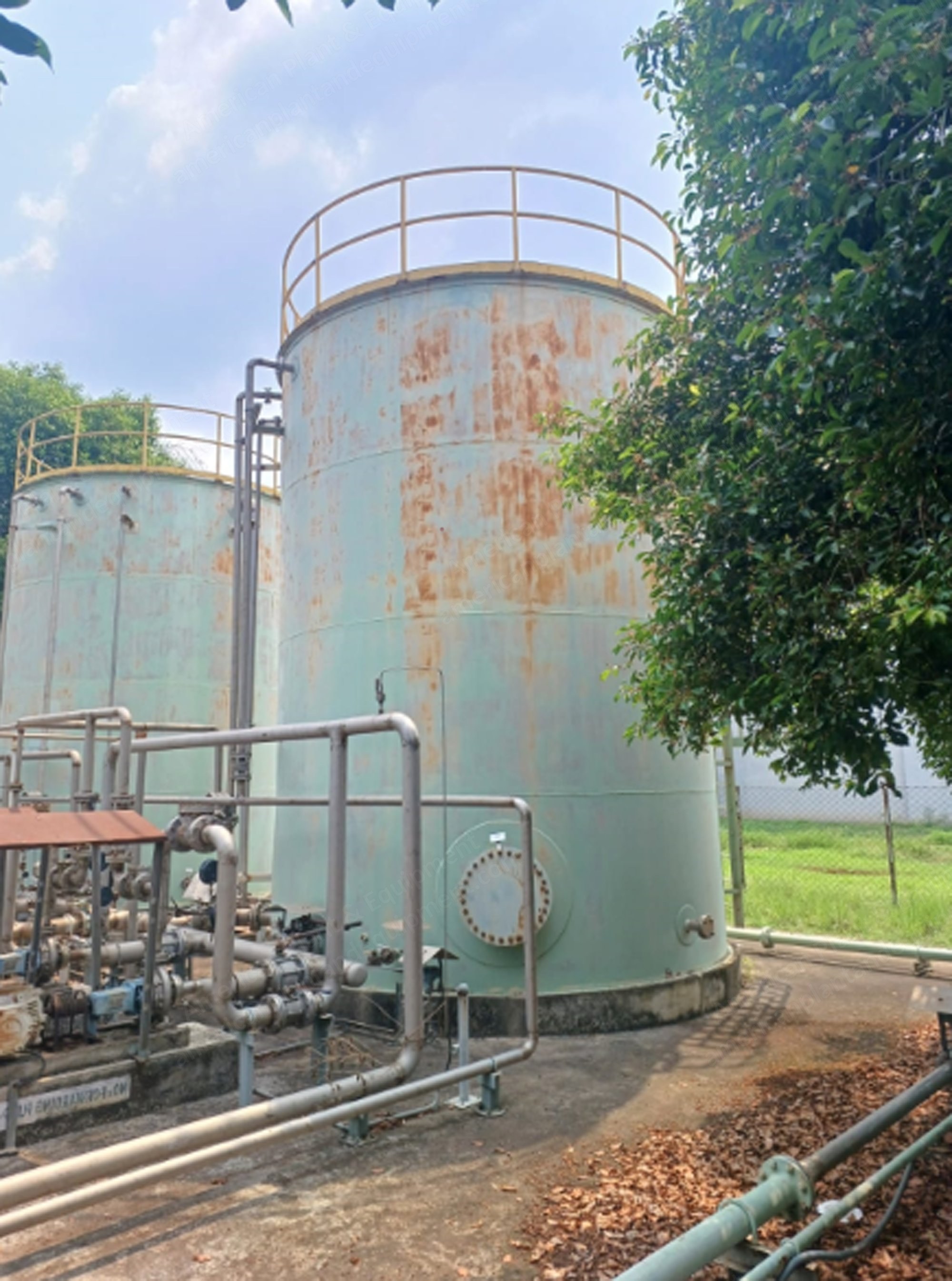

    1. Alternate fuel system: tank, loading & unloading, pumping station in phase-1, common utility
    2. Firing pump and station in phase 2
    3. Plant lighting system
    4. Cable/cable tray
