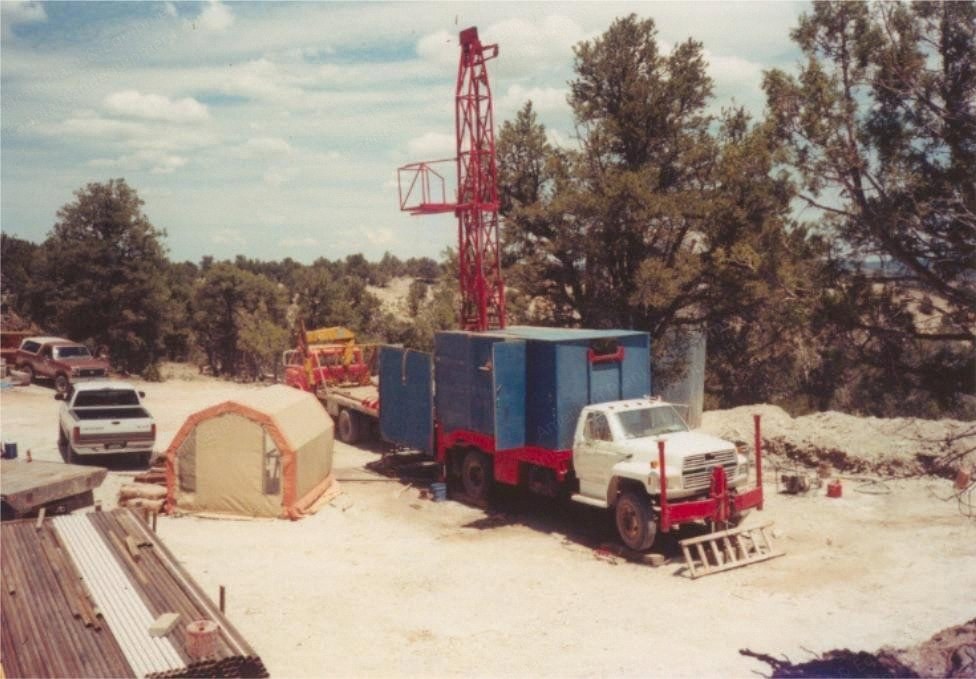

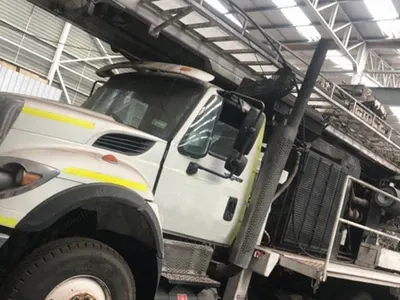

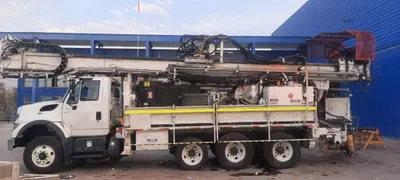

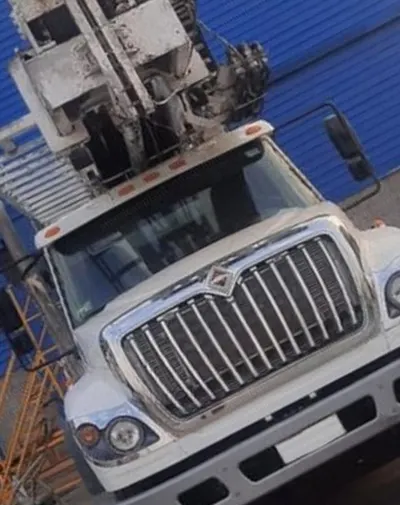

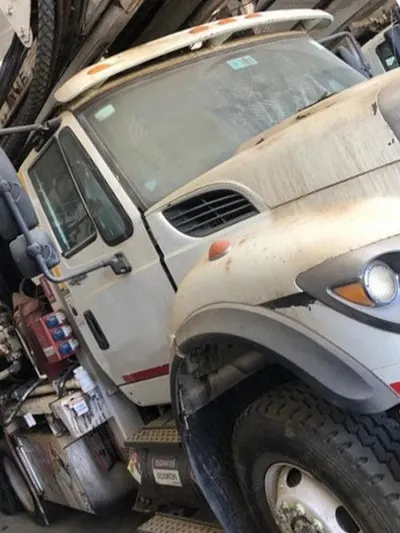

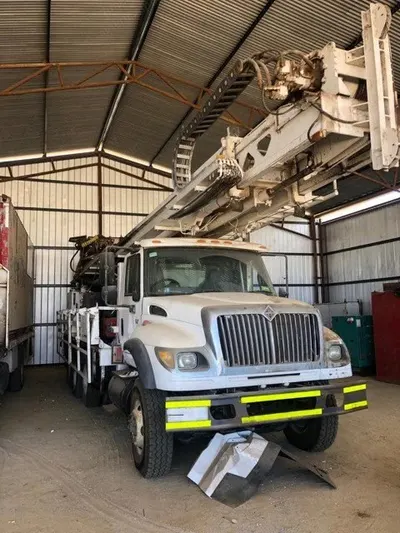

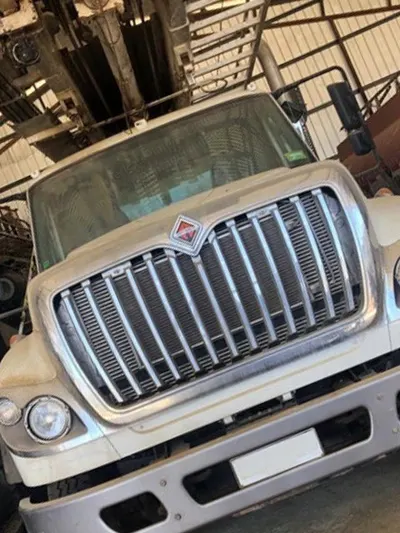

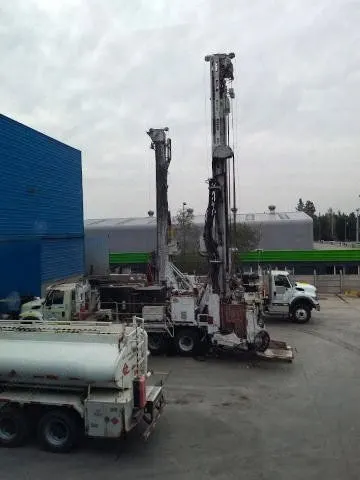

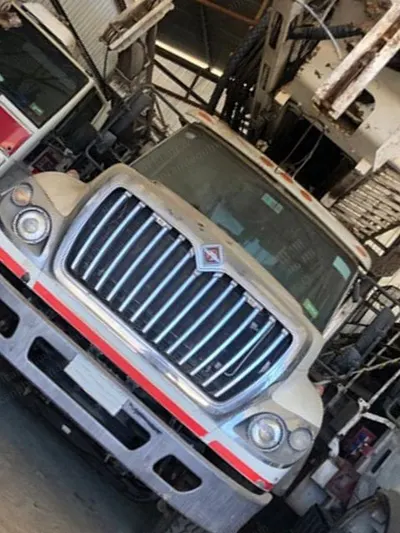

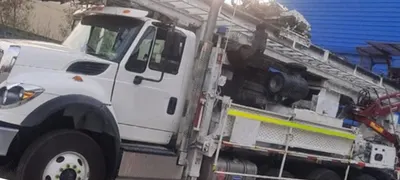

Description Overview Edm 2000 sliding angle mast drill rig Set up for exploration drilling (5-150 rpm tophead in low gear) and core drilling applications (150-1,500 rpm tophead in high gear) Max tophead torque 9,000# (800# torque at 1,500 rpm) Sliding angle mast capable of angles up to 45 degrees with 2,000mm mast dump No air compressor No mud pump Cummins QSM-11 tier 3 diesel deck engine 40,000# pullback 40,000# main winch, high speed wireline winch for coring Fmc (bean) water pump (140 l/min or 35 gpm) Hydraulic rod break out, rod spinner with 11,000# breakout torque Drill Depths Approximate drill depths: 4.5” dual tube rc pipe – 350m Bq coring pipe 2,800m Nq coring pipe 2,000m Hq coring pipe 1,500m Pq coring pipe – 1,100m Weight Overall weight without truck 22,000 kg / 48,000# Item 001 Edm 2000 Year 2009 Mounted on 2009 international 7600 8 x 4 truck Item 002 Edm 2000 Year 2010 Mounted on 2019 international 7601 8 x 4 truck Item 003 Edm 2000 Year 2010 Mounted on 2019 international 7500 8 x 4 truck Item 004 Edm 2000 Year 2012 Mounted on 2012 international 7600 8 x 4 truck Item 005 Edm 2000 Year 2012 Mounted on 2012 international 7600 6 x 4 truck
