Eastman, Eagle C125, 2016, Conveyor Cutter System, 108 inch Width x 20 foot Length, with 16-Carrier Textile Carousel

Eastman, Eagle C125, 2016, Conveyor Cutter System, 108 inch Width x 20 foot Length, with 16-Carrier Textile Carousel Sold

Description

  1. Overview
    1. System with Eastman textile carousel
    2. Machine type: process equipment
    3. Make: Eastman
    4. Model: Eagle
    5. Year: 2016

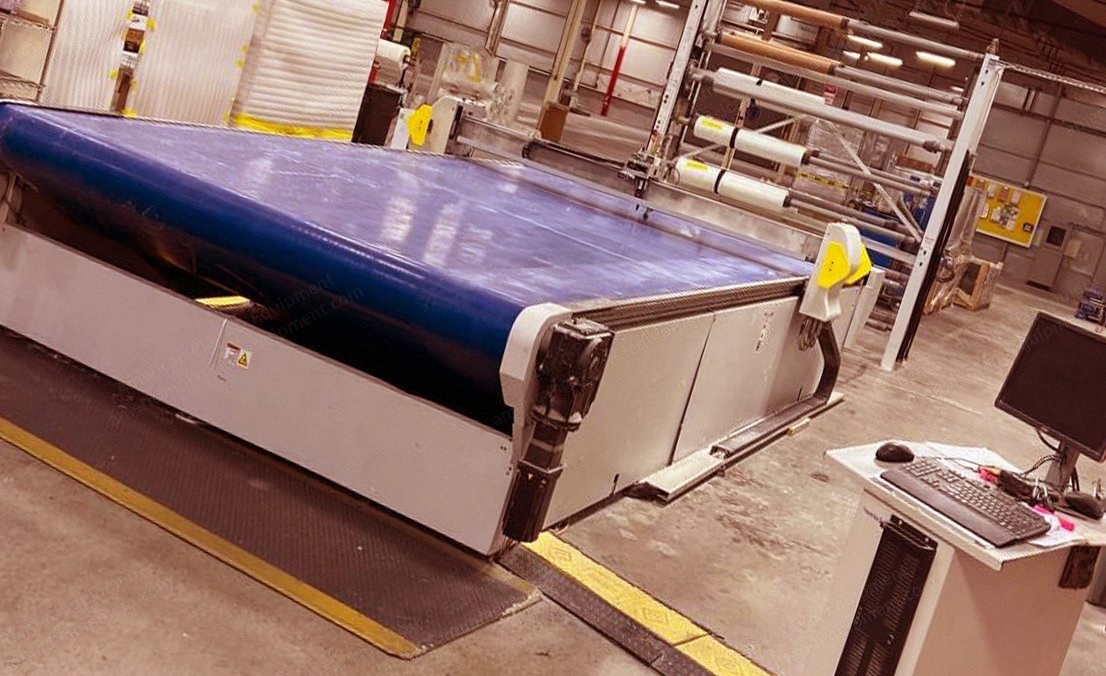

  2. Eastman Eagle C125 Conveyor Cutter System
    1. Model R20116-1614-09
    2. 108 in width x 20 ft length cutting gantry
    3. Heavy duty tool head
    4. Air brush marking

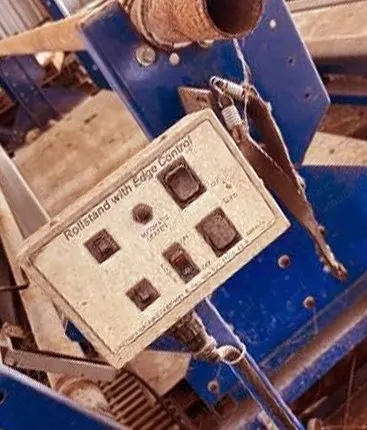

    5. (2) CRA-315 108 in single roll stands
    6. Cnc ply-cutting system engineered for single- to low-ply automatic cutting
    7. Volts: 230
    8. Phase: 3
    9. Hertz: 50/60

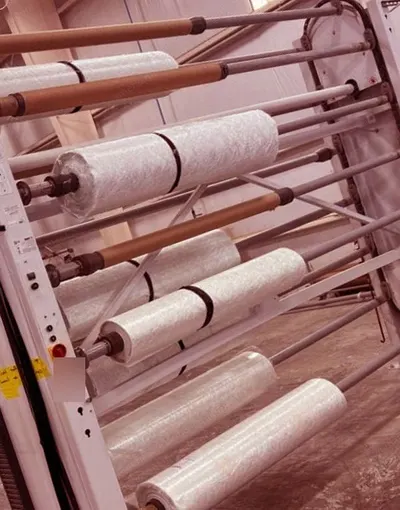

  3. Eastman Textile Carousel
    1. Model R20116-1614-09
    2. 16 carrier capacity carousel
    3. 108 in carrier width
    4. 13,000 lb overall weight capacity
    5. With optional 14-sets of centering cones
    6. Drive motor hp: 1 x 1.50 hp
    7. Maximum weight per carrier: 950 lbs
    8. Volts: 208
    9. Phase: 3
    10. Hertz: 60
    11. Amps: 5
