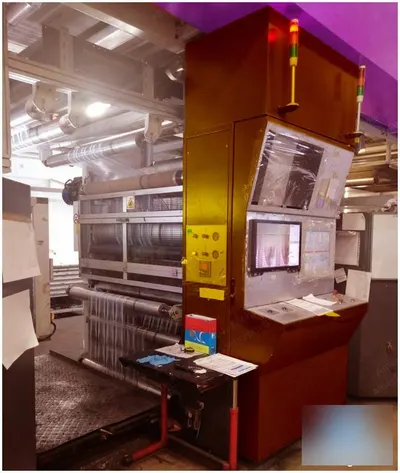

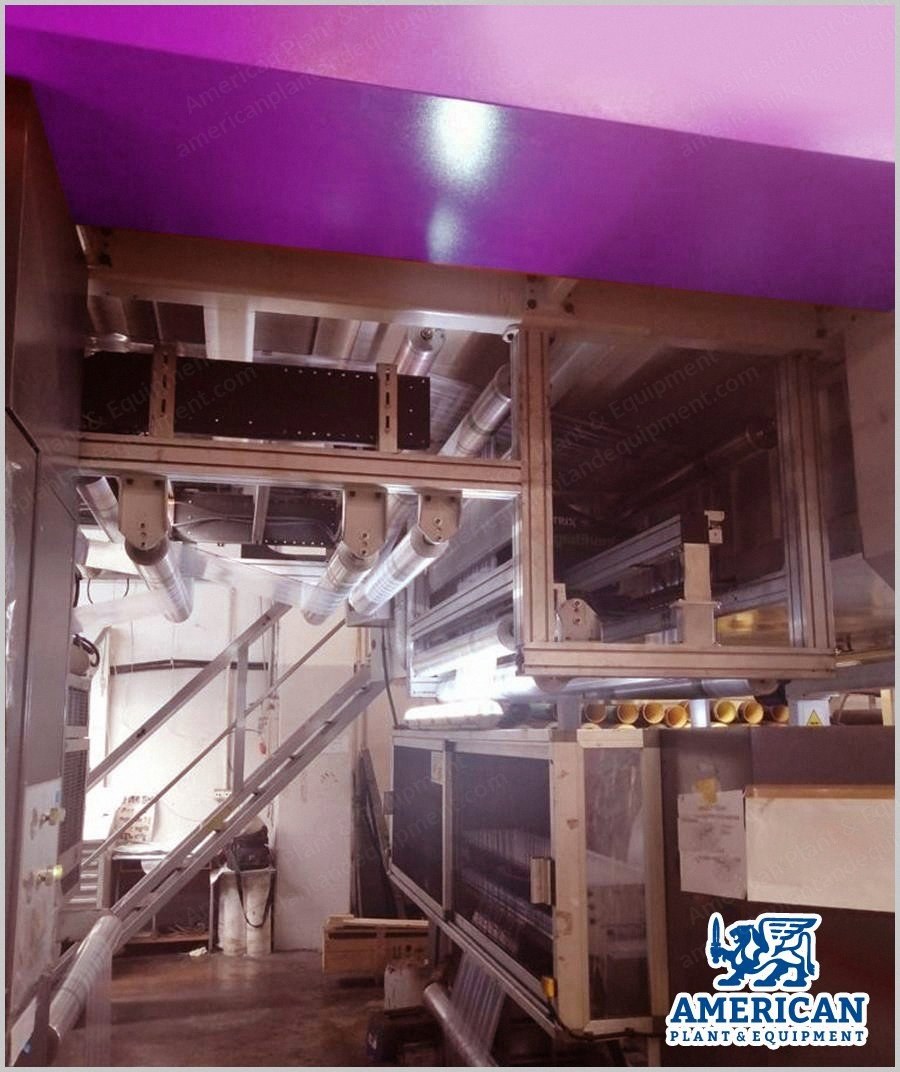

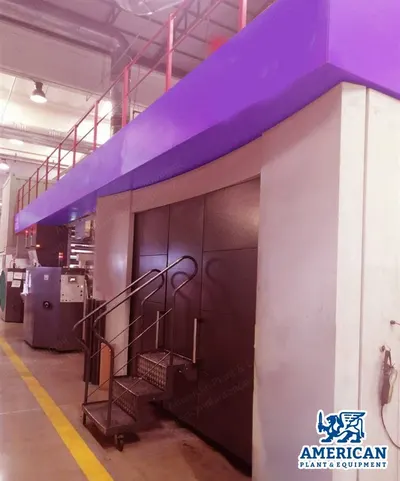

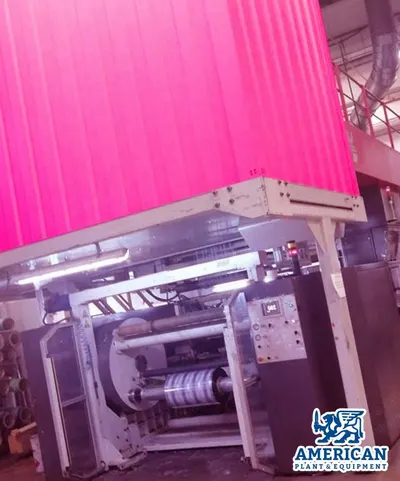

Uteco, Onyx 808, 2014, 1250mm Print Width, 8 Colors, Gearless

Description

  1. Overview
    1. 8 colors
    2. Print possibilities: 8+0
    3. Gearless: yes
    4. Fast sleeve change: yes
    5. 4 motor per deck CNC position system: yes
    6. Computer supervision: yes
  2. Print Specifications
    1. Print width: 1250 mm
    2. Min print repeat: 330 mm
    3. Max print repeat: 800 mm

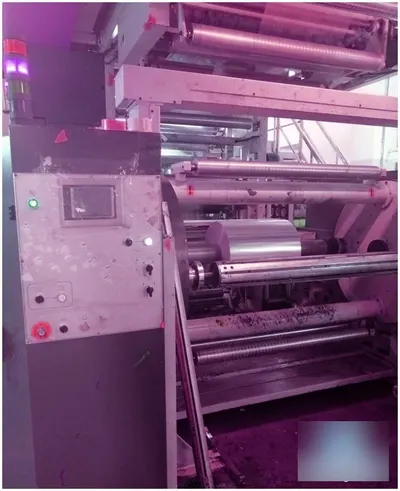

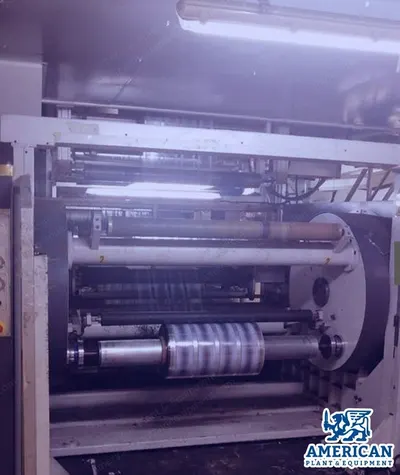

  3. Unwinder and Rewinder
    1. Unwinder type: turret non stop
    2. Max reel diameter unwinder: 1000 mm
    3. Rewinder type: turret non stop
    4. Max reel diameter rewinder: 1000 mm

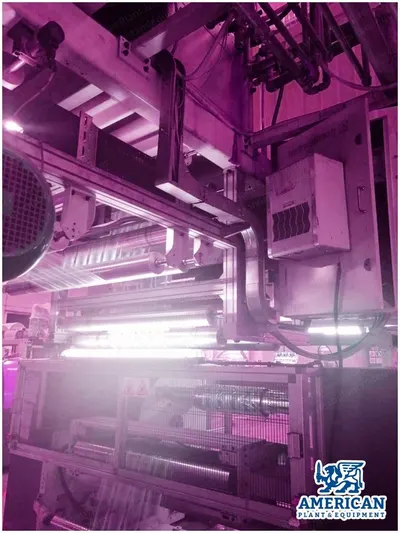

  4. Drying and Inspection
    1. Drying: gas
    2. Videocamera: Graficontrol with 100% inspection
    3. Viscosity control: Gama
  5. Inking and Anilox
    1. Washing system: yes
    2. Inking system: ceramic anilox + closed chambered doctor blade
    3. Anilox: 12 pieces
  6. Included Accessories

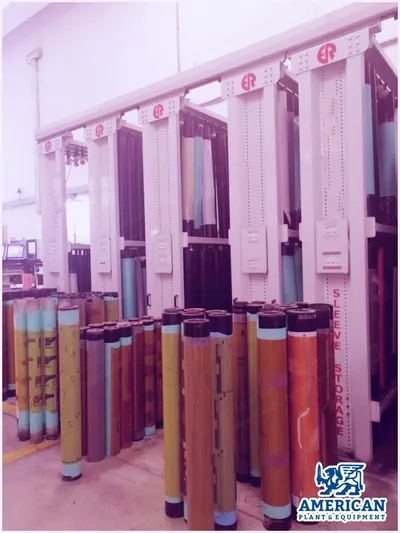

    1. Print sleeves: 3 sets of sleeves
  7. Additional Information
    1. “Kiss and go” automatic print setting driven infeed roller
  8. Specifications
    1. Web width mm: 1300
