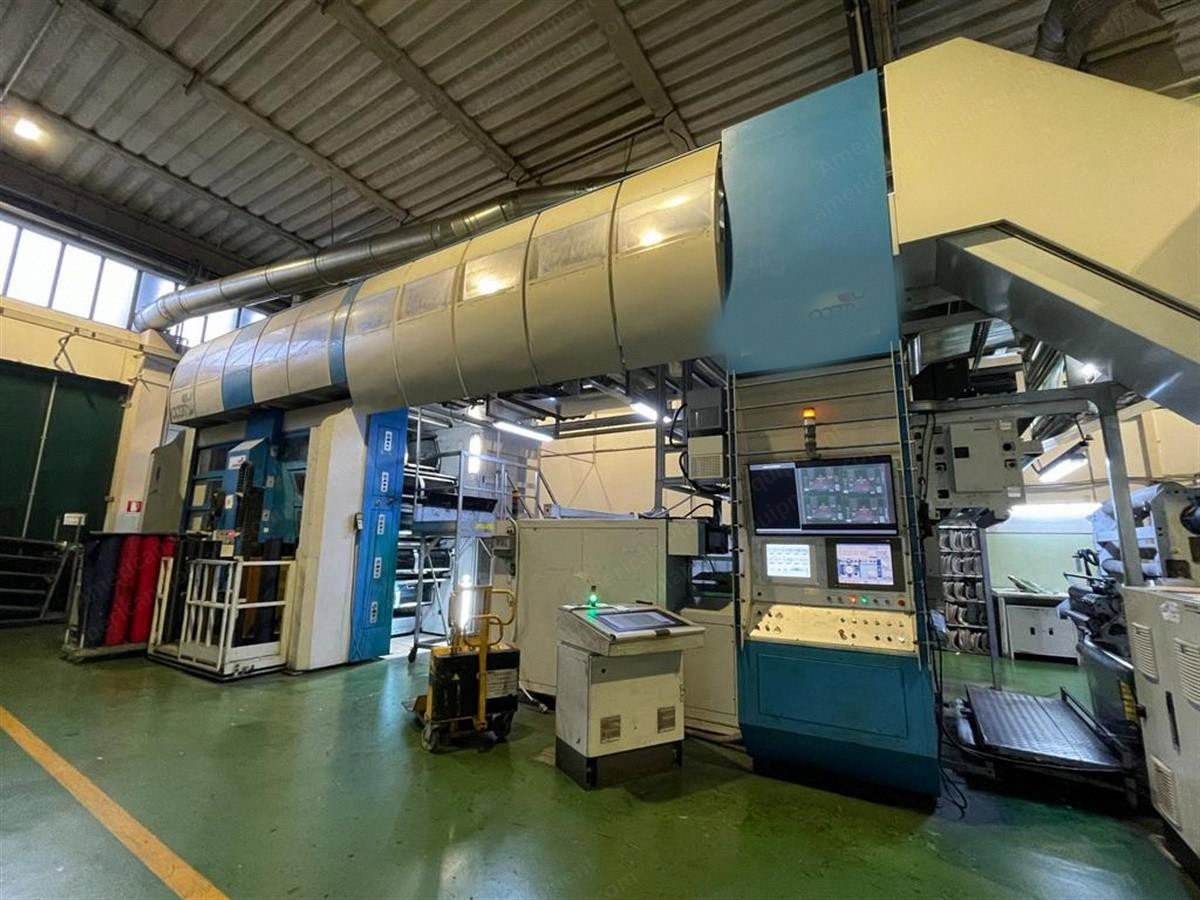

Uteco, Diamond HP 108, 2009, 1300mm Print Width, 10 Colors, Gearless Flexo Press

Uteco, Diamond HP 108, 2009, 1300mm Print Width, 10 Colors, Gearless Flexo Press

Description

  1. Overview
    1. Number of colors: 10
    2. Print possibilities: 10+0
    3. Gearless: yes
    4. Fast sleeve change: yes
    5. 4 motor per deck cnc position system: yes
    6. Computer supervision: yes
  2. Specifications
    1. Print width: 1300 mm
    2. Min print repeat: 400 mm
    3. Max print repeat: 850 mm
    4. Unwinder type: turret automatic non stop
    5. Max reel diameter unwinder: 1000 mm
    6. Rewinder type: turret automatic non stop
    7. Max reel diameter rewinder: 1000 mm
    8. Drying: 2 zones, 4 fans, double tunnel 2 x 3 mt, 2 gas burners
    9. Automatic air recirculation system with lel control
    10. Videocamera: yes bst
    11. Corona treatment: yes driven
    12. Viscosity control: yes
    13. Washing system: yes
    14. Inking system: closed chamber doctor blades
    15. Anilox: 15 ceramic anilox sleeves
    16. Web width mm: 1350
