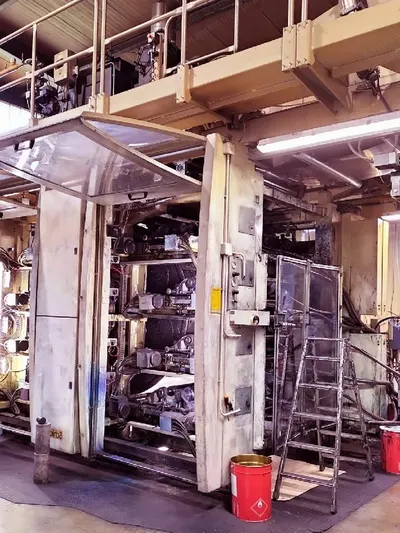

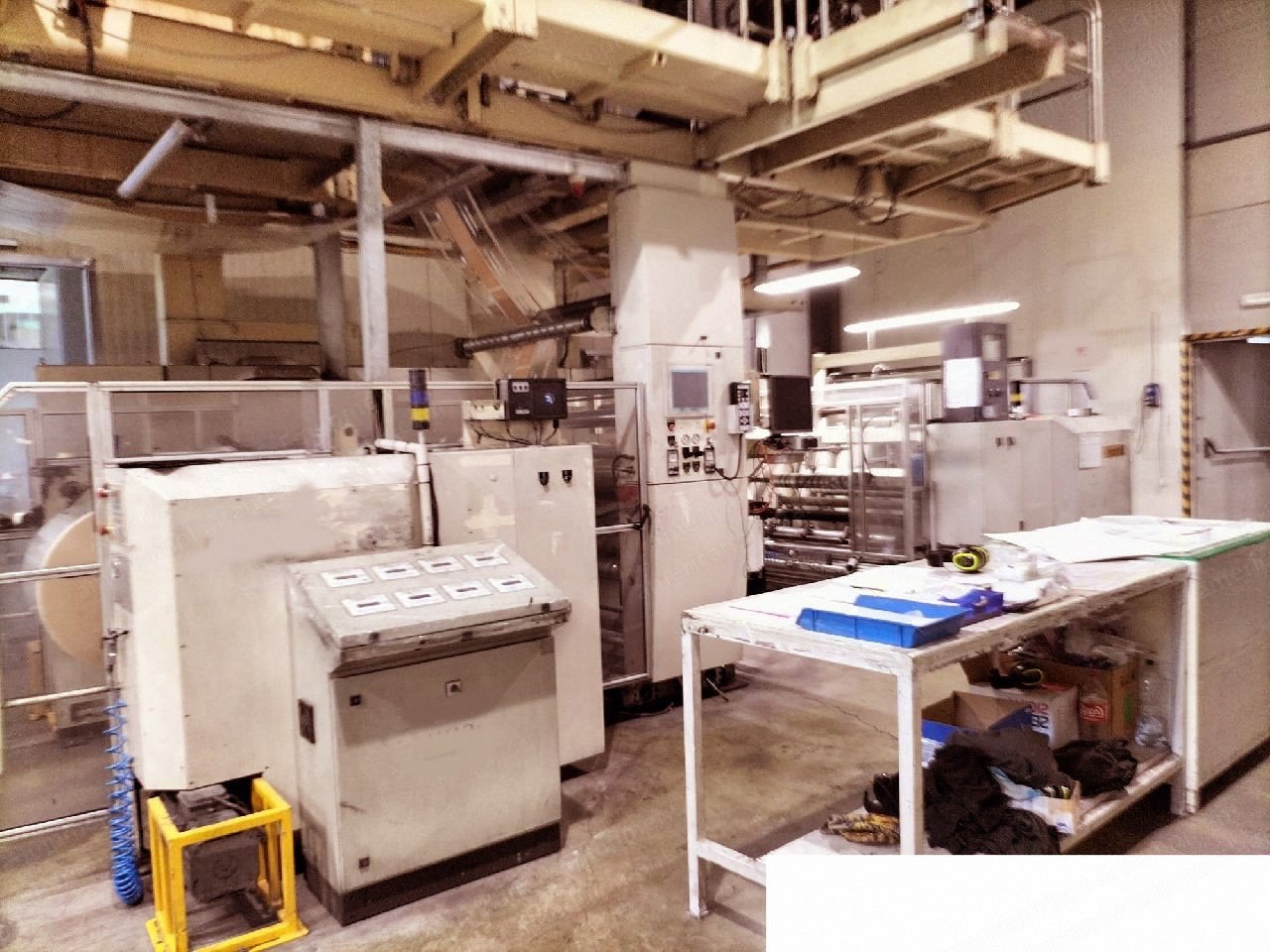

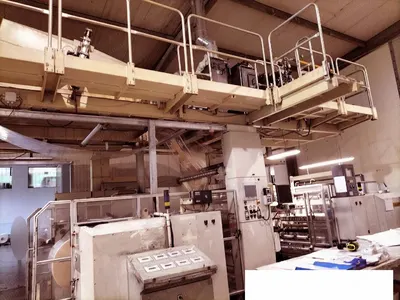

Schiavi, Sigma, 2002, 1220mm Print Width, 8 Colors, Gearless, Flexo CI

Schiavi, Sigma, 2002, 1220mm Print Width, 8 Colors, Gearless, Flexo CI

Description

  1. Overview
    1. Gearless press with fast sleeve change
    2. 4 motor per deck CNC position system
    3. Computer supervision

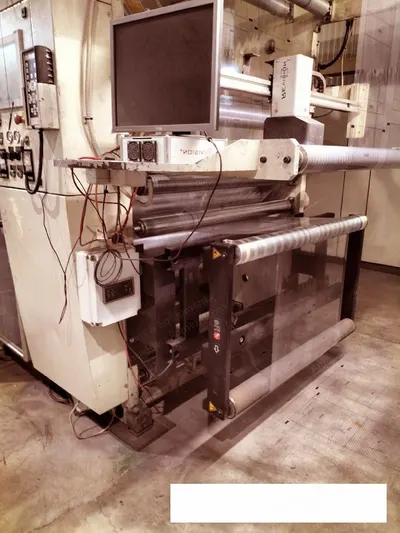

    4. Videocamera by RE
    5. Automatic viscosity control by Gama
  2. Print Specifications
    1. Number of colors: 8
    2. Print width: 1220 mm
    3. Min print repeat: 320 mm
    4. Max print repeat: 700 mm
  3. Unwinder and Rewinder
    1. Unwinder type: turret automatic
    2. Max reel diameter unwinder: 800 mm
    3. Rewinder type: turret automatic
    4. Max reel diameter rewinder: 800 mm

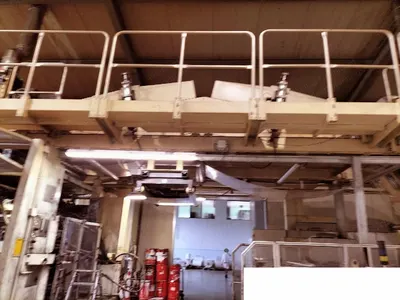

  4. Drying System
    1. 2 zones, 4 fans, 2 gas burners
    2. Auto recirculation system with LEL control
  5. Inking System
    1. Closed chamber doctor blades
    2. 12 ceramic anilox sleeves
    3. 4 sets of print sleeves
  6. Specifications
    1. Web width mm: 1270
