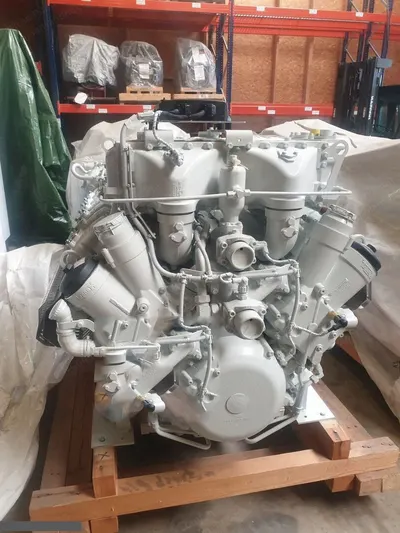

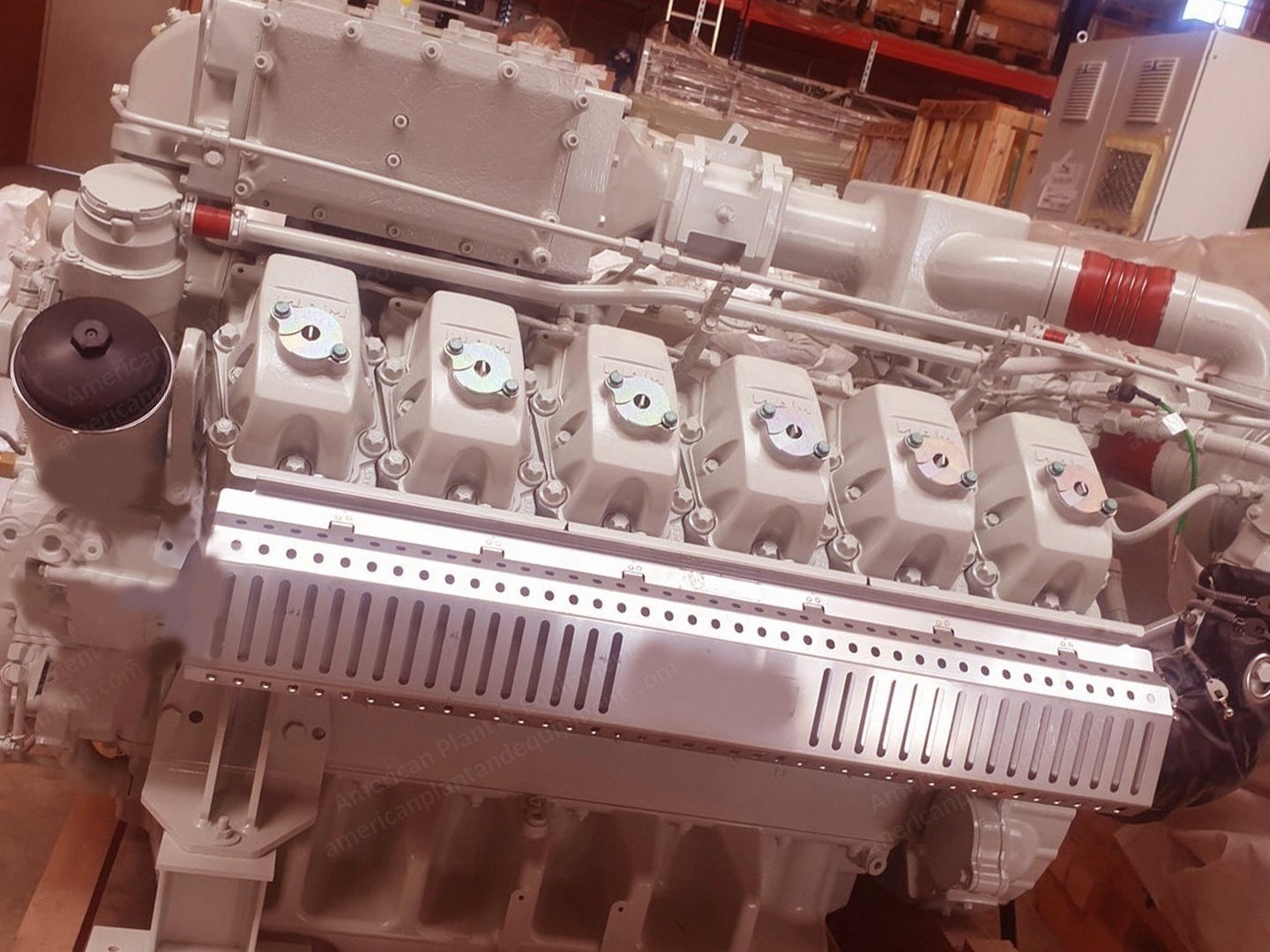

Description Overview Machine type: Gas-engine man e3262le212 Brand: Man Model: E3262le212 Year of construction: 2024 Condition: New Engine Specifications Four-stroke gas engine based on man Individual cylinder heads with 4v technology, bottom-mounted camshaft and roller pushrods Engine width: 1243 mm Engine length: 1748 mm Engine height: 1500 mm Compression ratio 14:1, special gas Speed 1500 rpm Oil module consisting of radiator, filter and crankcase ventilation One oil module per cylinder bank Crankcase ventilation is integrated at the factory Oil pump in rotor pump design One oil pump per cylinder bank Flywheel housing sae 1 flywheel i = 2.49 kgm2 with ring gear Starter 24 v / 7.0 kw Camshaft with encoder disk for electric ignition system Dry exhaust pipe with contact protection Exhaust gas turbocharger with water-cooled turbine housing, water-cooled bearing bracket and pressure oil lubrication Two-stage mixture cooler Mechanical throttle valve without actuator upstream of mixture cooler Lubricating oil pan with 102 l volume and filler neck Without thermostat housing Cover for front crankshaft end Engine feet gs Standard man factory approval with natural gas “h” Without oil filling Engine openings with sealing cap Type plate german / english Paint, light gray ral 7035 Sensors And Cables 2 x exhaust gas temperature sensor 1 x coolant temperature sensor - inlet 1 x coolant temperature sensor - outlet 2 x oil pressure sensor 2 x oil temperature sensor 2 x connecting cable for exhaust gas temperature sensor, length 5000 mm 4 x connecting cable for temperature sensor, length 5000 mm 2 x connecting cable for oil pressure sensor, length 5000 mm 1 x combined charge air sensor for pressure and temperature
