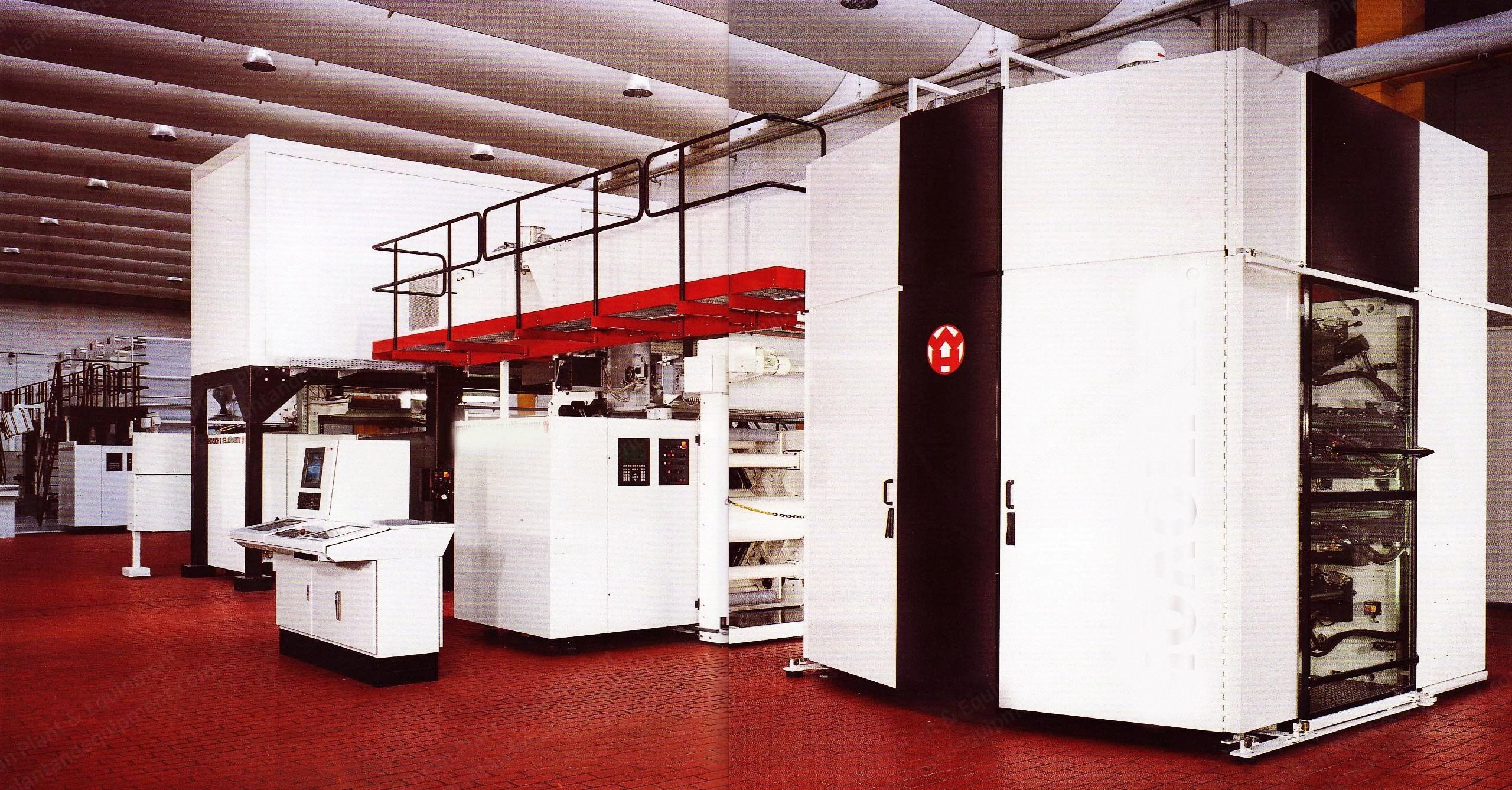

Windmoller + Holscher, Novoflex, 2002, 8 Colors, 1320mm Width, Gearless Flexopress

Windmoller + Holscher, Novoflex, 2002, 8 Colors, 1320mm Width, Gearless Flexopress

Description

  1. Overview

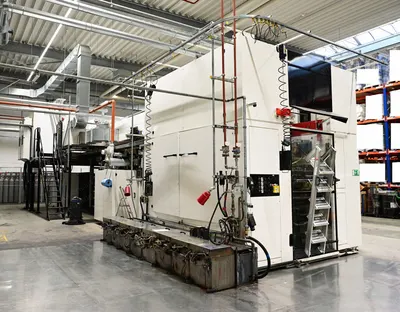

    1. Windmoeller + Hoelscher Novoflex 8-color gearless flexographic printing press
    2. Model: Novoflex - 8 colors
    3. Year of construction: 2002, extended until 2020
    4. Machine installed in production, available 2023
    5. Excluding dismantling and loading
  2. Specifications
    1. Printing width max. 1260 mm
    2. Printing circumference possible: 300 to 760 mm
    3. Printing circumference practice: 370 to 720 mm
    4. Max. unwind diameter: 350 to 800 mm
    5. Turret, non-stop / shaft: 76 + 150 mm core
    6. Max. rewind diameter: 1000 mm
    7. Turret, non-stop / shaft: 76 + 150 mm core
    8. 8 printing units, gearless
    9. Max. mechanical speed: 400 m/minute
    10. Material: 15-120 my paper / pet / opp / opa etc.
    11. Floor space approx. 15 x 6 x 4.5 height - meter
    12. 260 kva / kj/hour: 250 + 370,000 unit + bridge
    13. Min web width: 520mm
  3. Condition
    1. Chambered doctor blades and ceramic anilox
    2. Computerised print control
    3. 2 x web-guiding system
    4. Futec year 2017 inspection camera system
    5. Several knives for inline slitting
    6. Themic oil drying system with gas burner
  4. Included
    1. Width 1320 mm
    2. Flexopress gearless Windoller + Hoelscher
    1. Machine installed in production, available 2023
