Jakob Muller, NF, 2000, 27mm Working Width, 4 Weaving Heads, 10 Patterning Frames

Jakob Muller, NF, 2000, 27mm Working Width, 4 Weaving Heads, 10 Patterning Frames

Description

  1. Overview

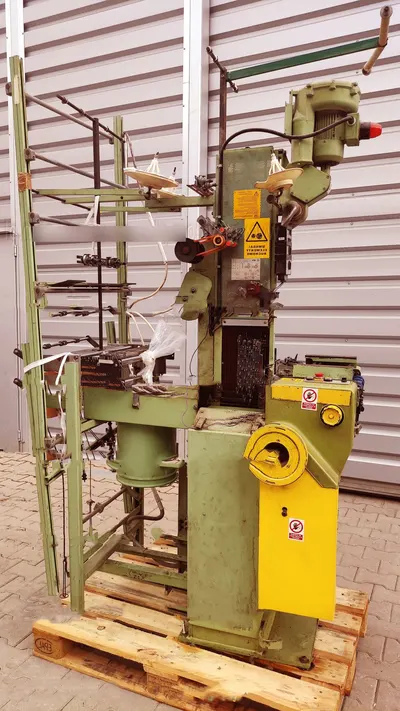

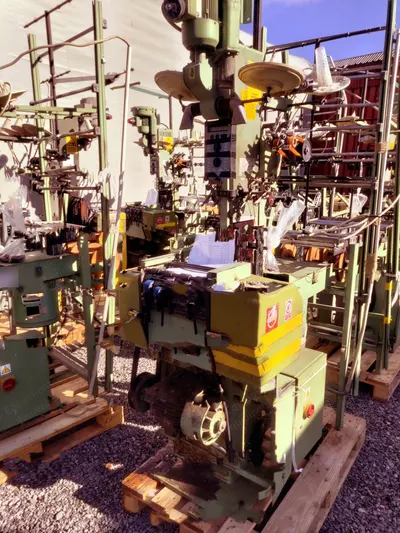

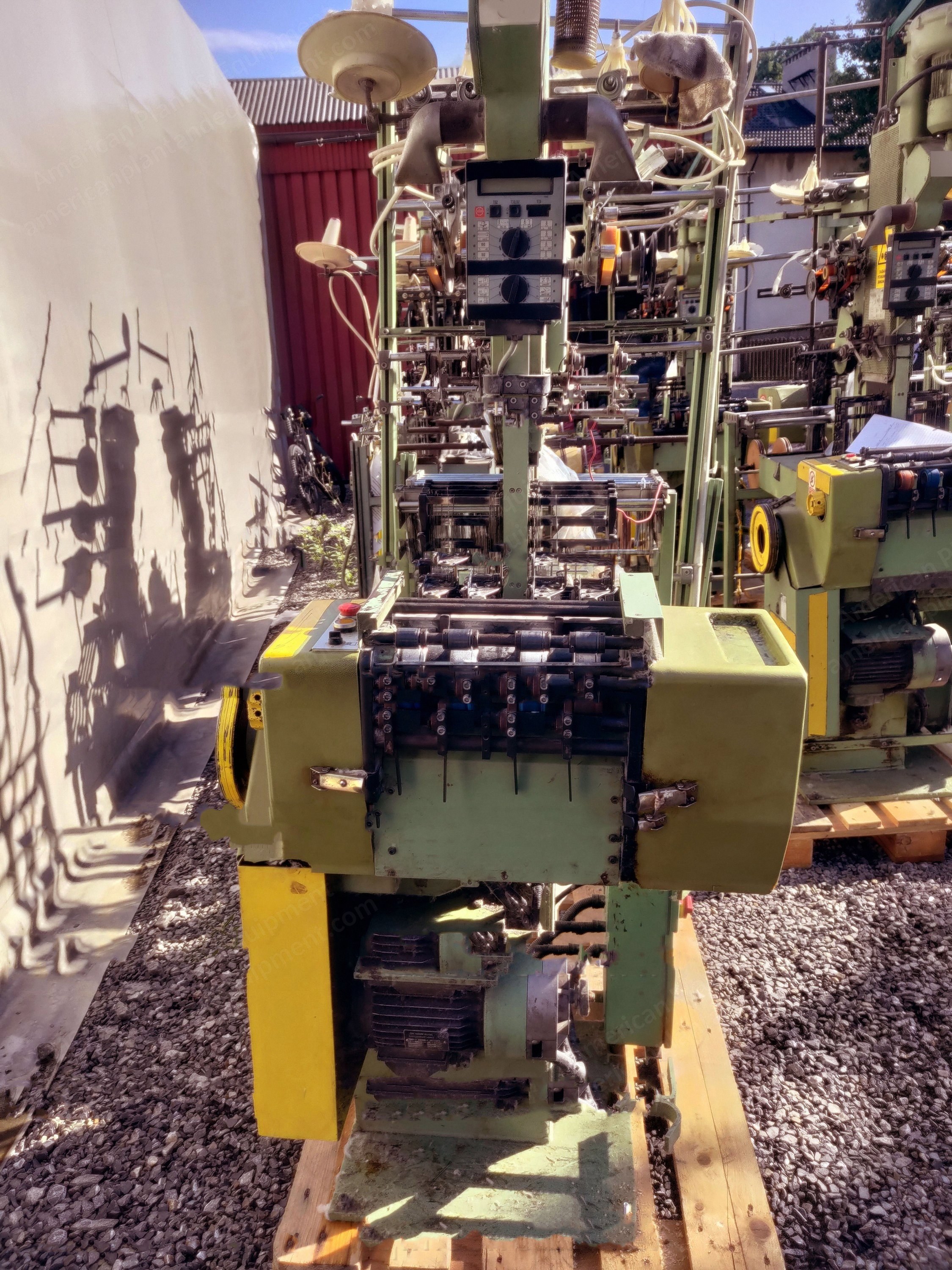

    1. Weaving loom, Jakob Muller Ag, Frick, type Nf.
    2. Brand: Jakob Muller.
    3. Model: Nf.
    4. Production year: 2000.
    5. The machines are manufactured in the years 1992 to 1998.
    6. State: Used.
  2. Specifications
    1. Working width: 27 mm.
    2. Weaving width: up to 27 mm.
    3. Number of weaving heads: 4.
    4. Number of patterning frames: 10.
    5. Weaving density: 2.9-40 threads/cm.
    6. Weft feeding: on a belt or clamping wheels.
    7. Sensors: weft, warp and earning thread.
    8. Weaving system with earning thread.
    9. Spring weft compensation system.
    10. Adjustable speed of feeding the earning thread.
    11. Drive: Boxer electric motor; 1.1 kW of power.
    12. Controls: start/stop/tip.
    13. Rubber clamps receiving the finished product.
    14. A lamp informing about the operation of the machine.
    15. Easy to remove protective covers.
    16. Machines adapted to the use of a system that collects dust generated during weaving.
    17. The machines are equipped with nozzles that extract dust from moving parts, which are helpful in the production of cotton tapes.
  3. Design And Capabilities
    1. Loom designed for the production of products with low and medium basis weight, flexible and non-flexible.
    2. The most versatile loom in the Muller range. It gives the possibility of producing a very wide range of assortment.
    3. It is perfect for the production of products using thin and thick types of yarns.
    4. Proven, reliable design.
    5. Possible conversion and extension options.
    6. Stable and compact construction, the loom takes up little space.
    7. Precise workmanship, ergonomic style, the use of the highest quality materials and Swiss precision make the machine highly reliable.
