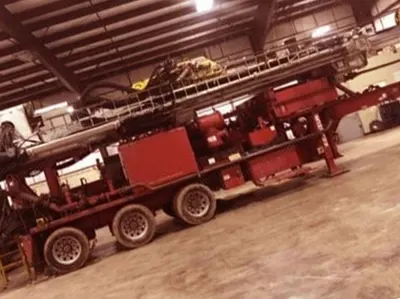

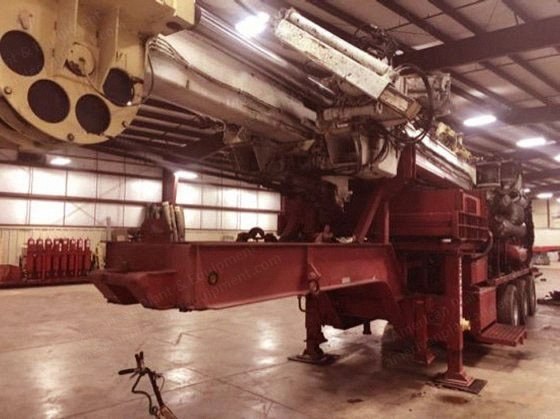

Schramm, TXD 200, 2013, 200,000 lbf Hoist Capacity, 760 BHP Deck Engine

Schramm, TXD 200, 2013, 200,000 lbf Hoist Capacity, 760 BHP Deck Engine Sold

Description

  1. Overview
    1. Hours: 34,889
    2. Condition: Used
    3. Year made: 2013
    4. Last well drilled: October 2019
  2. Deck Engine
    1. Detroit Diesel DDC/MTU 12V-2000TA DDEC
    2. 760 bhp (567 kW) @ 1800 rpm
    3. (2) 110 gal (415 L) fuel tanks
    4. Electric start
  3. Cooling
    1. (2) core side-by-side heat exchanger with variable speed cooling fan
    2. 130°F (54°C) ambient design temperature
  4. Mast
    1. Telescoping mast design permits long head travel and working height, yet short overall length in transport position
    2. Hydraulically operated adjustable mast feet and slip box
    3. Tilting top head drive
  5. Top Head Drive
    1. Heavy duty single reduction gearbox with 4 single speed hydraulic motors
    2. Infinitely variable rotation speed via HRC control
    3. Torque: 0-90 rpm @ 17,750 lbf-ft
    4. Rotation speed: 0-90 rpm
    5. Maximum operating pressure: 5,000 psi
  6. Feed System
    1. 50 ft (15.24 m) head travel
    2. 200,000 lbf (890 kN) hoist capacity
    3. 100 ft/min (30.5 m/min) hoist speed
    4. 32,000 lbf (142 kN) pulldown
    5. 200 ft/min (61 m/min) pulldown speed
  7. Drill Table
    1. Table opening: 30. (768 mm) diameter with table retracted
    2. Hydraulically retractable slip box
    3. 12' KB
