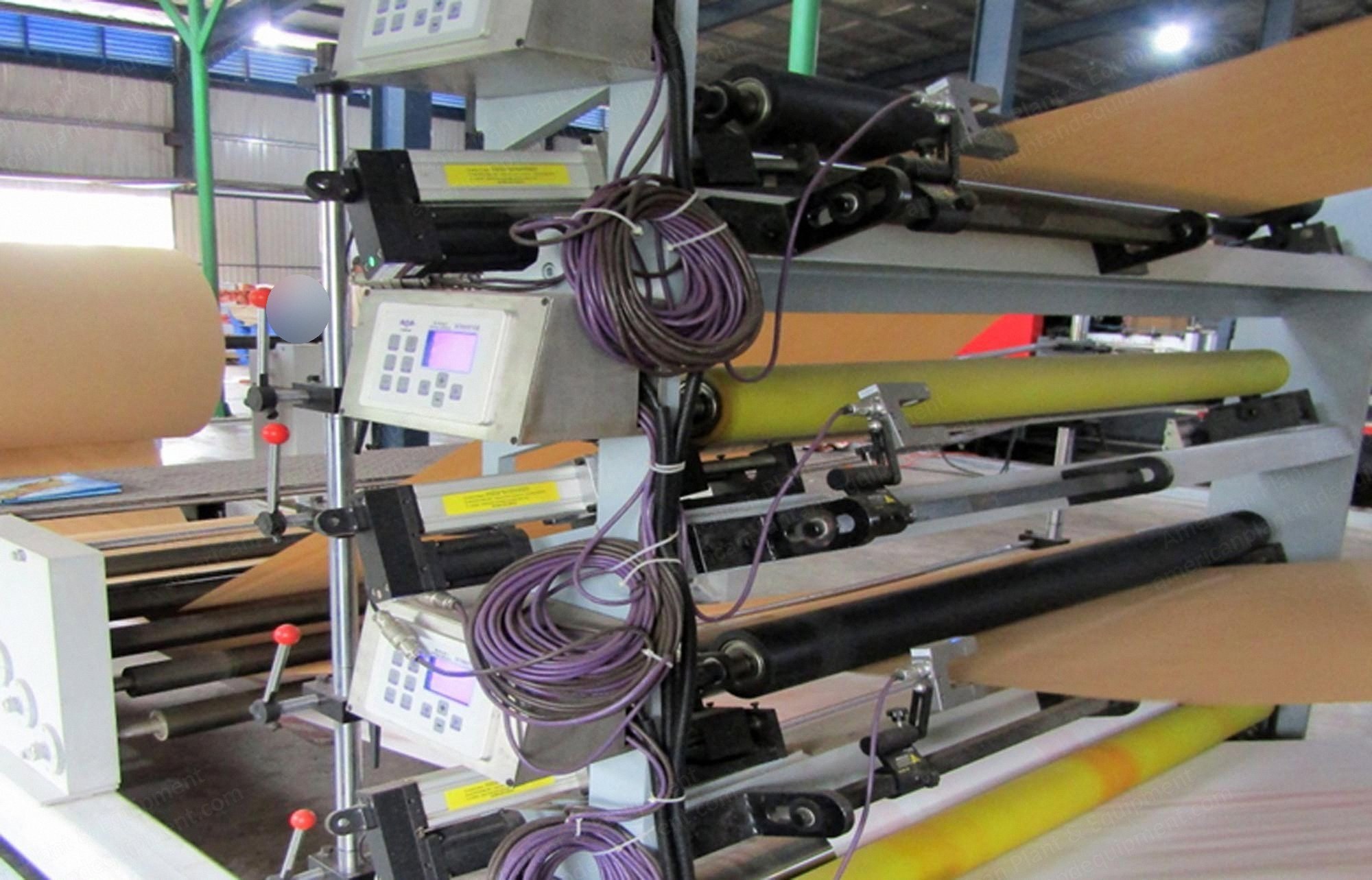

Tecon, ZT9804 & HD4913, 2019, Tuber and Bottomer Line, 4 Colors, 150 bags/min

Tecon, ZT9804 & HD4913, 2019, Tuber and Bottomer Line, 4 Colors, 150 bags/min

Description

  1. Overview
    1. Year 2019
    2. Zt9804 tuber machine, engineered specifically for crafting cement paper bags, plays a pivotal role in the production process.
    3. Bottomer machine, model no. Hd4913, seamlessly integrates into the cement paper bag production process, finalizing bags with precision and efficiency.

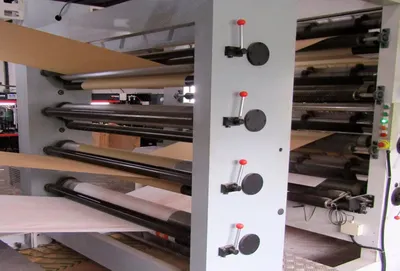

  2. Tuber Machine - Zt9804 Specifications
    1. Designed for cement paper bags.
    2. Bag length: adjustable within the range of 520mm to 880mm.
    3. Tube width: flexible, accommodating dimensions from 420mm to 620mm.

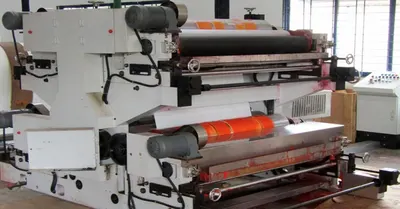

    4. Printing capacity: capable of printing lengths from 640mm to 1005mm and widths up to 1300mm using water-based inks in four colors.
    5. Production efficiency: with a maximum speed of 150 bags per minute, the Zt9804 ensures high throughput.
    6. Paper layers: supports 2 to 4 paper layers, augmented by an additional layer of pp film for durability.
    7. Gluing mechanism: utilizes cold-modified potato starch glue for strong adhesion.
    8. Bag specification: length of bag tube (mm) is cutoff length + 40.
    9. Cutoff length (mm): 640 to 1005mm (±4) in 29 grades, each grade 12.5.
    10. Tube width (mm): 420 to 620mm (no grade adjustment).
    11. Printing specification: printing length (mm) 640 to 1005mm, printing width (mm) 1300mm.
    12. Printing ink: water based.
    13. Color category: four colors overprint.
    14. Thickness of printing plate (mm): 4mm.
    15. Paper layer: (2 to 4) + 1 layer of pp film.
    16. Production efficiency: bag/min - 150.
    17. Type of glue: cold modified potato starch.
    18. Reel spew: width of reel (mm) 860 to 1260mm, reel diameter (mm) 1300mm, diameter of reel core (mm) f75 to f80mm.
    19. Main motor: 1tl0002-2ac5, 22kw.
    20. Delta belt of main motor: c-type, length 2500mm, quantity 6.
    21. Total power (kw): 30.9.
    22. Weight (m.t): 30.5.
    23. Outline dimensions (meter): 34300mm x 2400mm x 2700mm (length x width x height).

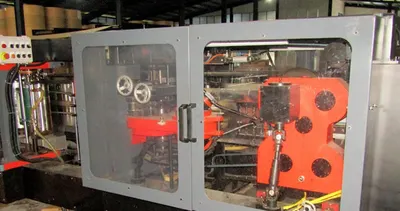

  3. Bottomer Machine - Hd4913 Specifications
    1. Designed for cement paper bags.
    2. Bag length: adjustable between 520mm and 880mm.
    3. Bag width: accommodates widths from 420mm to 620mm.
    4. Bottom width: offers flexibility with widths ranging from 90mm to 130mm.
    5. Valve strip: supports valve strips with lengths and widths varying from 100mm to 250mm and 120mm to 170mm, respectively.
    6. Vacuum system: equipped with a high-performance vacuum pump with a suction rate of 250m^3/h.
    7. Production speed: operates at a normal speed of 120 bags per minute, with a maximum capacity of 140 bags per minute, contingent upon paper quality, number of ply, and operator expertise.
    8. Adjustability: manual adjustment for bag net length, facilitating customization.
    9. Maintenance: incorporates a new vacuum gearbox, replaced in 2020, ensuring optimal performance.
    10. Type of bags to make: tube length (l2) (mm) 670 to 1035mm, bag length (l) (mm) 520 to 880mm, bag net length (l1) (mm) 420 to 780mm, bag width (b) (mm) 420 to 620mm, bottom width (b1) (mm) 90 to 130mm, the outspread bottom width (mm) 210 to 380mm, valve strip length x width (mm) 100250 x 120170mm, the width for joins (mm) 60% x b1.
    11. Other data: the vacuum pump (m3/h) 250, the productivity (bags/per min) 100 to 140, the pace of product line (mm) 685.8mm, adjusting method of bag net length manual, vacuum gear box new replaced in 2020.
    12. The size of machine (l x w x h): 21500mm x 1800mm x 1800mm.
    13. The gross weight (m.t): 22.7.
    14. The total power (kw): 33.
  4. Condition And Availability
    1. Condition: very good.
    2. Availability: immediately.
  5. Specifications
    1. Weight: 22700
