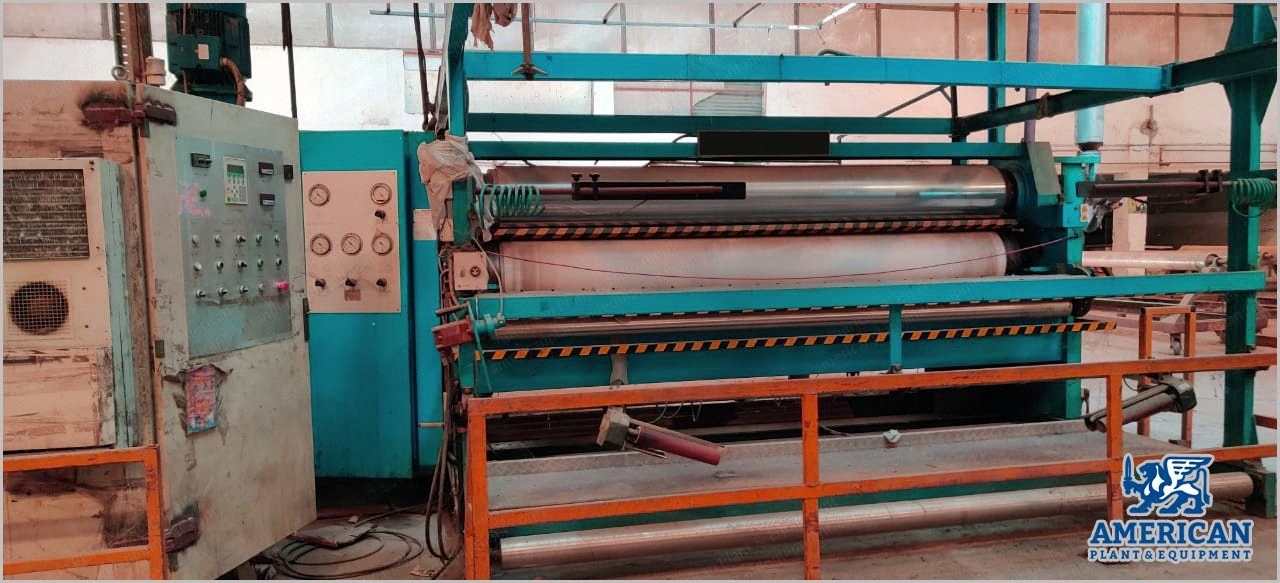

Ramisch Guarneri, 3-Roller Calender, 2006, 3400mm Working Width, Nipco Roller, 300 N/mm Pressure

Ramisch Guarneri, 3-Roller Calender, 2006, 3400mm Working Width, Nipco Roller, 300 N/mm Pressure Sold

Description

  1. Overview
    1. Brand: Ramisch Guarneri
    2. Year: 2006
    3. Roller width: 3600 mm
    4. Working width: 3400 mm
    5. Rollers type: Metal chrome heated by thermic oil
    6. Polamide/recalon roll
    7. Recalon roll
    8. E&L pneumatic cloth guiders, KF20
    9. Hydraulic pressure
    10. Metal detector
    11. Seam detector
    12. Exit with batcher
    13. 415 V, 50 Hz, 3 phases
    14. Connected power: 380 V, 50 Hz

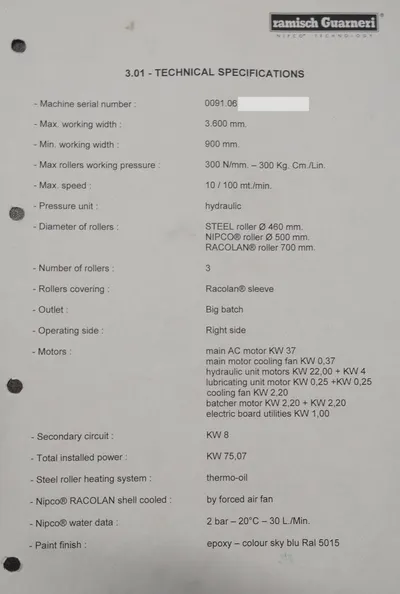

  2. Technical Specifications
    1. Max. working width: 3600 mm
    2. Min. working width: 900 mm
    3. Max rollers working pressure: 300 N/mm - 300 kg cm/lin
    4. Max. speed: 10/100 m/min
    5. Pressure unit: Hydraulic
    6. Diameter of rollers: Steel roller Ø 460 mm
    7. Nipco® roller Ø 500 mm
    8. Racolan® roller 700 mm
    9. Number of rollers: 3
    10. Rollers covering: Racolan® sleeve
    11. Outlet: Big batch
    12. Operating side: Right side
    13. Motors: Main AC motor kW 37
    14. Main motor cooling fan kW 0.37
    15. Hydraulic unit motors kW 22.00 + kW 4
    16. Lubricating unit motor kW 0.25 + kW 0.25
    17. Cooling fan kW 2.20
    18. Batcher motor kW 2.20 + kW 2.20
    19. Electric board utilities kW 1.00
    20. Secondary circuit: kW 8
    21. Total installed power: kW 75.07
    22. Steel roller heating system: Thermo-oil
    23. Nipco® Racolan shell cooled: By forced air fan
    24. Nipco® water data: 2 bar - 20 cc - 30 L/min
    25. Paint finish: Epoxy - colour sky blu RAL 5015
  3. Condition
    1. Excellent condition
    2. Mill machine was producing home textiles
    3. Machine was stopped in 2019
    4. Machine was dismantled and is now stored in a warehouse
    5. Inspection possible during weekdays
  4. Specifications
    1. Serial number: 0091.06
