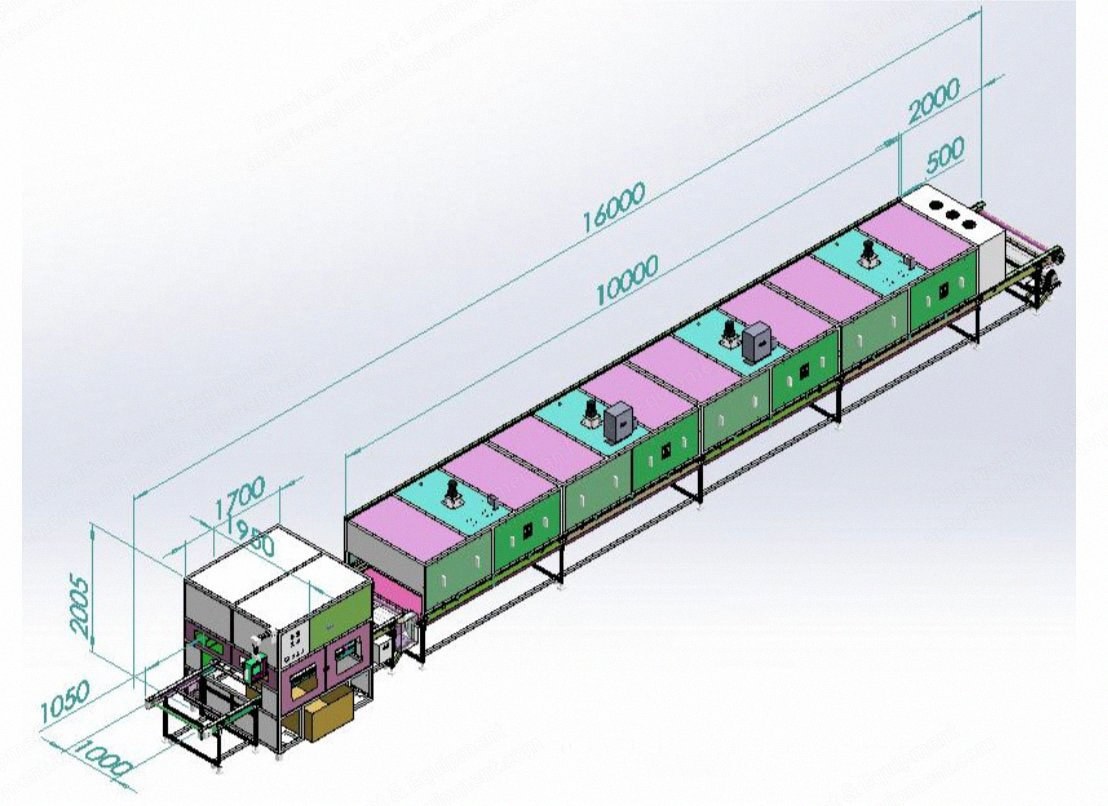

NovaStar, CG182, Full Automatic Coater Line, 305mm x 305mm, 208V/480V (New)

NovaStar, CG182, Full Automatic Coater Line, 305mm x 305mm, 208V/480V

Description

  1. Overview
    1. Coater for glass substrate
    2. Coats 12" x 12" (305mm x 305mm) glass substrate

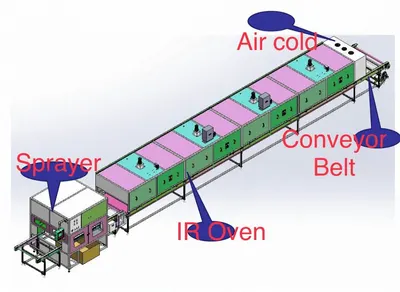

    3. Full automatic coater line (spray machine with oven)

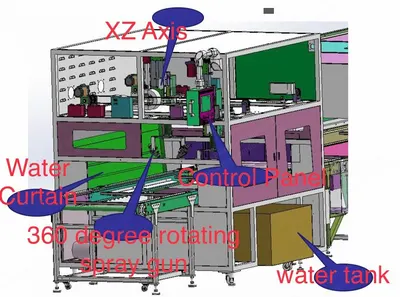

  2. Spray Machine (Coater)
    1. Spray machine size: L 4000mm x W 1950mm x H 2050mm
    2. Working size (spray max size): W 900mm x L 2000mm
    3. Machine speed output: 0-8 m/min, adjustable
    4. Power: 208V/480V, 3-phase 4 wire system, 50/60Hz
    5. Water: running water, P=0.3 MPa
    6. Compressed air: P>=0.6 MPa
    7. High precision guide rail: 2 sets
    8. Spray gun servo motor: 2 sets
    9. Dust-free spray booth: L 1700mm x W 1950mm x H 1000mm

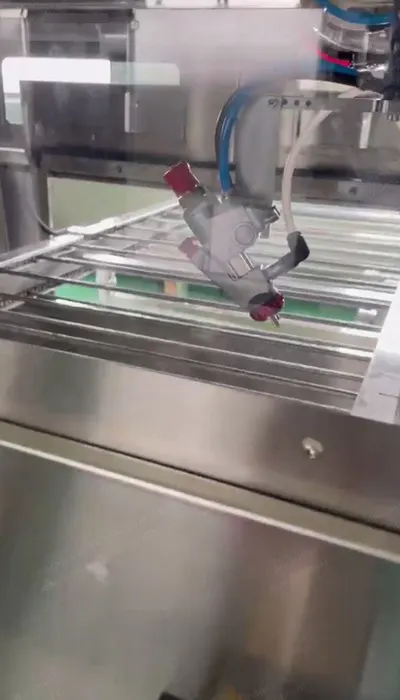

    10. Spray paint gun: 4 pcs (WRA spray gun)
    11. Spray gun fixed support: aluminum
    12. Support paint system: 2 sets (Graco 308 US)
    13. PLC control: 1 set
    14. Contractors and switch: Schneider
    15. Variable-frequency drive system: 1 set
    16. Water pump: stainless steel water pump
    17. Power: 1kW power motor with 80 type 1:60 dental-box
    18. Machine material: 201 stainless steel
    19. Warranty policy: 12 months

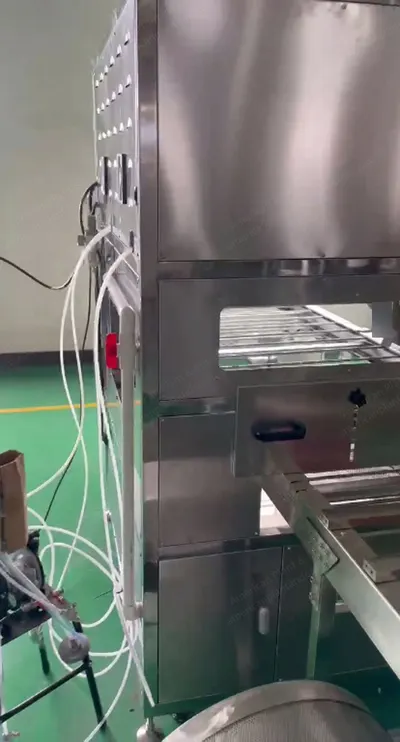

  3. Oven Machine (Heated Stage)
    1. Oven size: L 12000mm x W 1200mm x H 1500mm
    2. Oven working size (max): L 12000mm x W 900mm
    3. Oven area size (max): L 8000mm x W 900mm
    4. Automatic temperature system: RT to 100 degrees, adjustable
    5. Material: 201 stainless steel
    6. Foots: 40 x 80mm slab, adjustable

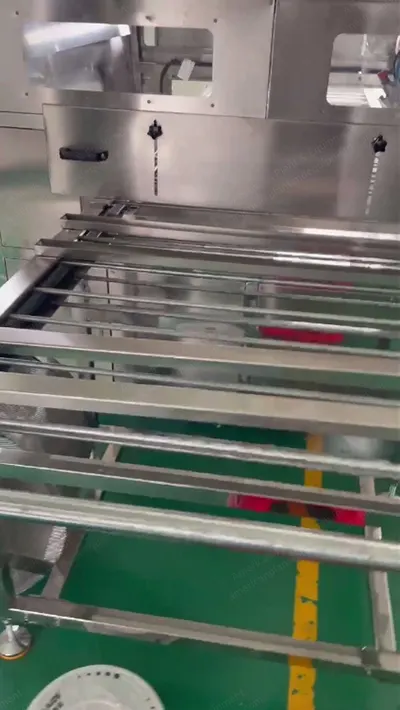

    7. Conveyer belt: stainless steel, with the grid shape of "Λ" with cylinder
    8. Power: 2kW power motor
    9. Speed of output: 0-8 m/min (adjustable)
    10. Variable-frequency drive system
    11. IR heater: 24kW
    12. IR oven: 4 pcs
    13. Air cold: 1 set (L 1200mm x W 500mm)
    14. Metered deposition: 1 set
    15. Power: 208V/480V, 3-phase 4 wire system, 50/60Hz
    16. Warranty policy: 12 months
