NovaStar, MS509, Dry Type Isolation Transformer, 50kVA, 460V/400V to 208V/110V, Copper Winding, IP44 (New)

NovaStar, MS509, Dry Type Isolation Transformer, 50kVA, 460V/400V to 208V/110V, Copper Winding, IP44

Description

  1. Overview
    1. Inversable dry type isolation transformer (step down and step up), 50 kva
    2. Capacity: 50 kva
    3. Cooling: ANAF
    4. Winding: copper
    5. Enclosure: IP44
  2. Step Down Condition
    1. Input voltage: 460 V, 400 V
    2. Star connection, 2 tapping
    3. Max regulation: 10%
    4. Output voltage: 208/110 V, star connection
  3. Step Up Condition
    1. Input voltage: 208/110 V
    2. Star connection
    3. Max regulation: 15%
    4. Output voltage: 460 V, 400 V, star connection, 2 tapping

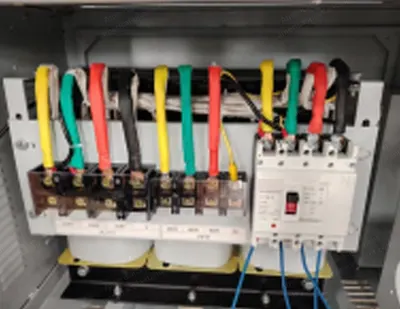

  4. Cable Input Terminal
    1. Quantity: 3 pcs (3 for 450, 3 for 400, 1 for zero, 1 for earth)
    2. Unit size: 100 A, 35 mm
    3. Output: no terminal but with one output breaker, 4 pole MCB
  5. Shipping Frame Specification
    1. Galvanized cool rolling plate, 1 mm
    2. With rollers, foot brakes, lifting lugs, forklift feet
    3. CE certificate and logo on the name plate

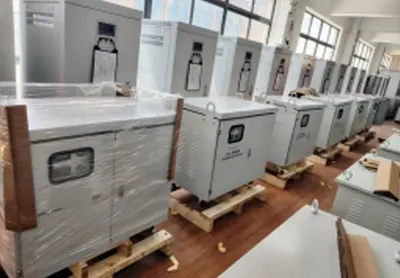

  6. Quantity
    1. 12 units available
